Additional Pictures
This Lloyd's Accumatic 30
(Model EH-9036, Version 255) was manufactured
in August 1974 in Taiwan. |

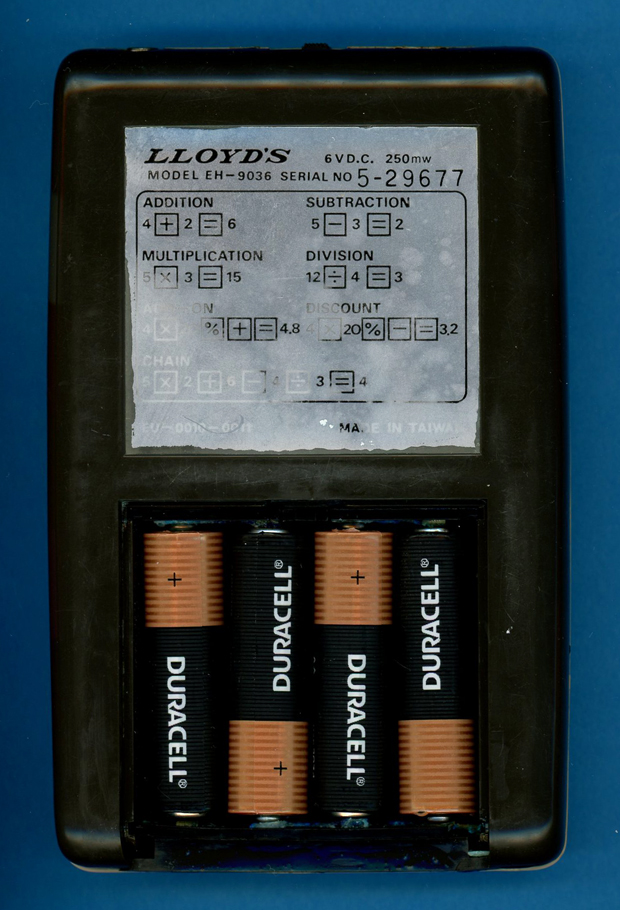

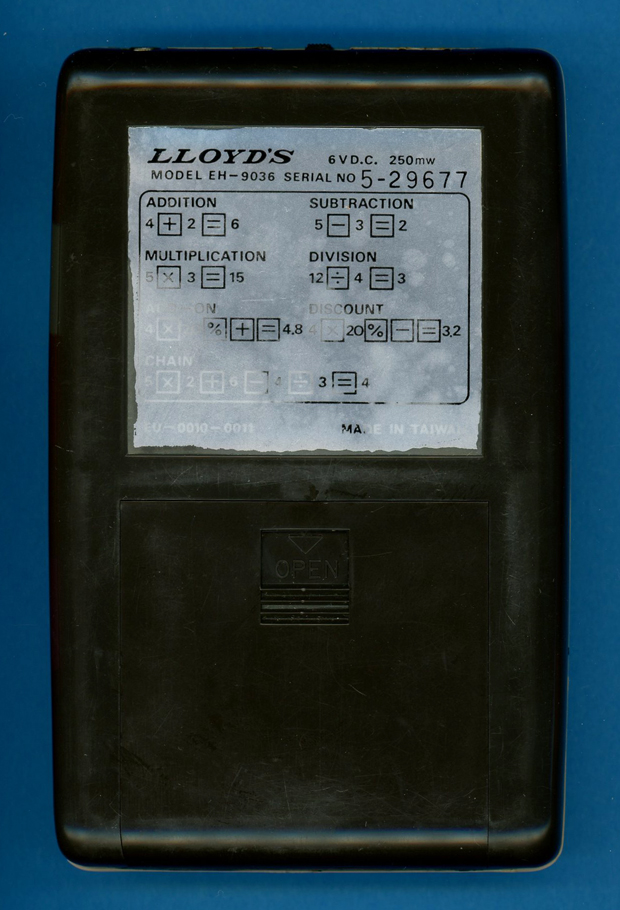

The Lloyd's Accumatic 30 is powered by four disposable 1.5 Volt batteries. |

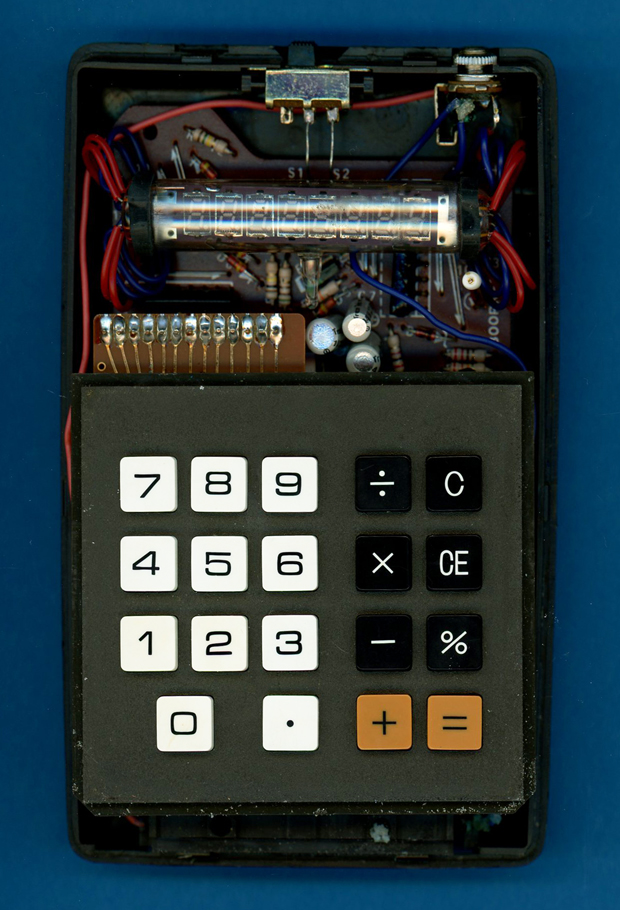

The Lloyd's Accumatic 30
calculator with the frontside of its housing removed. |

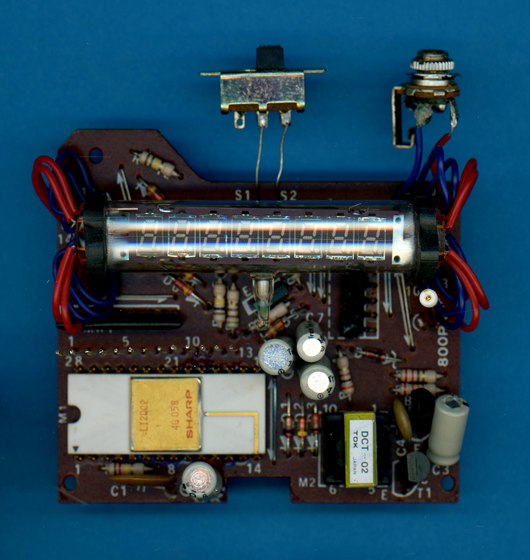

| The printed circuit board
(PCB) of the Lloyd's Accumatic 30 is centered around a Sharp LI2002 single-chip calculator circuit.  |

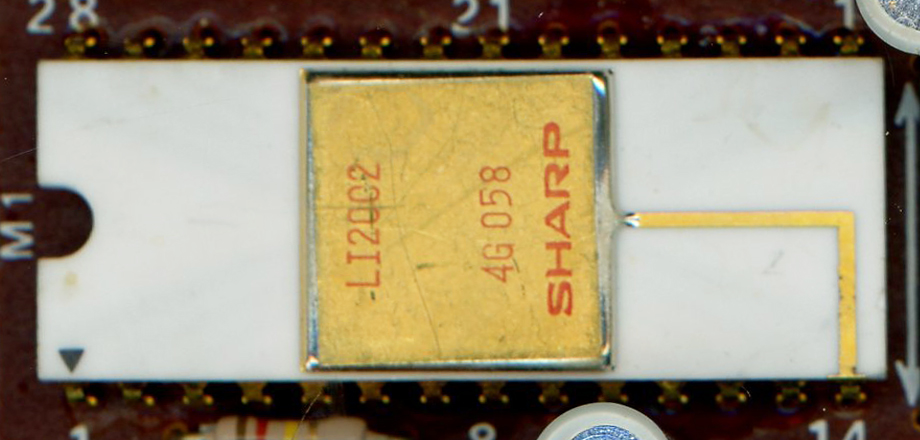

Close-up view
of the Sharp LI2002 single-chip calculator circuit. |

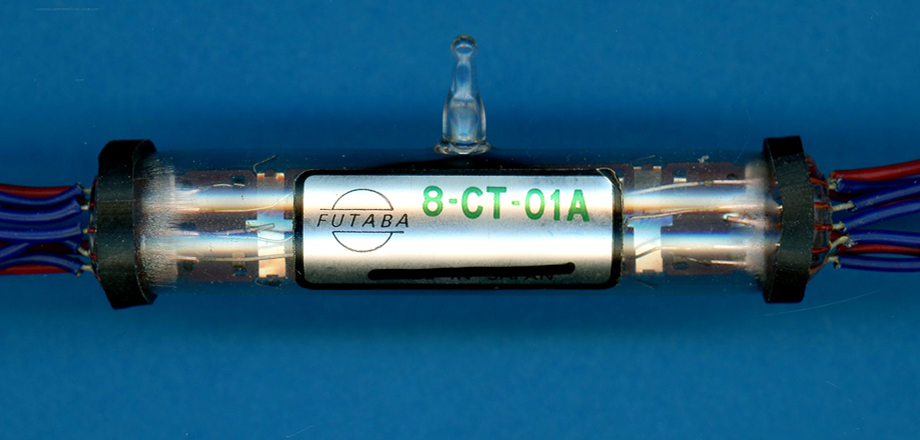

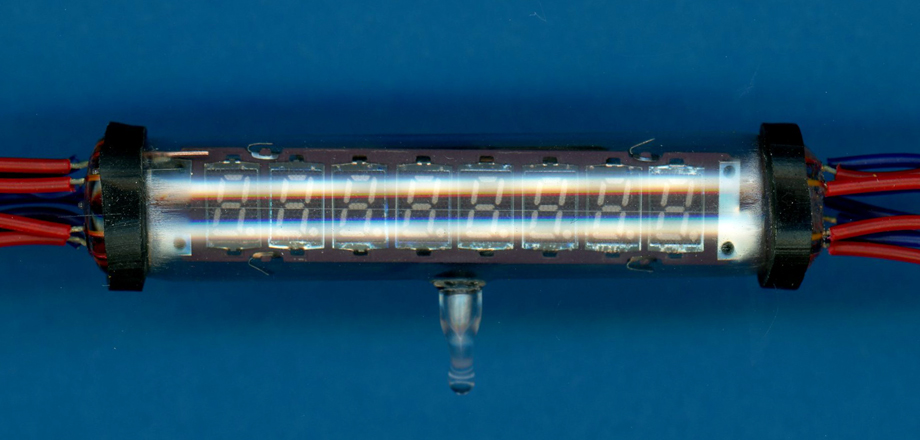

Close-up view of the
FUTABA 8-CT-01A Vacuum Fluorescent Display (VFD).  |

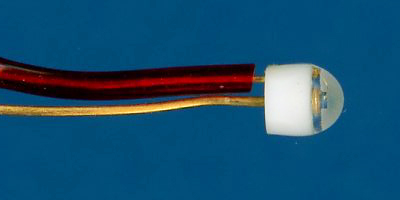

Close-up view of the minus "dot" LED. |

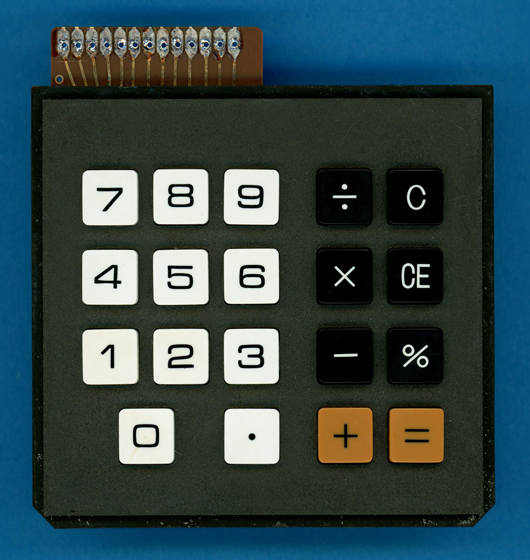

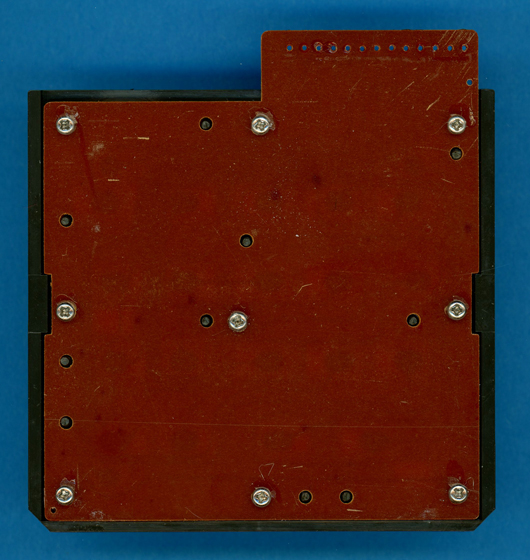

Front- and backside of the
keyboard assembly of the Lloyd's Accumatic 30 calculator.  |
