Additional Pictures

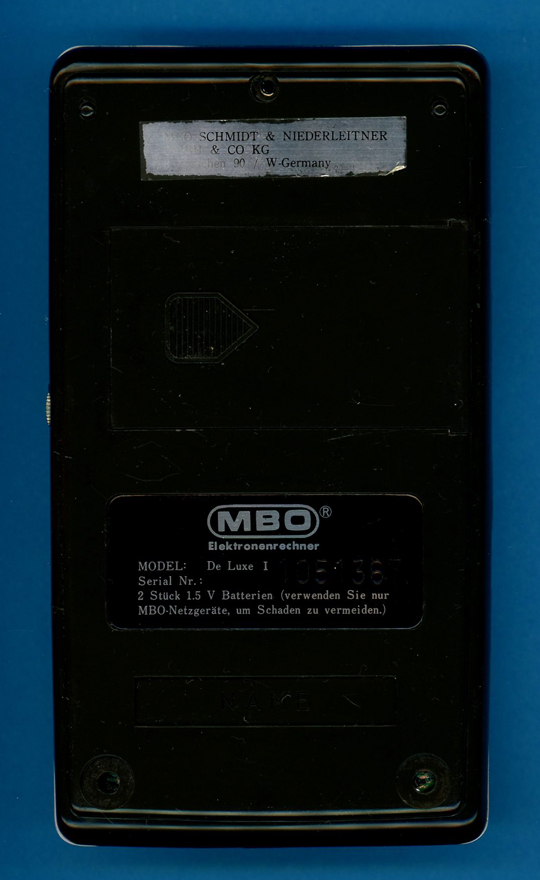

This MBO de Luxe I was manufactured
in December 1975 in Japan. |

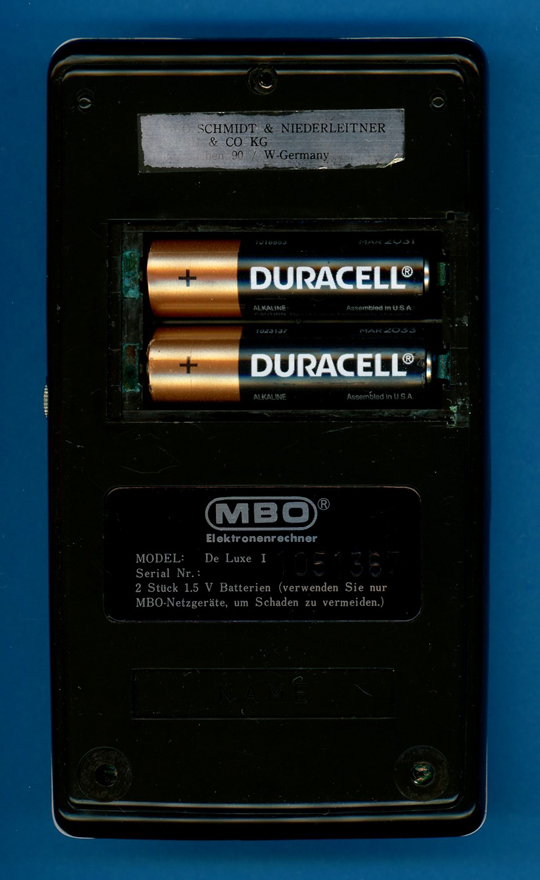

The MBO de Luxe I is powered by
two disposable 1.5 Volt batteries. |

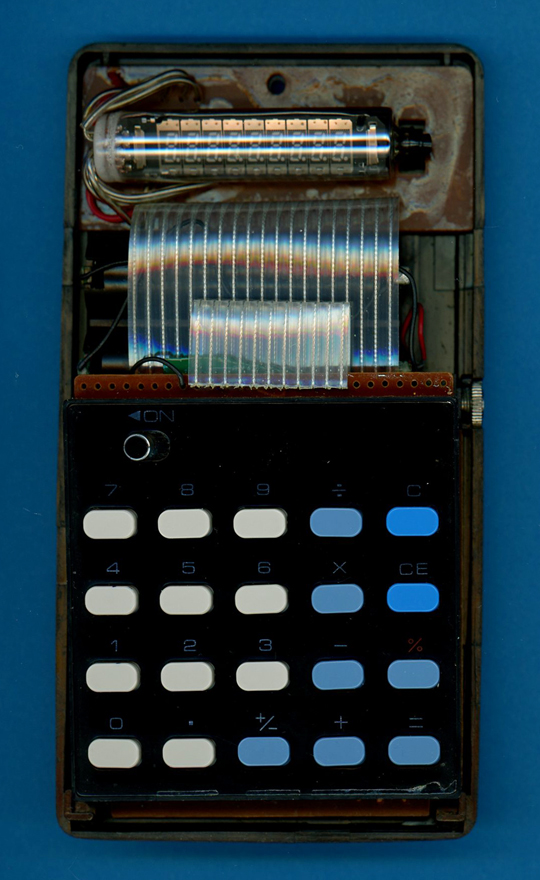

The MBO
de Luxe I calculator with the frontside of its housing removed. |

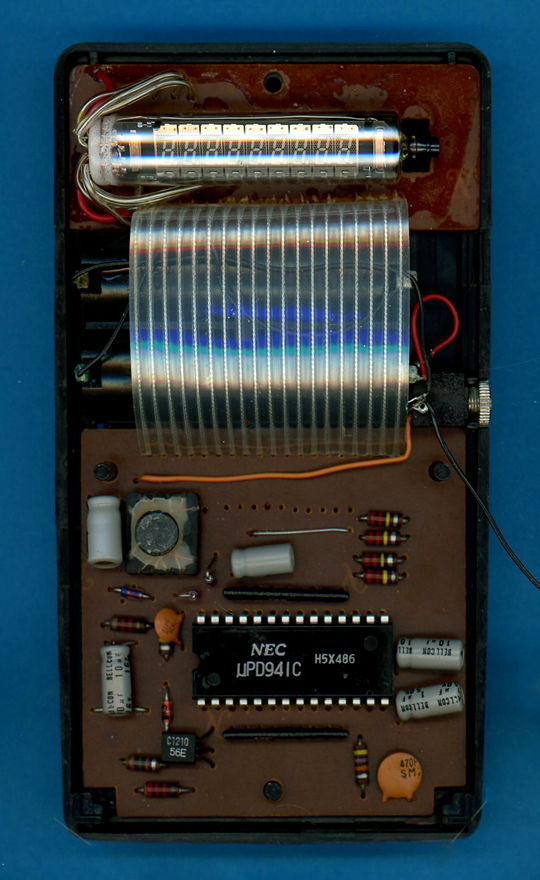

| The printed circuit board
(PCB) of the MBO de Luxe I is centered around a NEC µPD941 single-chip calculator circuit.  |
Close-up view
of the NEC µPD941 single-chip calculator circuit. |

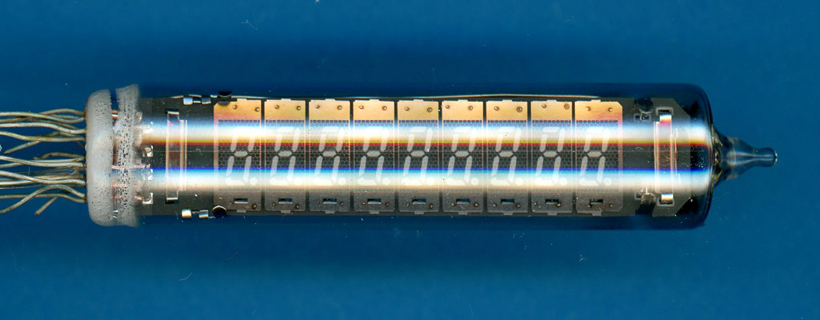

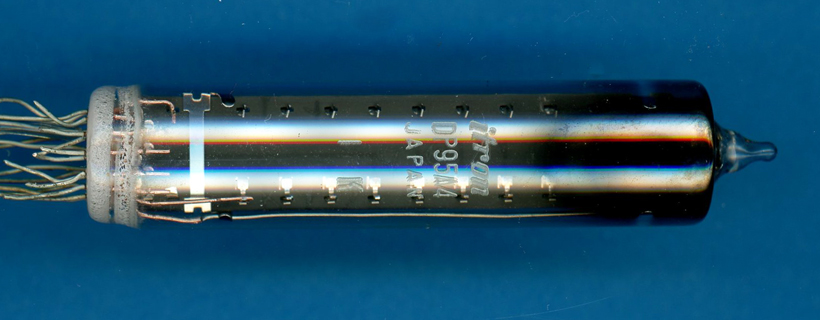

Close-up view of the
ITRON DP95A4 Vacuum Fluorescent Display (VFD).  |

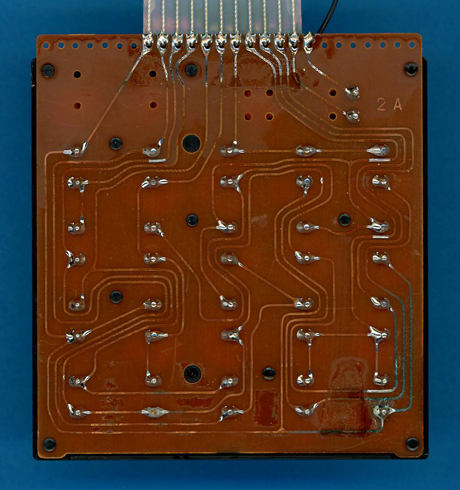

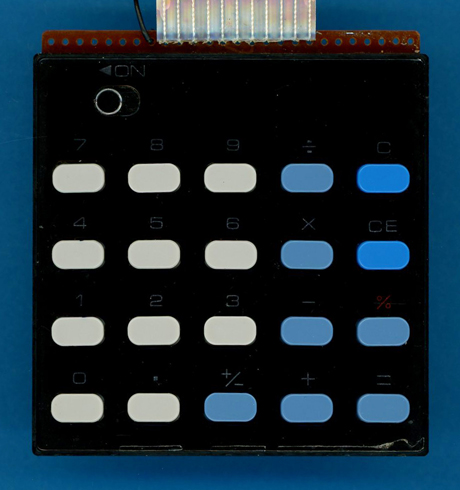

Front- and backside of the
keyboard assembly of the MBO de Luxe I calculator.  |
