Additional Pictures
This MBO de Luxe II was manufactured
in July 1975 in Japan. |

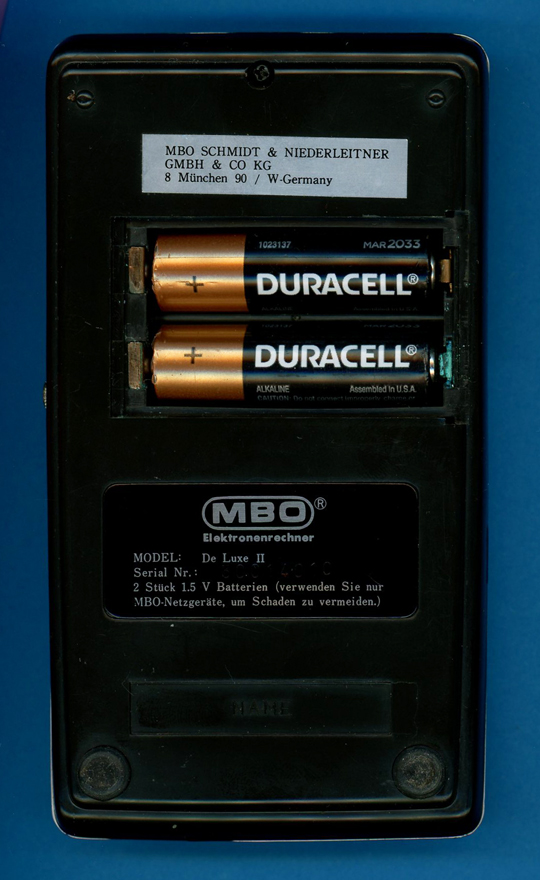

The MBO de Luxe II is powered by
two disposable 1.5 Volt batteries. |

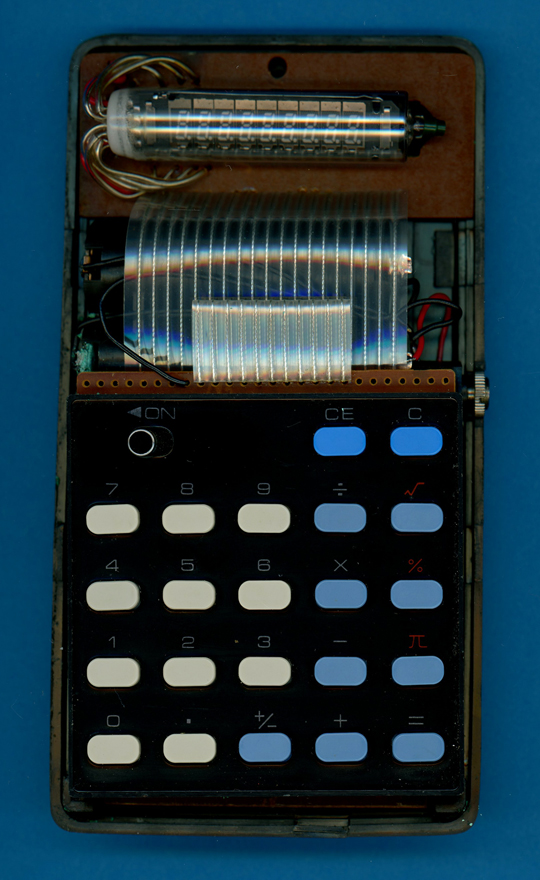

The MBO
de Luxe II calculator with the frontside of its housing removed. |

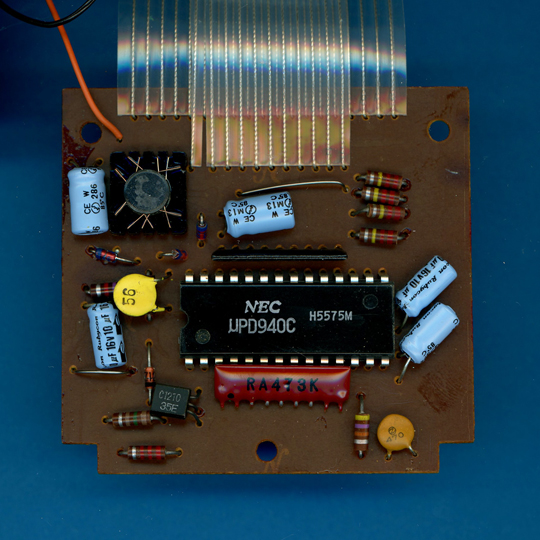

| The printed circuit board
(PCB) of the MBO de Luxe II is centered around a NEC µPD940 single-chip calculator circuit.  |
Close-up view
of the NEC µPD940 single-chip calculator circuit. |

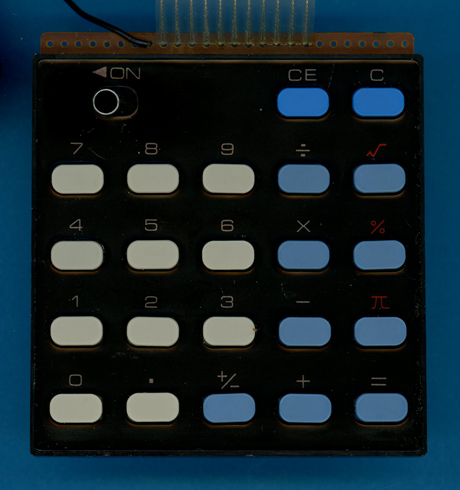

Front- and backside of the
keyboard assembly of the MBO de Luxe II calculator. |
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, April 5, 2025. No reprints without written permission.
