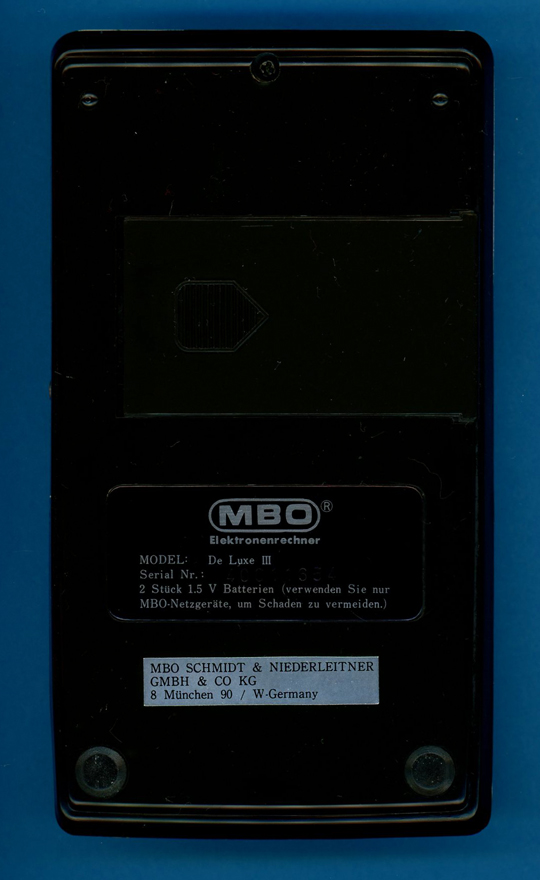

This MBO de Luxe III
(Version 1) was manufactured
in May 1975 in Japan. |

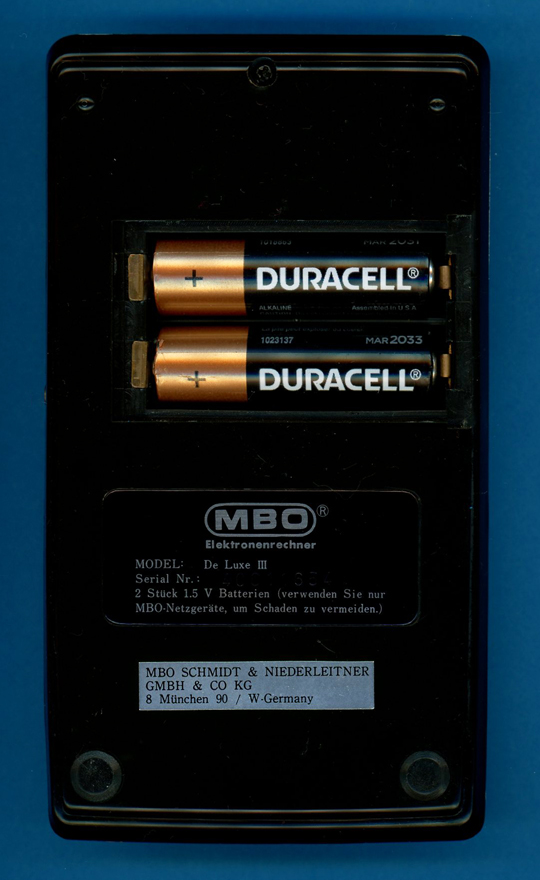

The MBO de Luxe III
(Version 1) is powered by
two disposable 1.5 Volt batteries. |

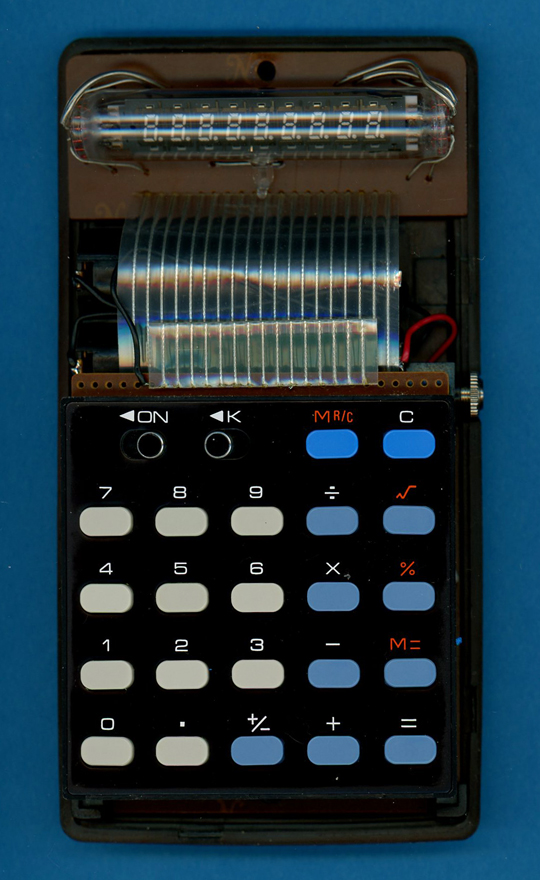

The MBO
de Luxe III (Version 1) calculator with the frontside of its housing removed. |

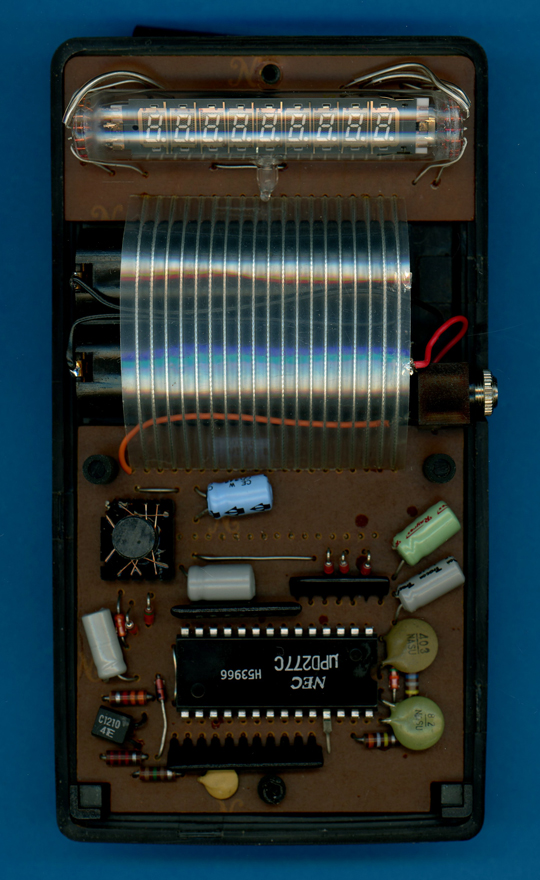

| The printed circuit board
(PCB) of the MBO de Luxe III (Version 1) is centered around a NEC µPD277 single-chip calculator circuit.  |

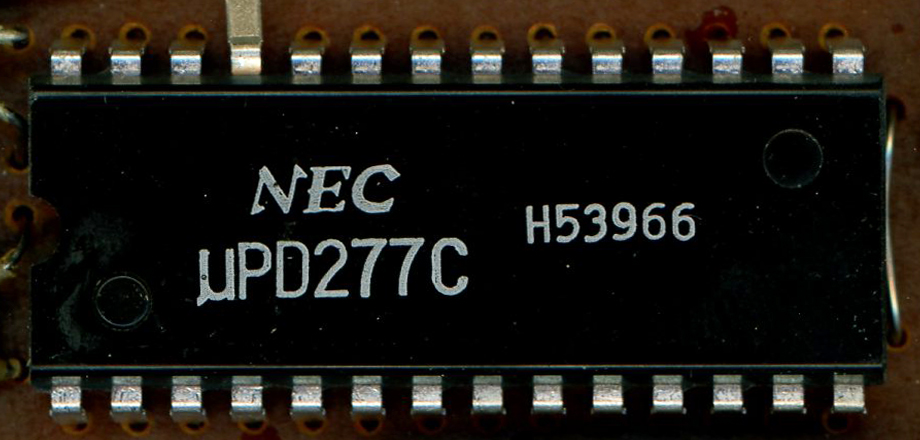

Close-up view
of the NEC µPD277 single-chip calculator circuit. |
Close-up view of the
NEC LD8122 Vacuum Fluorescent Display (VFD).  |

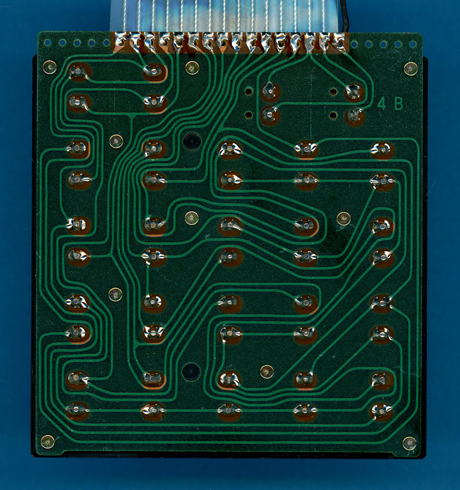

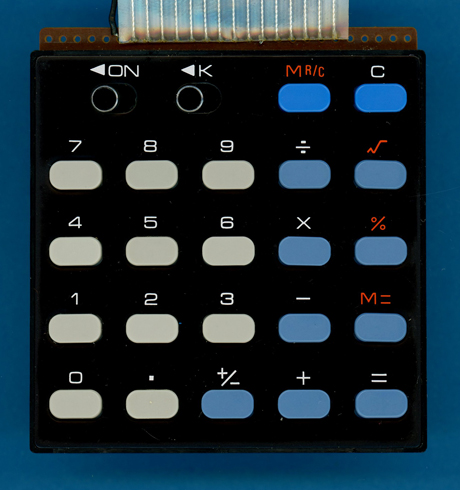

Front- and backside of the
keyboard assembly of the MBO de Luxe III (Version
1) calculator.  |
