Additional Pictures

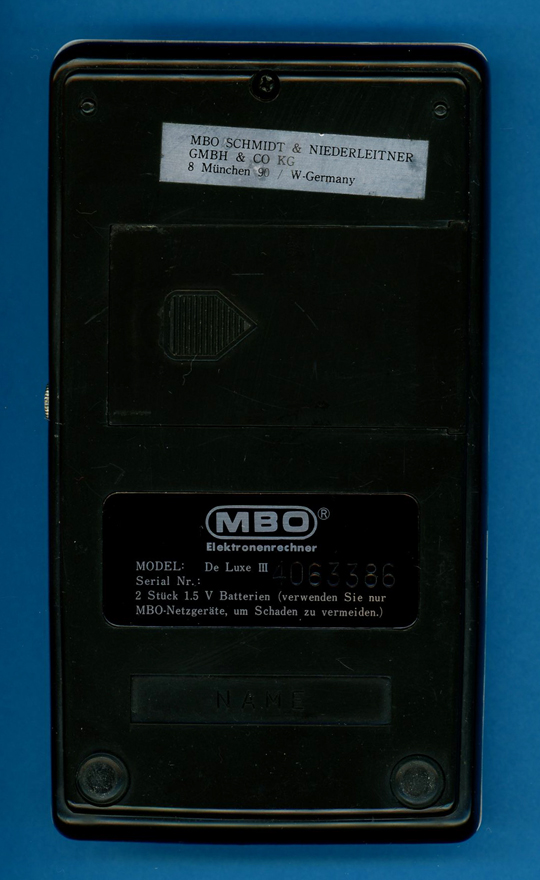

This MBO de Luxe III
(Version 2) was manufactured
in October 1975 in Japan. |

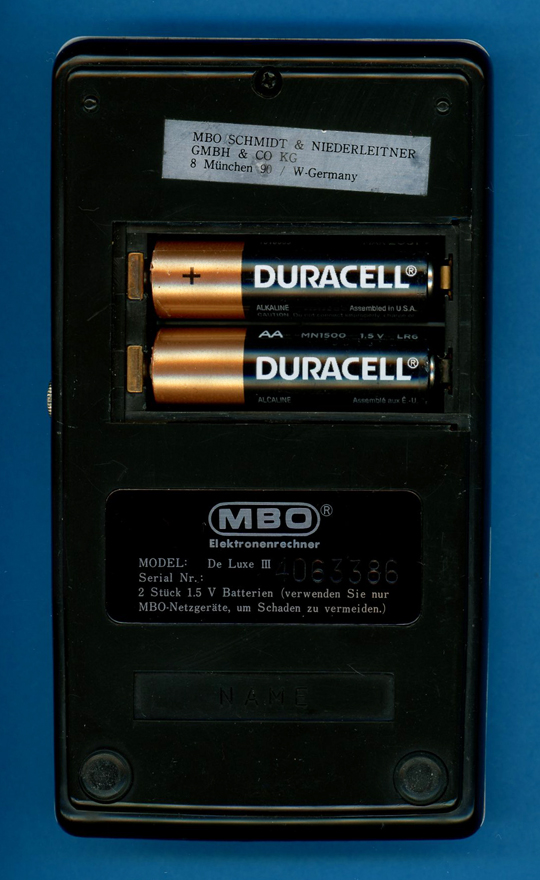

The MBO de Luxe III
(Version 2) is powered by
two disposable 1.5 Volt batteries. |

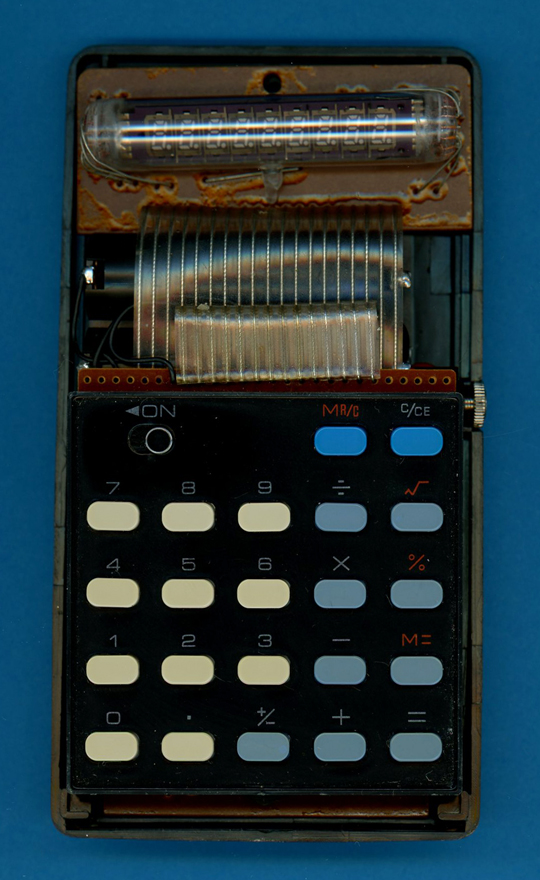

The MBO
de Luxe III (Version 2) calculator with the frontside of its housing removed. |

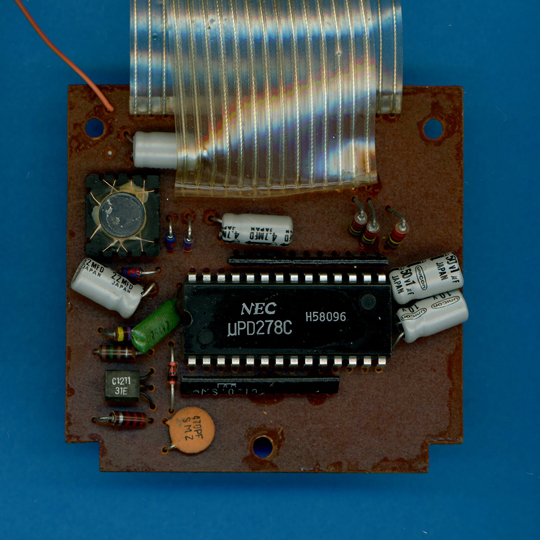

| The printed circuit board
(PCB) of the MBO de Luxe III (Version 2) is centered around a NEC µPD278 single-chip calculator circuit.  |

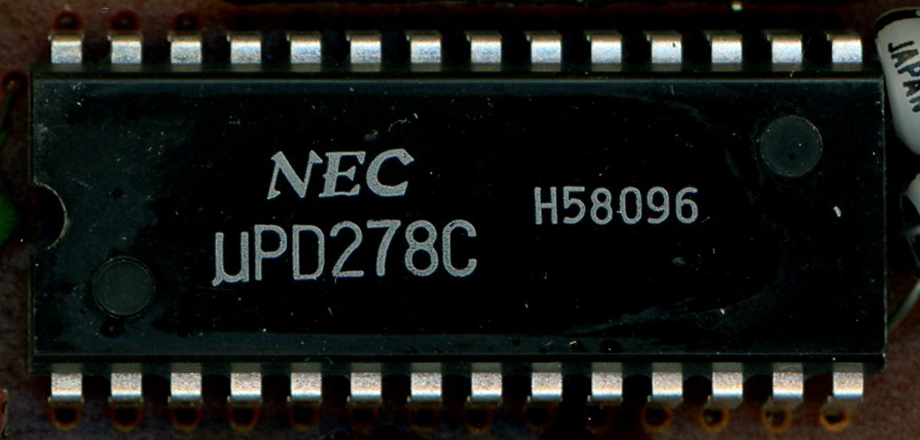

Close-up view
of the NEC µPD278 single-chip calculator circuit. |

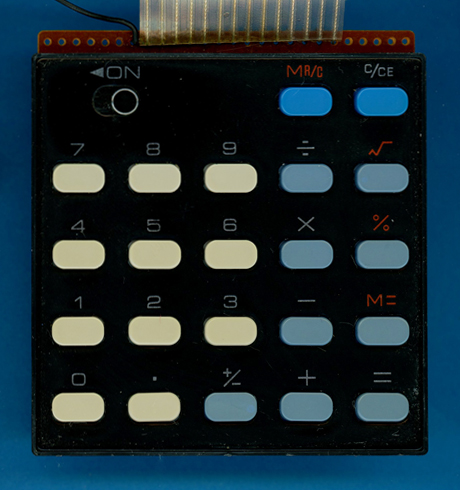

Front- and backside of the
keyboard assembly of the MBO de Luxe III (Version
2) calculator. |
