Additional Pictures

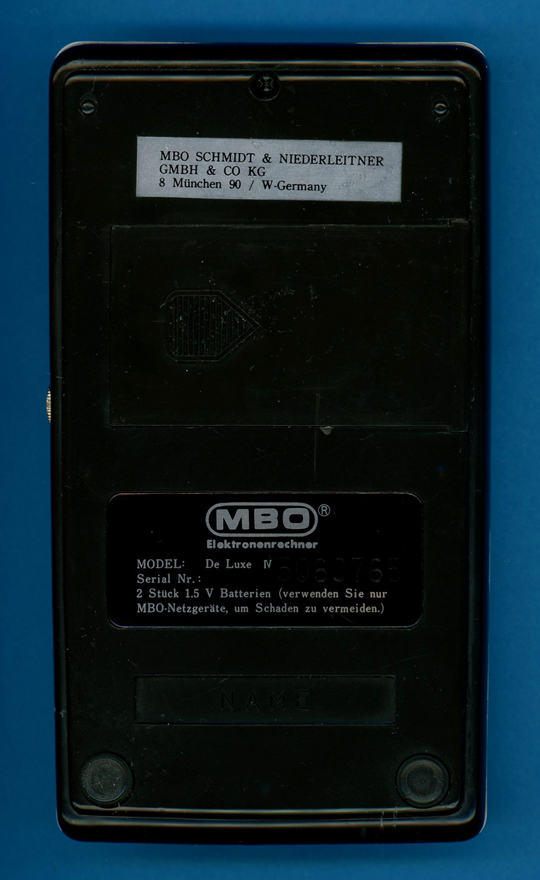

This MBO de Luxe IV was manufactured
in December 1975 in Japan. |

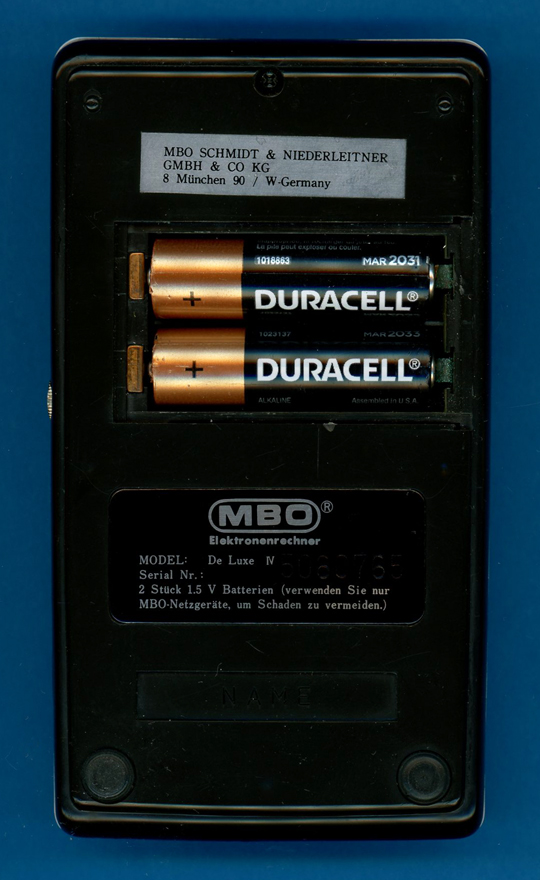

The MBO de Luxe IV is powered by
two disposable 1.5 Volt batteries. |

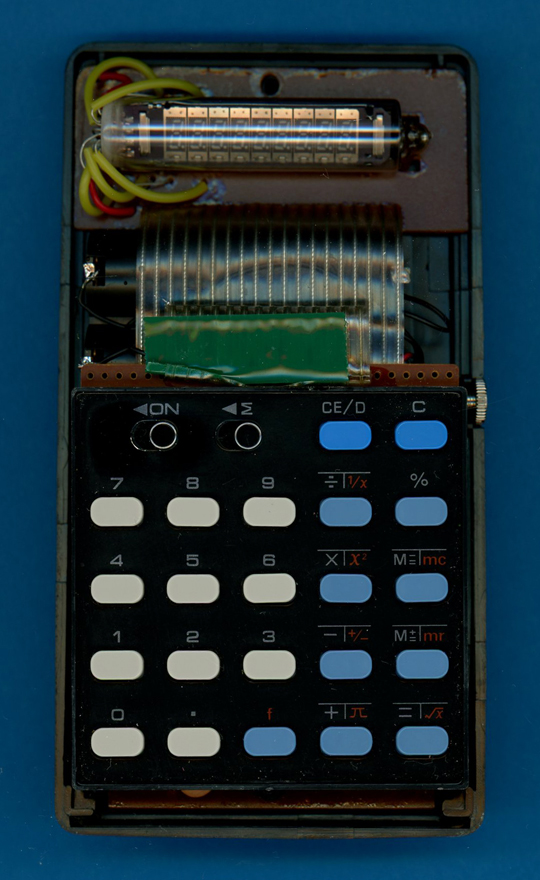

The MBO
de Luxe IV calculator with the frontside of its housing removed. |

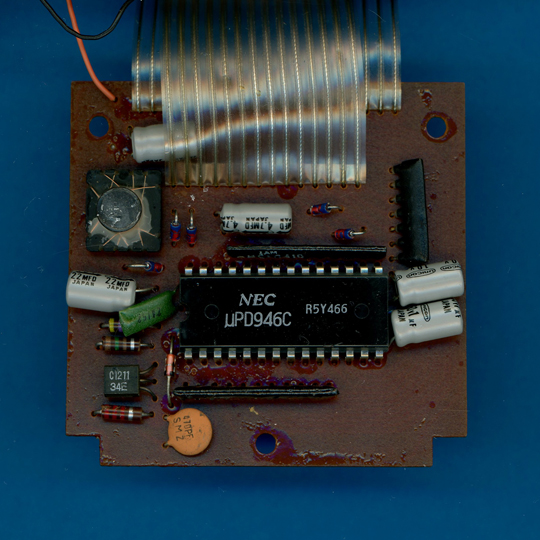

| The printed circuit board
(PCB) of the MBO de Luxe IV is centered around a NEC µPD946 single-chip calculator circuit.  |

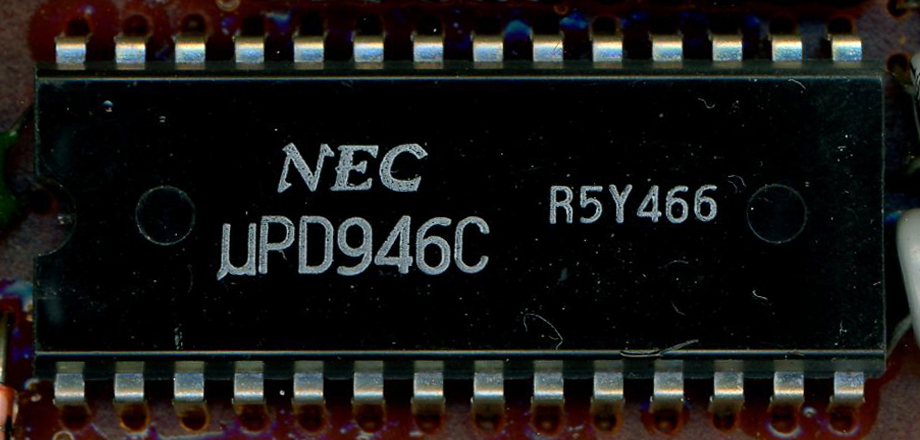

Close-up view
of the NEC µPD946 single-chip calculator circuit. |

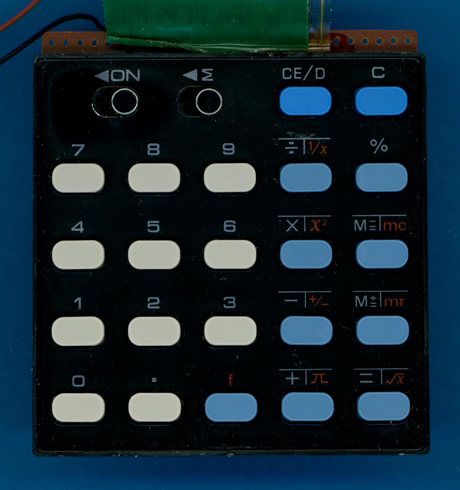

Front- and backside of the
keyboard assembly of the MBO de Luxe IV calculator. |
