Additional Pictures

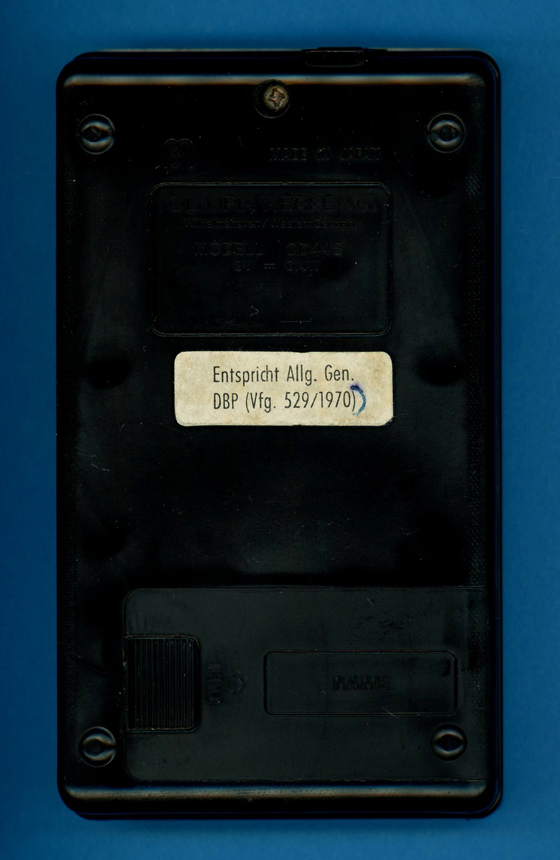

This Olympia CD44S was manufactured
in March 1976 by Matsushita Electric Industrial Co. in Japan. |

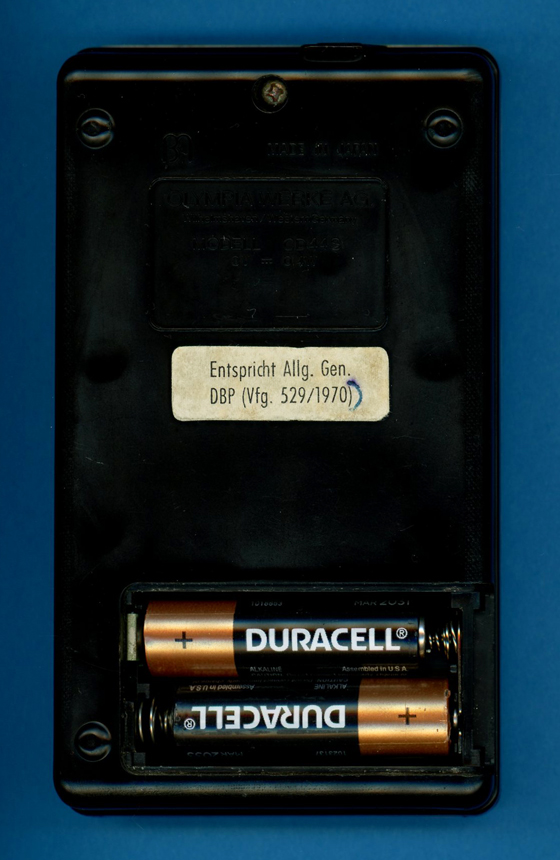

The Olympia CD44S is powered by
two disposable 1.5 Volt batteries. |

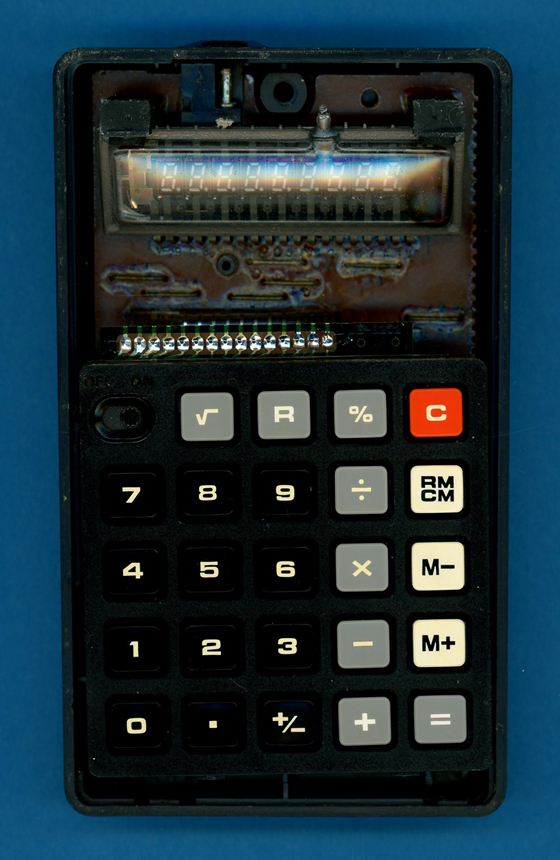

The
Olympia CD44S calculator with the frontside of its housing removed. |
| The printed circuit board
(PCB) of the Olympia CD44S is centered around a NEC µPD278 single-chip calculator circuit.  |

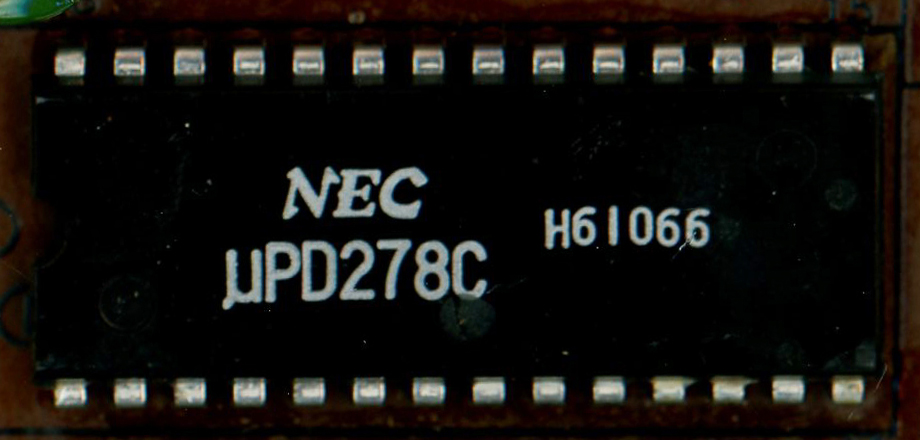

Close-up view
of the NEC µPD278 single-chip calculator circuit. |
Close-up view of the
Itron 9-ST-10 Vacuum Fluorescent Display (VFD).  |

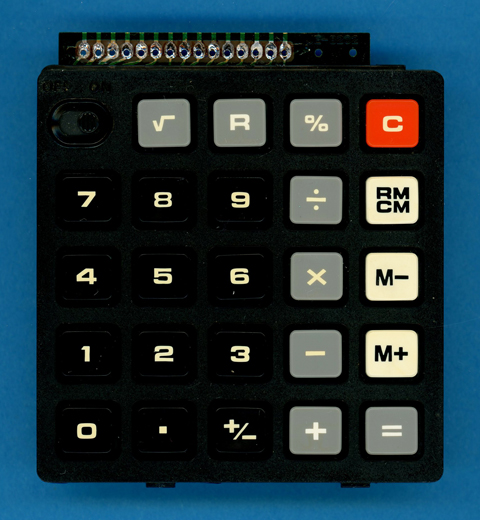

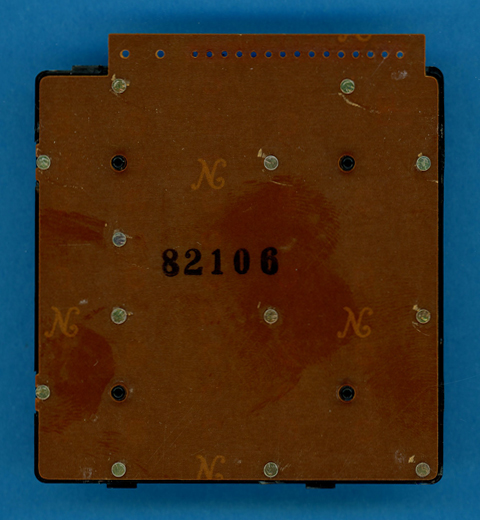

Front- and backside of the
keyboard assembly of the Olympia CD44S calculator.  |
