Additional Pictures
The sales box of the Radofin Model 2200 calculator sold
around 1974 in the US. |

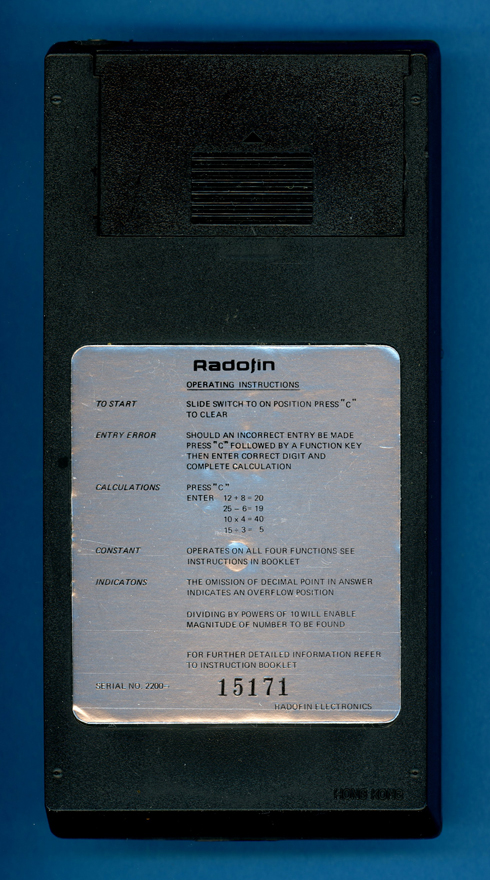

This Radofin Model 2200 was manufactured
in May 1974 in Hong Kong. |

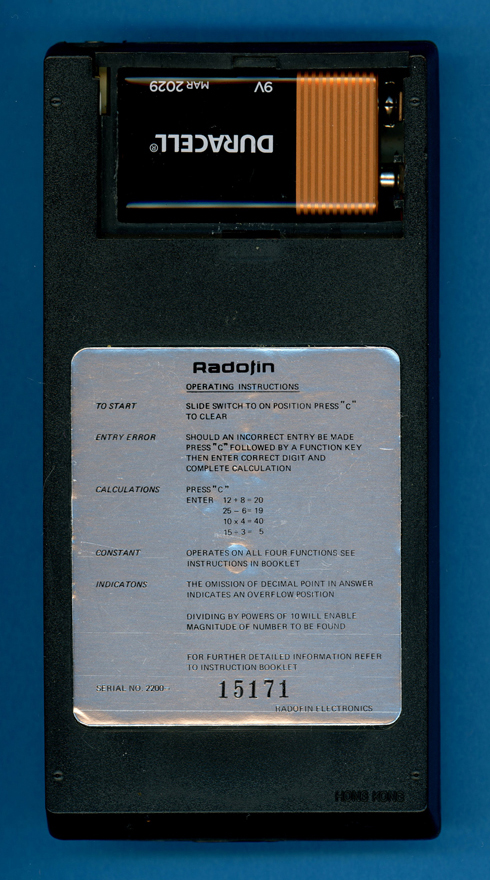

The Radofin Model 2200 is
powered by a disposable 9-Volt battery. |

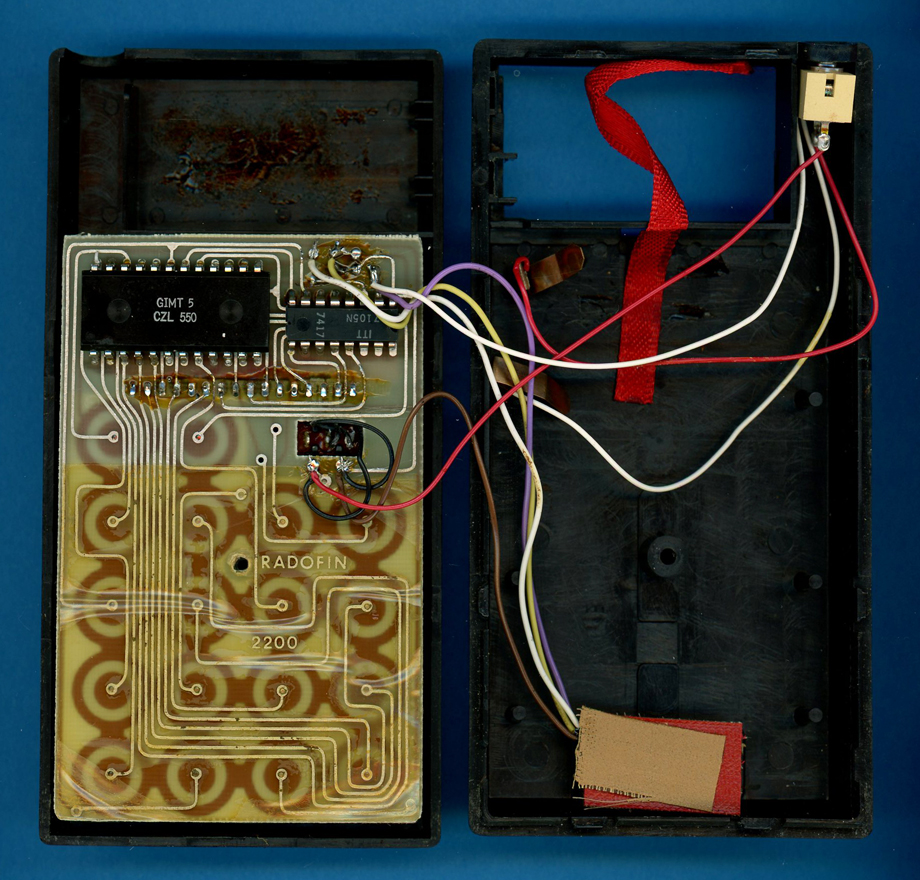

The
Rafofin Mopdel 2200 calculator with its housing opened. |

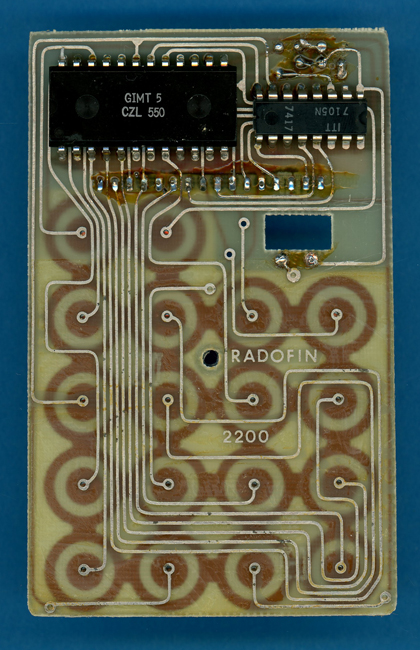

| The printed circuit
board
(PCB) of the Radofin Model 2200 is centered around a General Instrument CZL-550 single-chip calculator circuit.  |

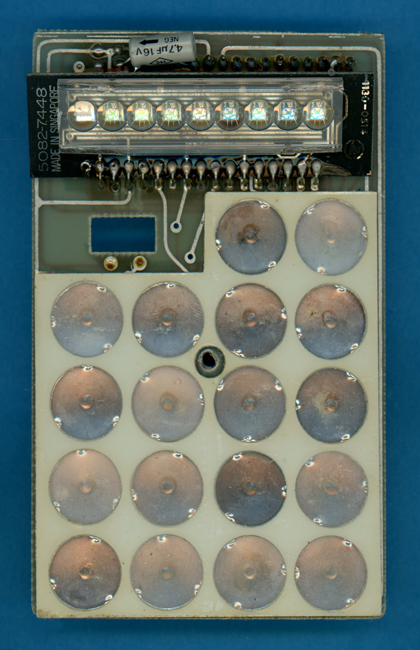

The frontside of the PCB
of the Radofin Model 2200 calculator. |

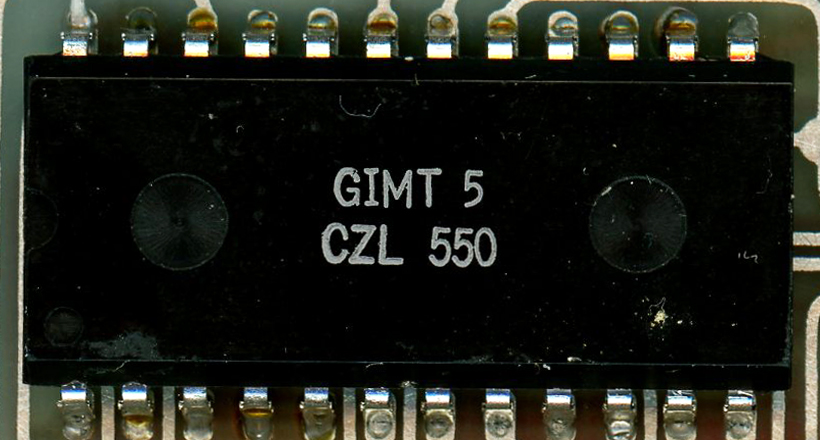

Close-up view of the
General Instrument CZL-550 single-chip calculator circuit. |

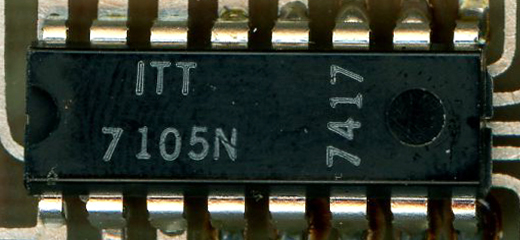

Close-up view of the
ITT 7105 Digit Driver. |
