Additional Pictures

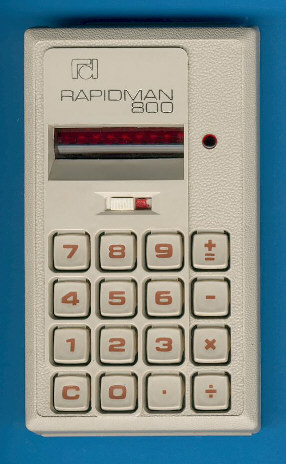

This Rapidman 800 was manufactured in December 1972 in Canada.

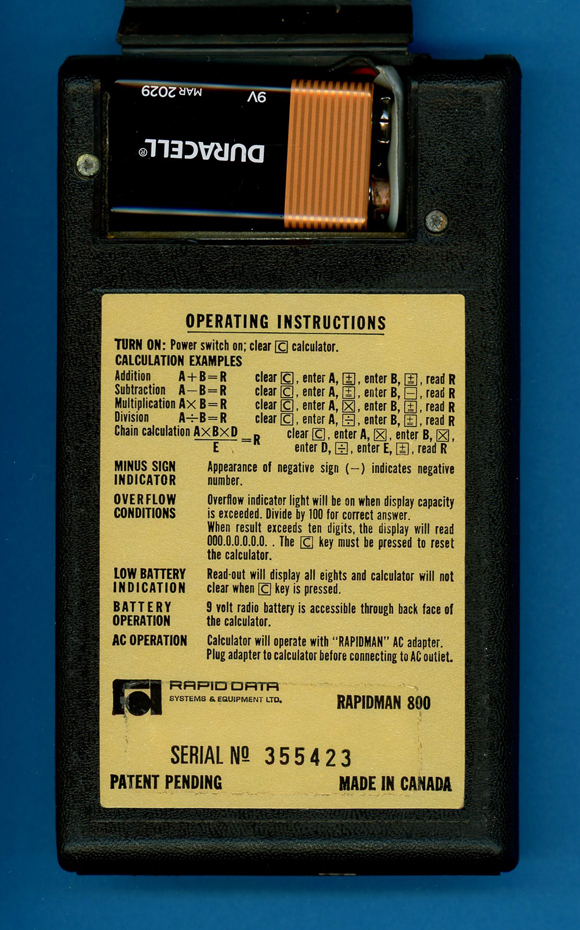

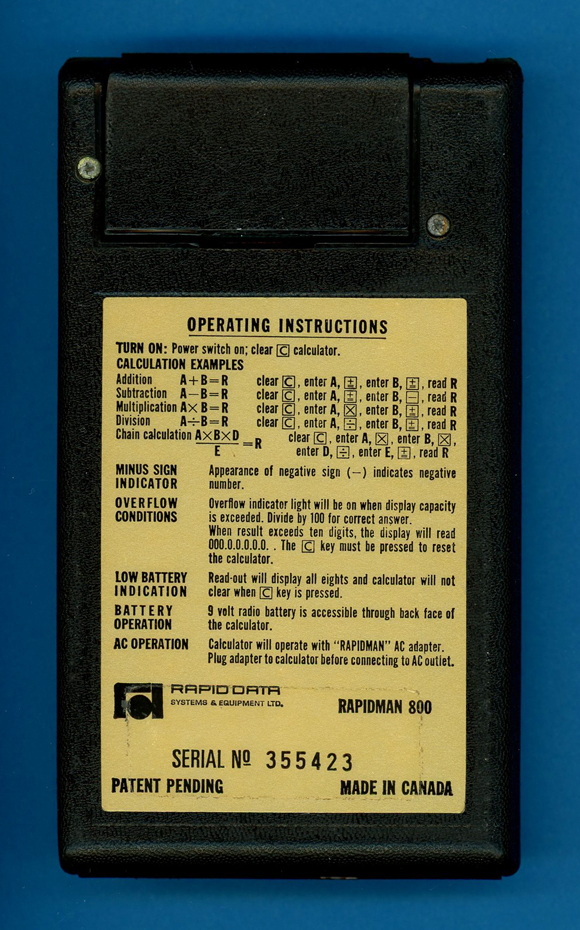

The Rapidman 800 is powered by a disposable 9V battery.

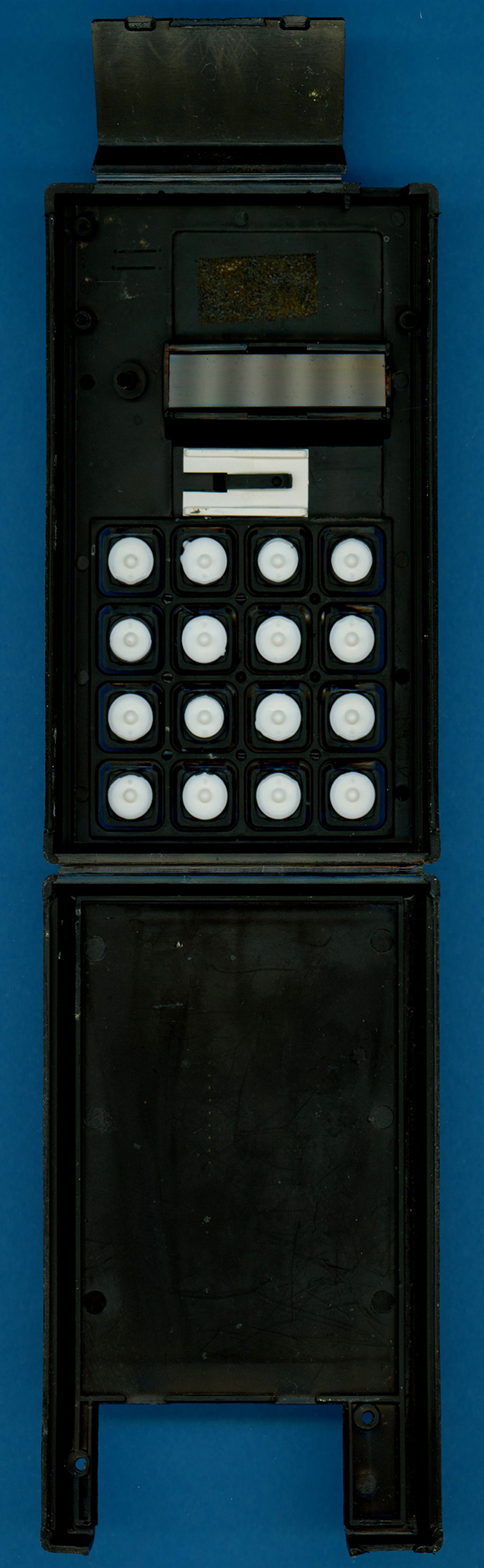

The Rapidman 800 with its housing folded open.

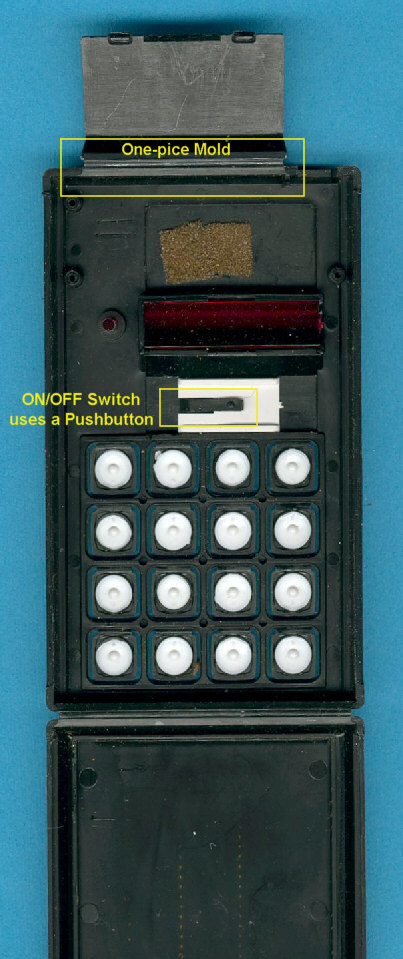

The Rapidman 800 features a one-piece molded housing.

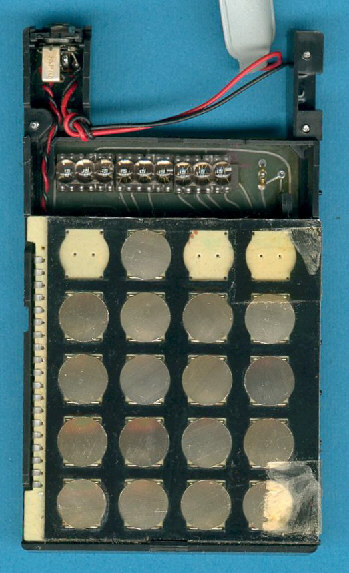

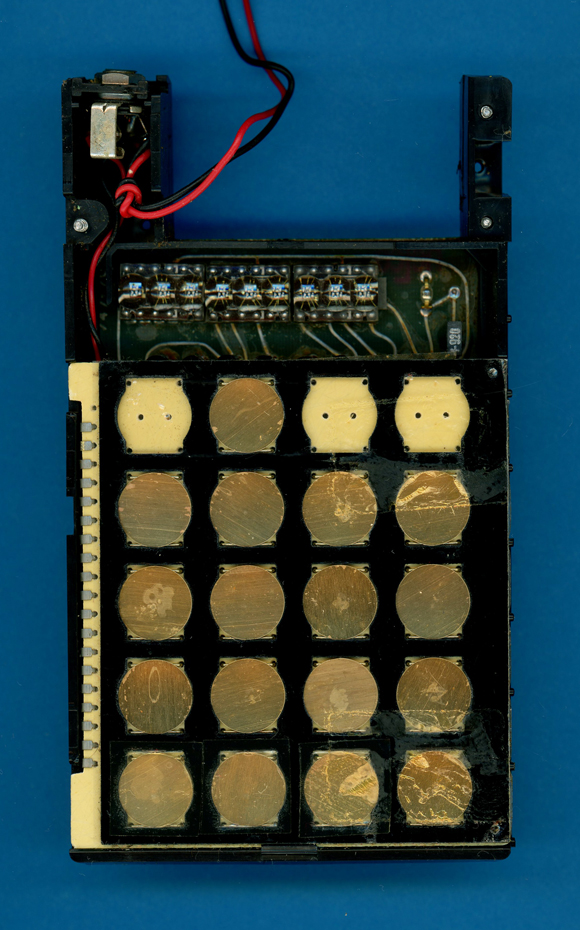

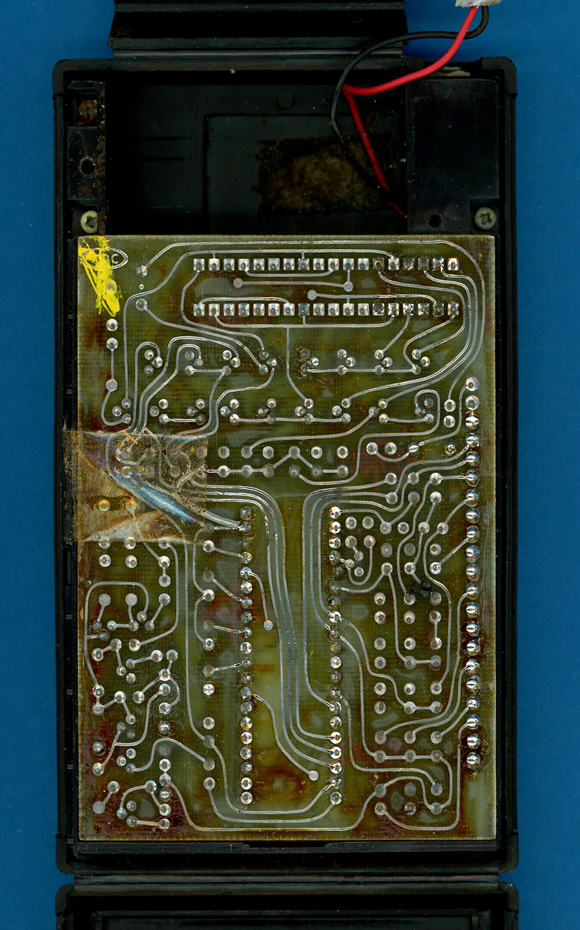

The Rapidman calculator with its housing removed.

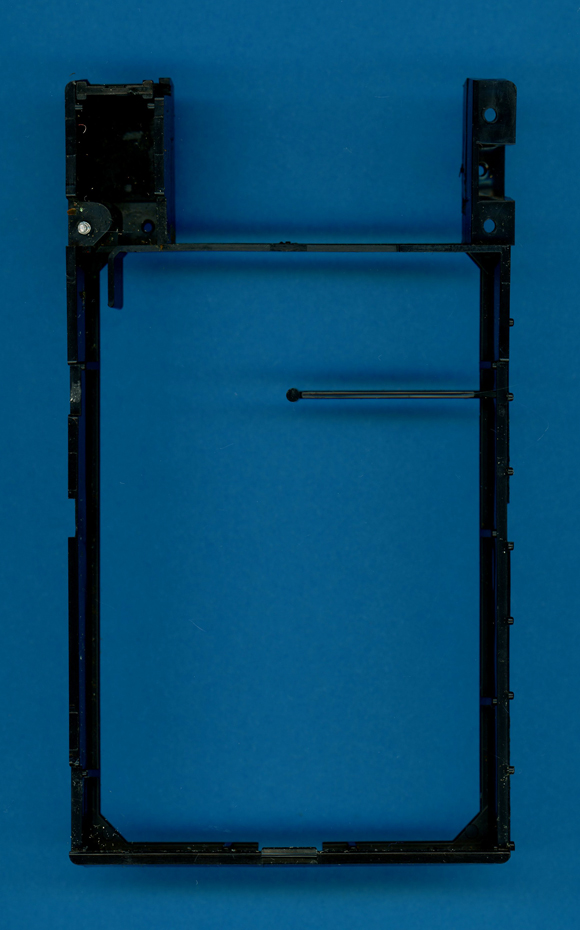

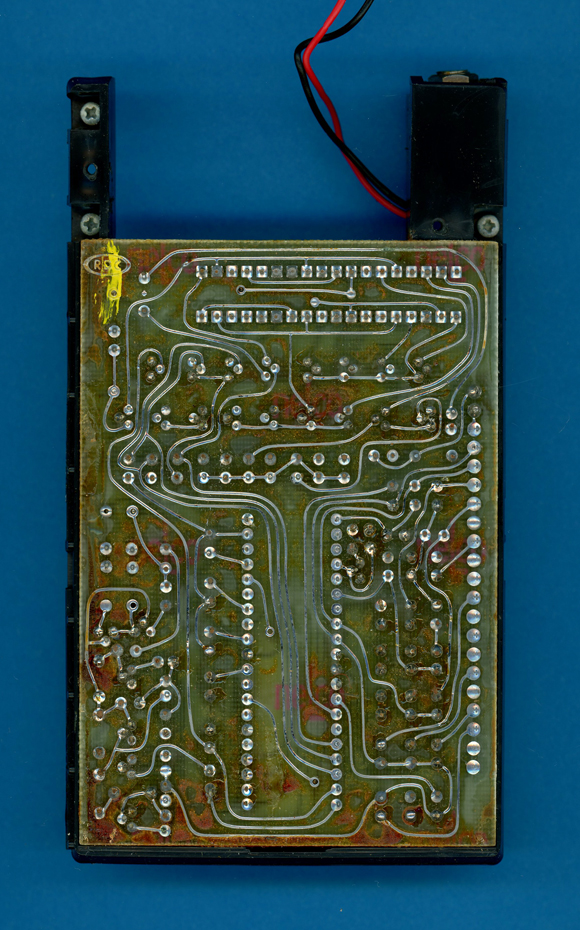

The one-piece molded subframe of the Rapidman 800 calculator.

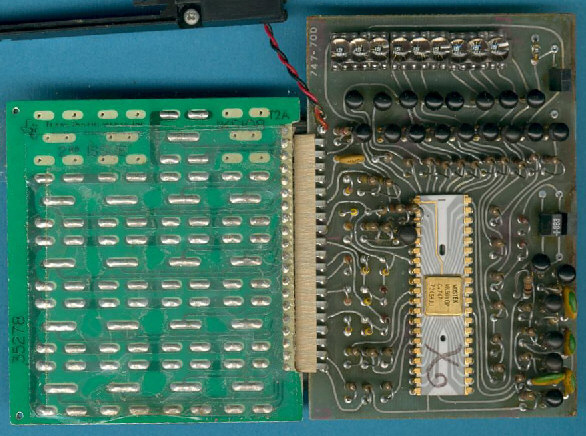

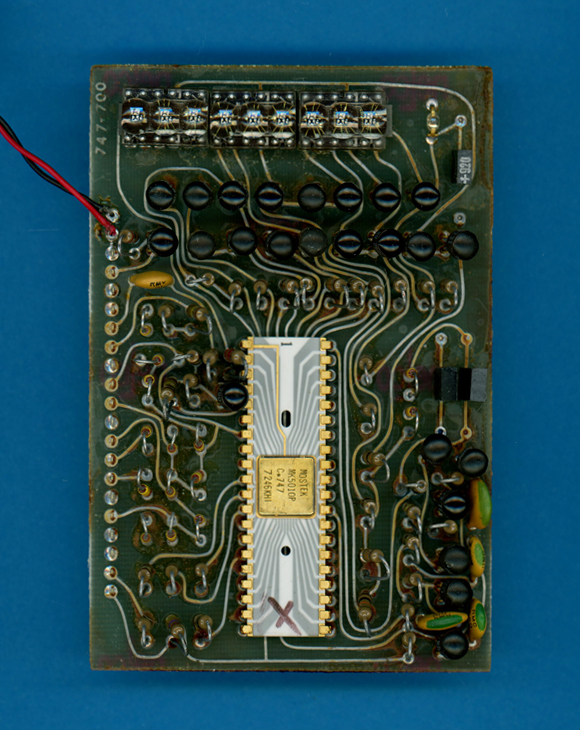

The Main printed circuit board (PCB) of the Rapidman 800 is centered
around a Mostek MK5010P single-chip calculator circuit.

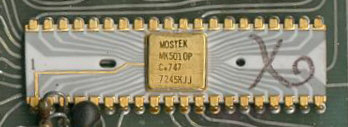

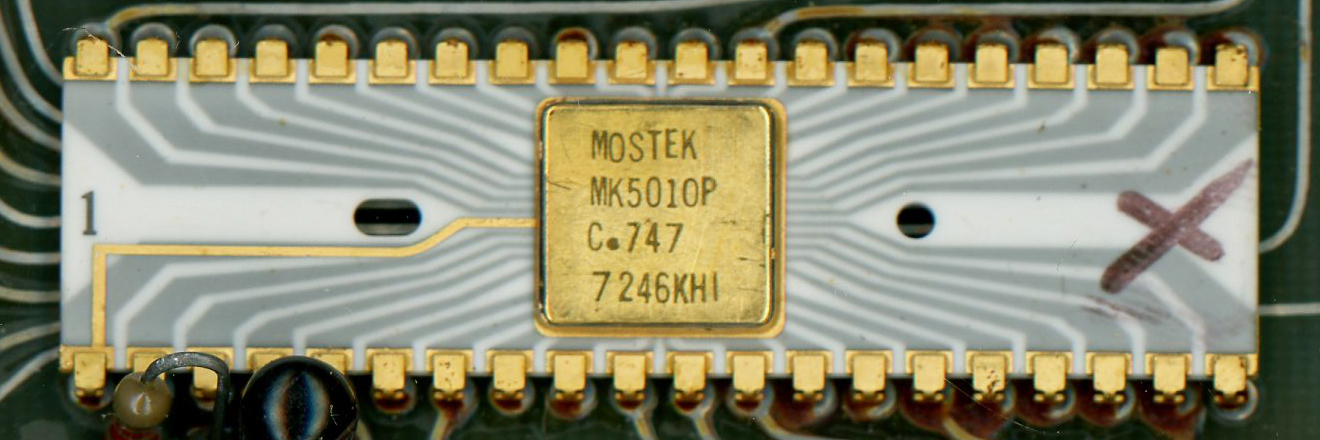

Close-up view of the Mostek MK5010P single-chip calculator circuit.
Close-up view of the 3 Litronix DL-33 Seven-Segment LED Displays.
