Additional Pictures

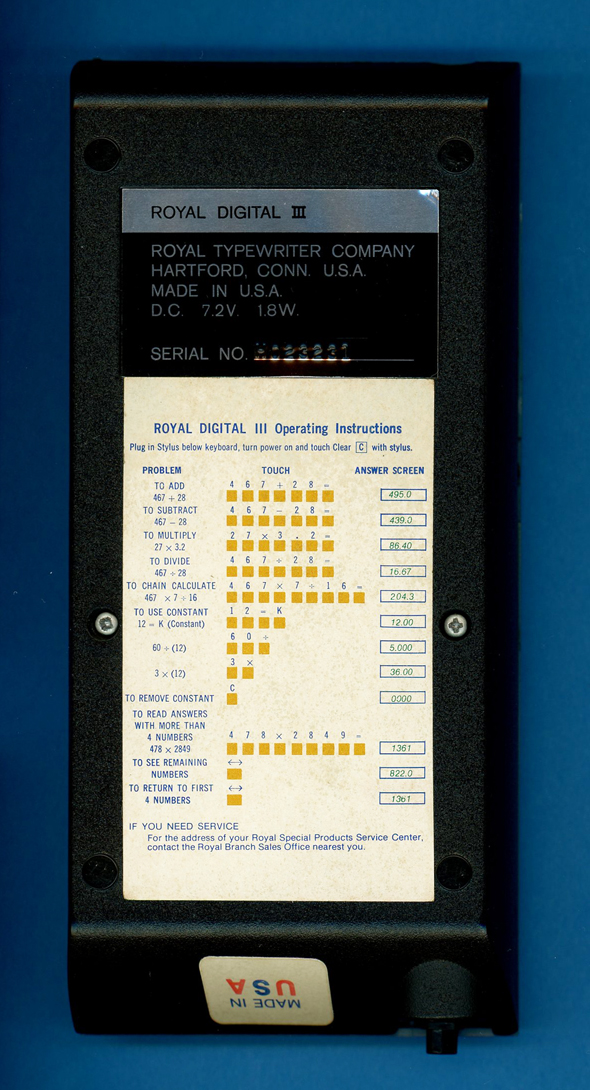

This Litton Royal Digital
III was manufactured
in December 1971 proudly in the United States of America. |

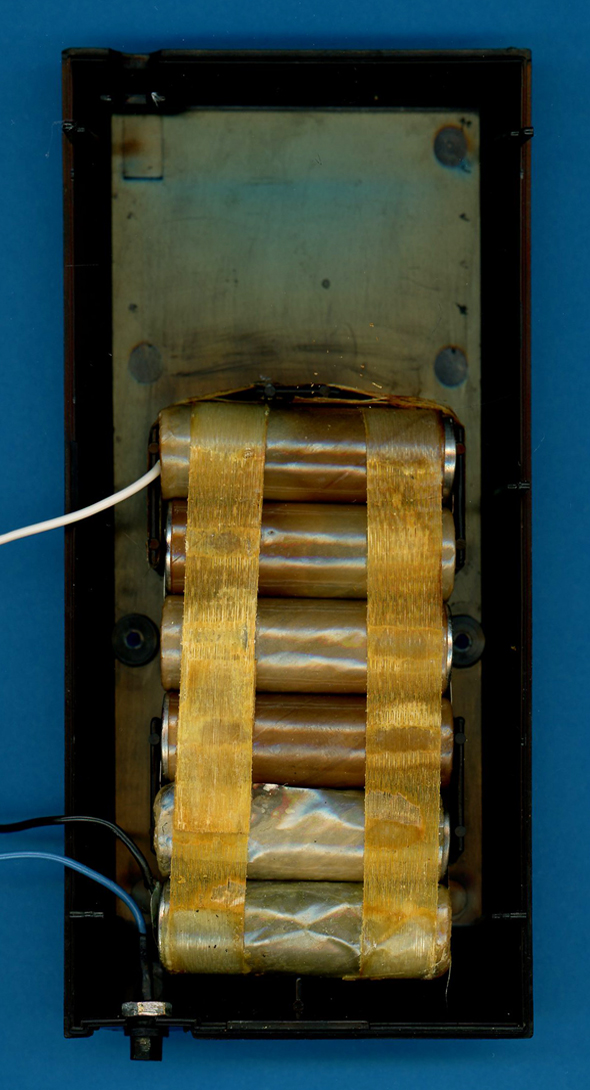

The Litton Royal Digital
III is powered by
six rechargeable NiCd batteries. |

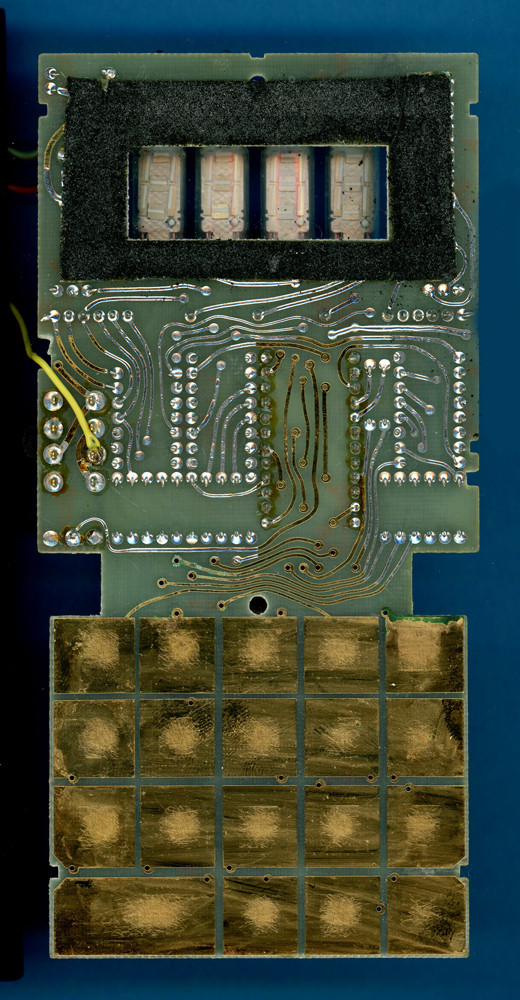

The
Litton Royal Digital III calculator with the its housing removed. |

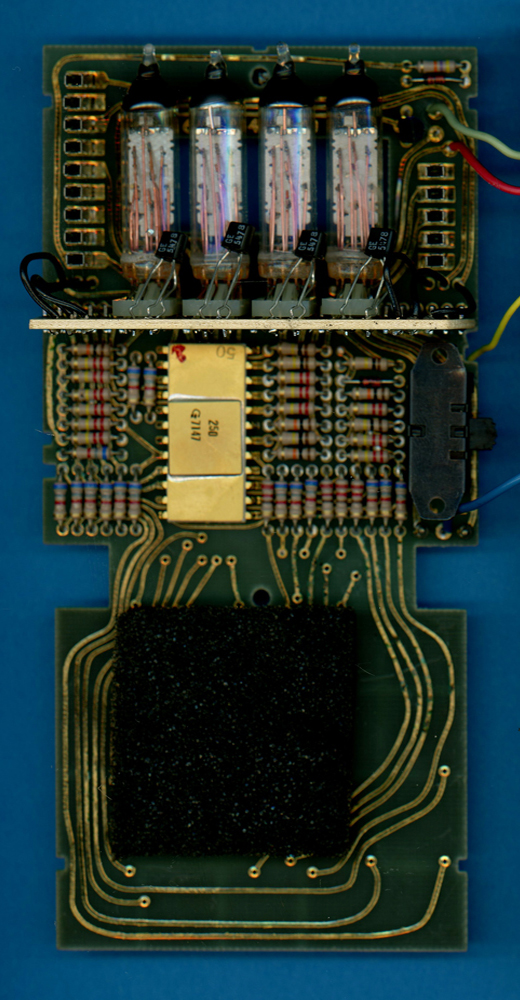

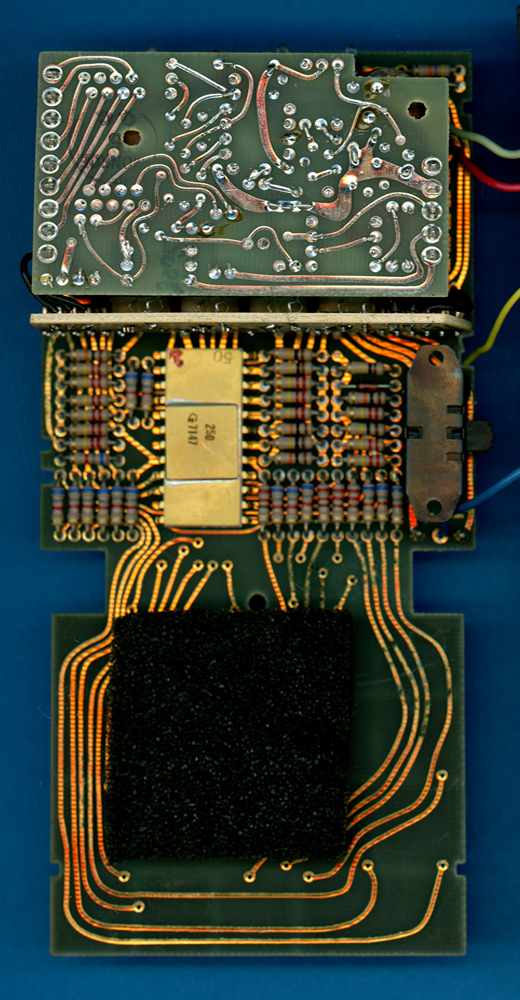

| The Main printed circuit board
(PCB) of the Litton Royal Digital III is centered around a General Instrument 250 single-chip calculator circuit.  |

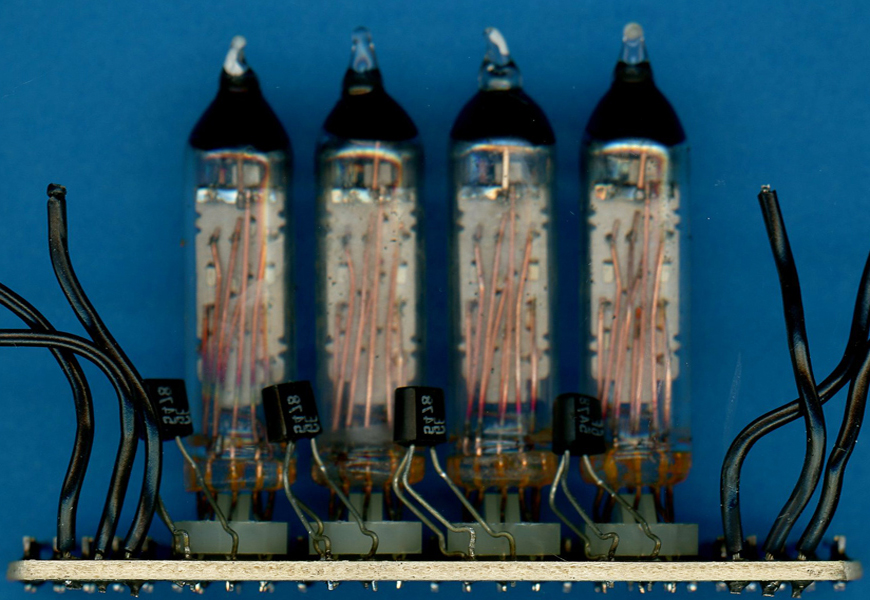

The
Litton Royal Digital III used four unknown Vacuum Fluorescent
Displays (VFDs). |

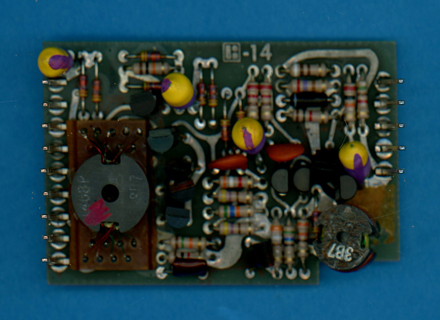

The Power Supply
and Clock Module of the Litton Royal Digital III calculator. |

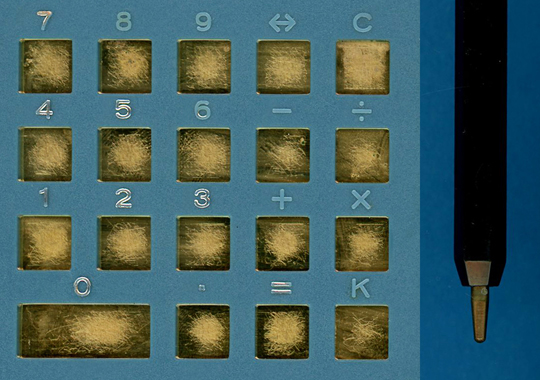

The
keypads and stylus of the Litton Royal Digital III calculator. |

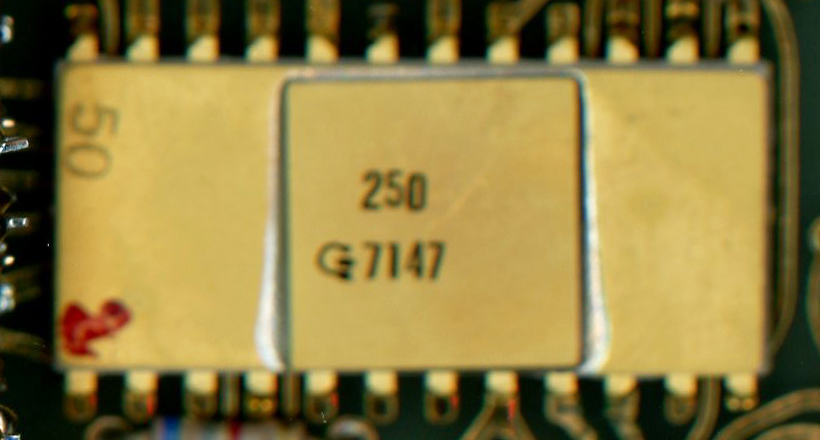

Close-up view of the
General Instrument 250 single-chip calculator circuit. |

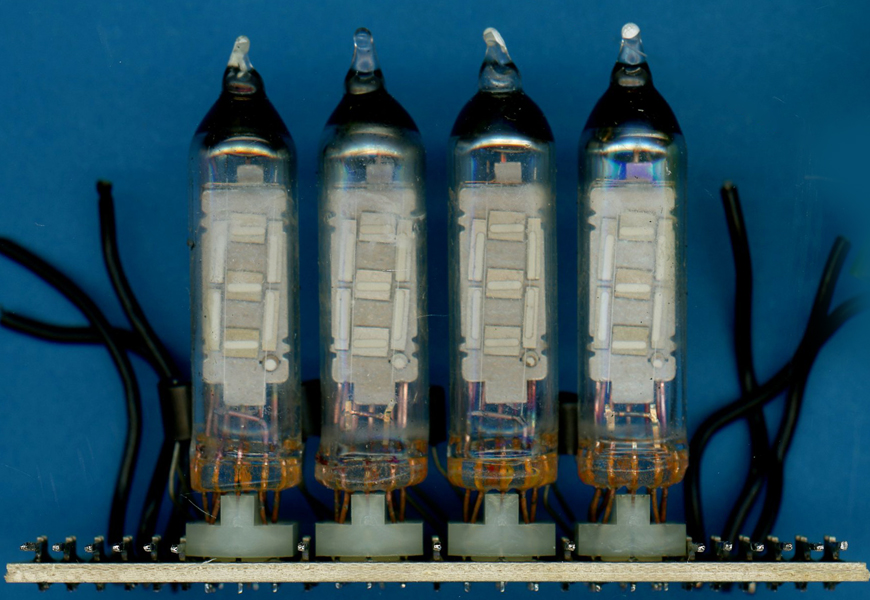

Close-up view of the
Display-PCB.  |
