Additional Pictures

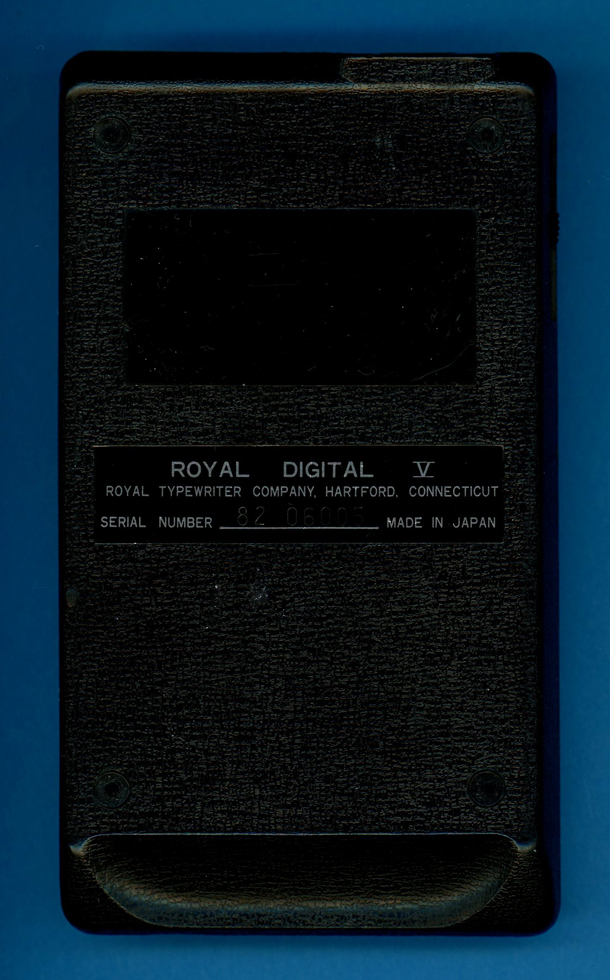

This Litton Royal Digital
V was manufactured
in May 1972 in Japan. |

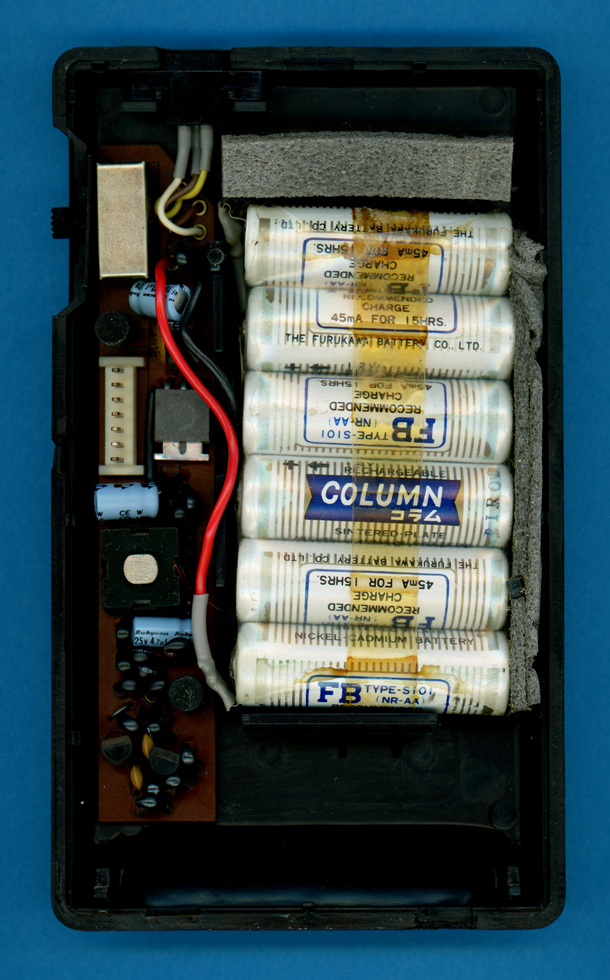

The Litton Royal Digital
V is powered by
six rechargeable NiCd batteries. |

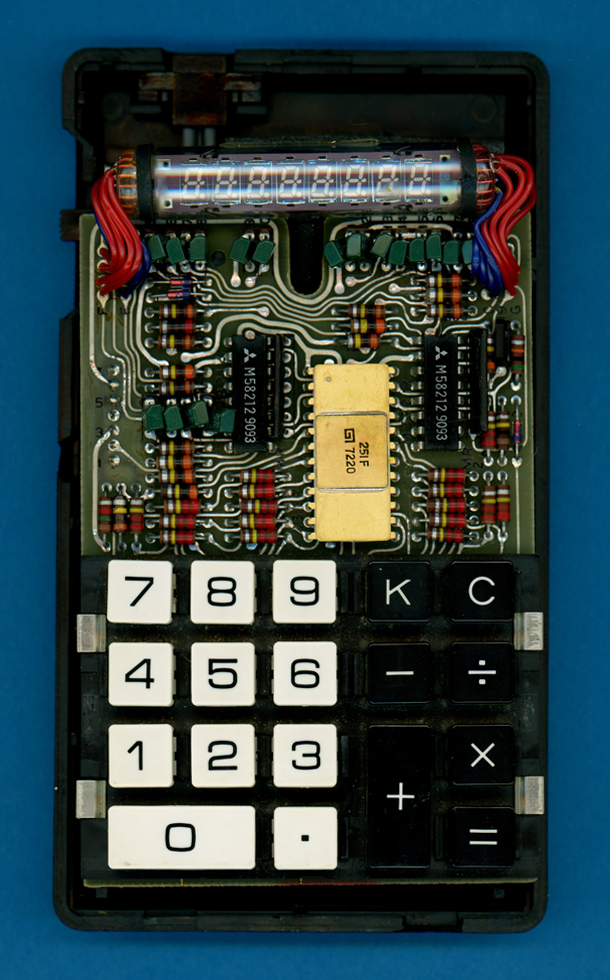

The
Litton Royal Digital V calculator with the frontside of its housing removed. |
| The Main printed circuit
board
(PCB) of the Litton Royal Digital V is centered around a General Instrument 251F single-chip calculator circuit.  |

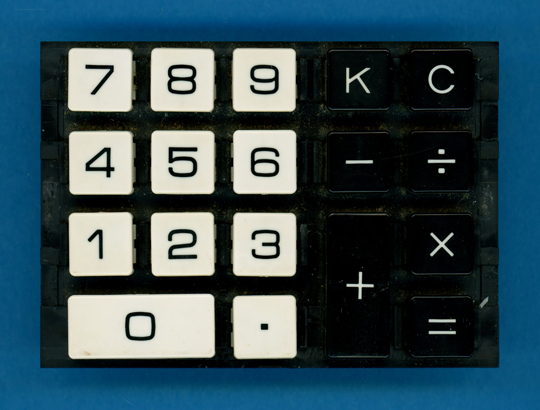

The
keyboard module of the Litton Royal Digital V calculator.  |

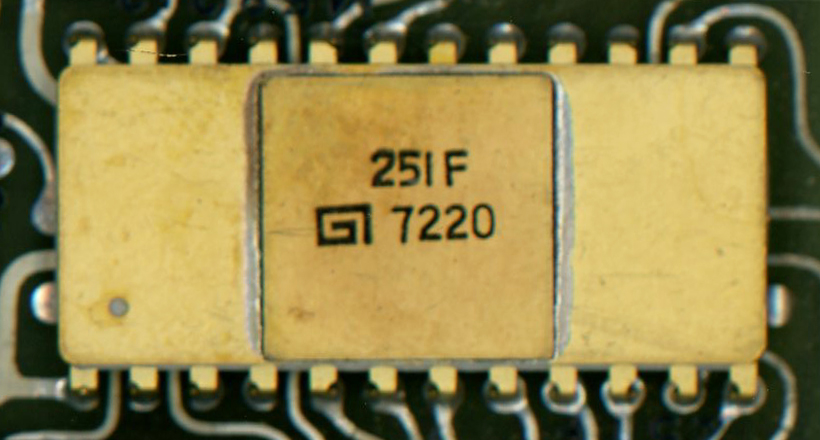

Close-up view of the
General Instrument 251F single-chip calculator circuit. |

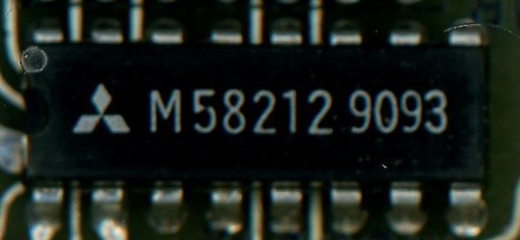

Close-up view of one the
two Mitsubishi M58212 chips. |
