Additional Pictures

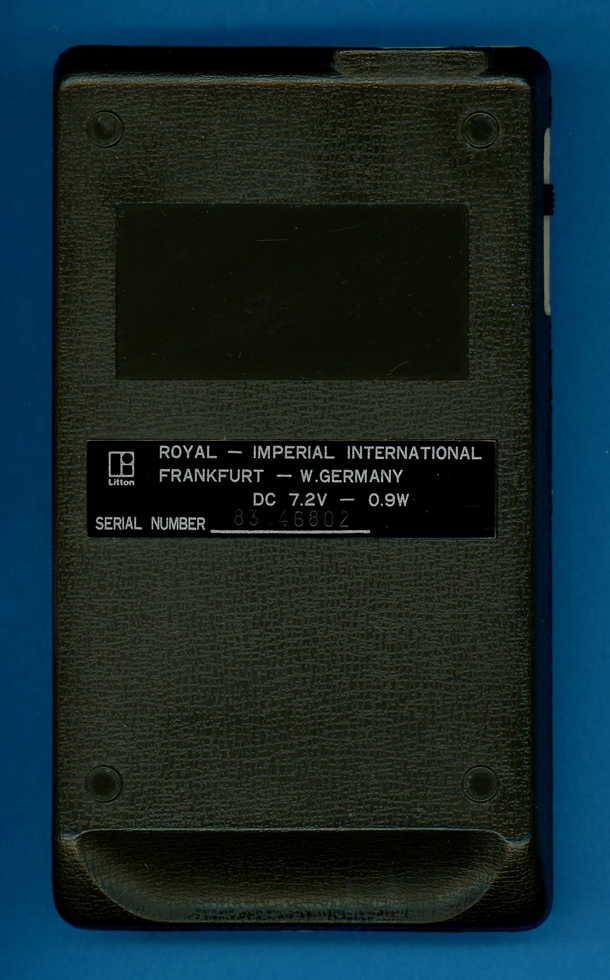

This Litton Royal RC 80 was manufactured
in January 1973 in Japan. |

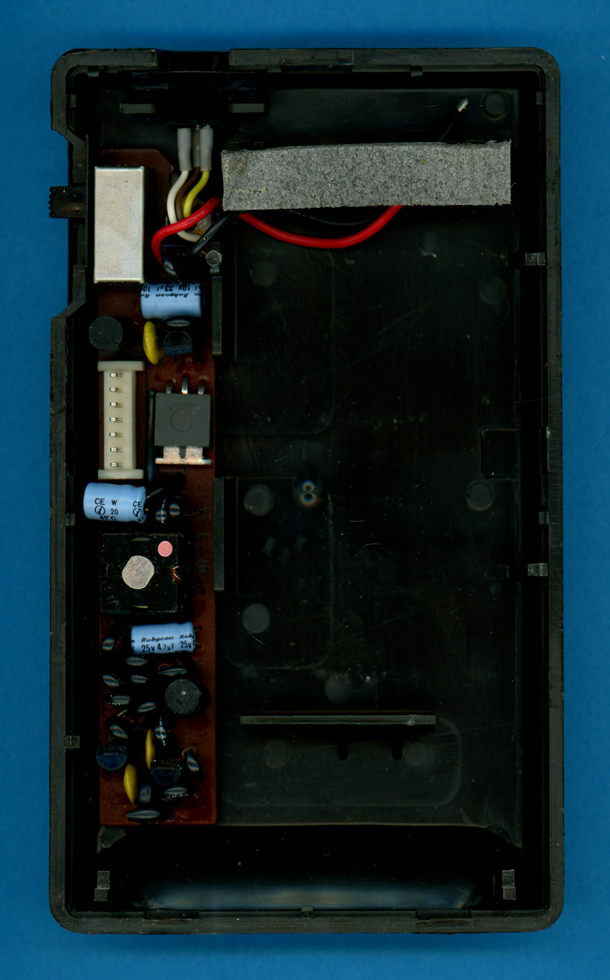

| The Litton Royal RC 80 is powered by
six rechargeable NiCd batteries. Note: Batteries were previously removed to avoid leaking.  |

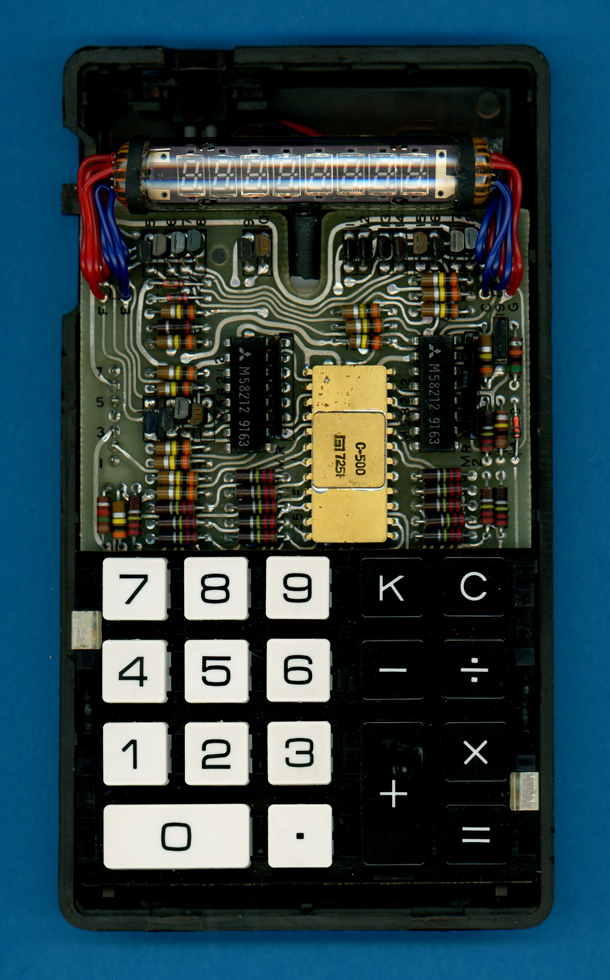

The
Litton Royal RC 80 calculator with the frontside of its housing removed. |

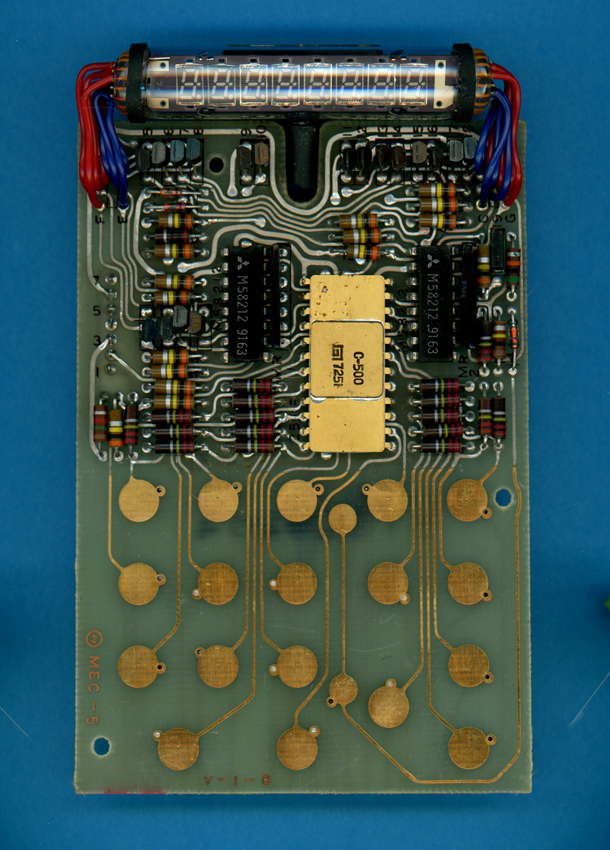

| The Main printed circuit
board
(PCB) of the Litton Royal RC 80 is centered around a General Instrument C-500 single-chip calculator circuit.  |

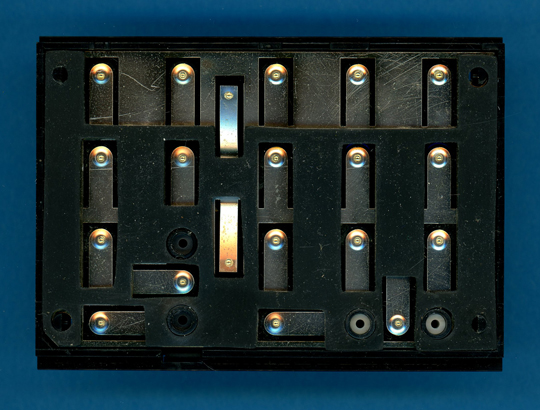

The
keyboard module of the Litton Royal RC 80 calculator.  |

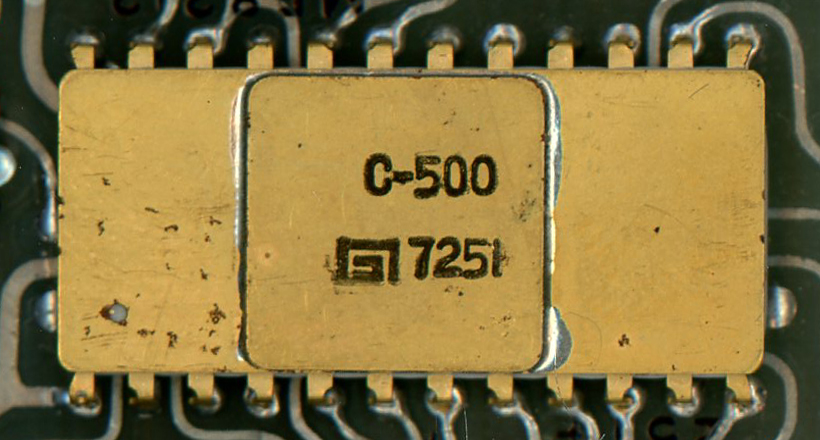

Close-up view of the
General Instrument C-500 single-chip calculator circuit. |

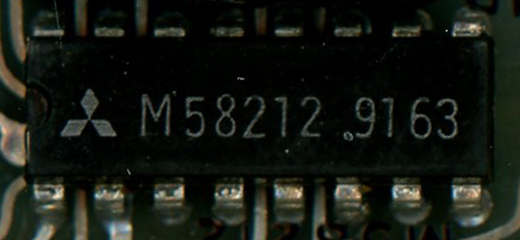

Close-up view of one the
two Mitsubishi M58212 chips. |

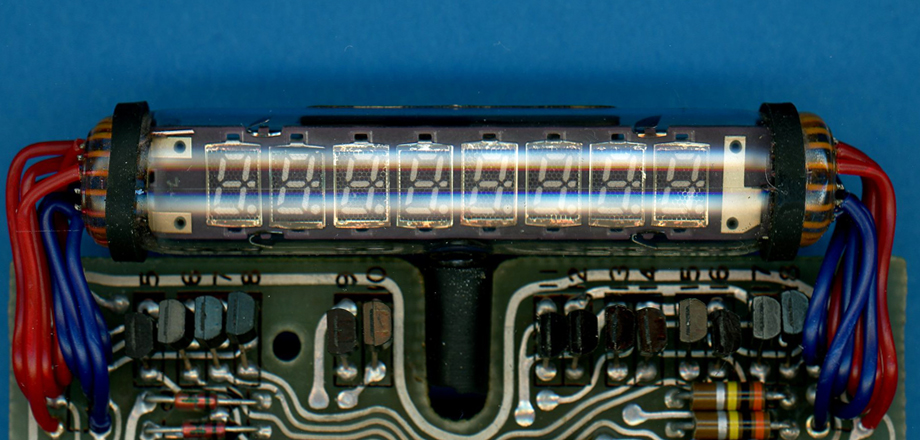

Close-up view of one the
FUTABA 8-CT-01A Vacuum Fluorescent Display (VFD). |
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, November 18, 2025. No reprints without written permission.
