DATAMATH CALCULATOR MUSEUM |
Additional Pictures
The
sales box of the Sharp EL-204 sold
in January 1977 in Germany.
![]() |

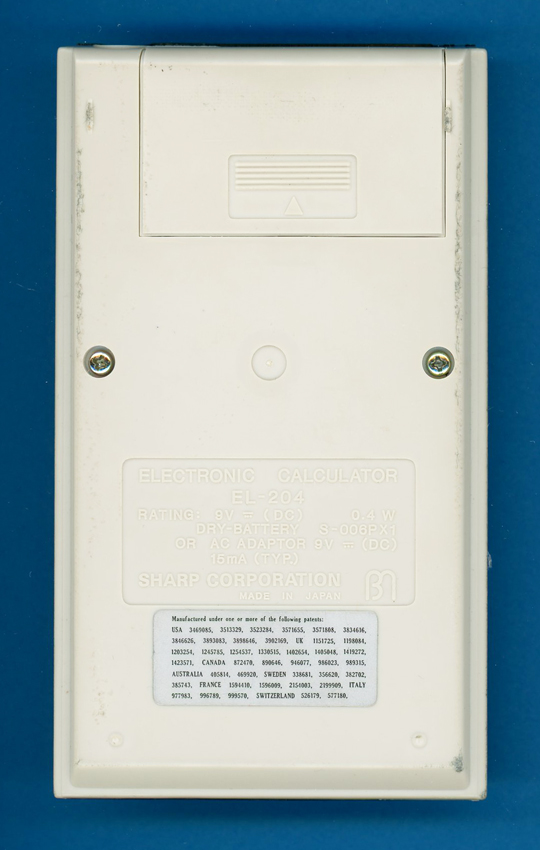

This Sharp EL-204 was manufactured
in December 1976.![]() |
The Sharp EL-204 is powered by a disposable 9 Volts battery.![]() |
The printed
circuit board (PCB) of the Sharp EL-204 is centered
around a TMS0956 single-chip calculator circuit. ![]() ![]() |
Close-up view
of the TMS0956 single-chip calculator circuit.![]() |
Close-up view of the
Sharp Display Module of a Sharp EL-204
manufactured in November 1976.![]() |
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, November 25, 2022. No reprints without written permission.
