Additional Pictures
|

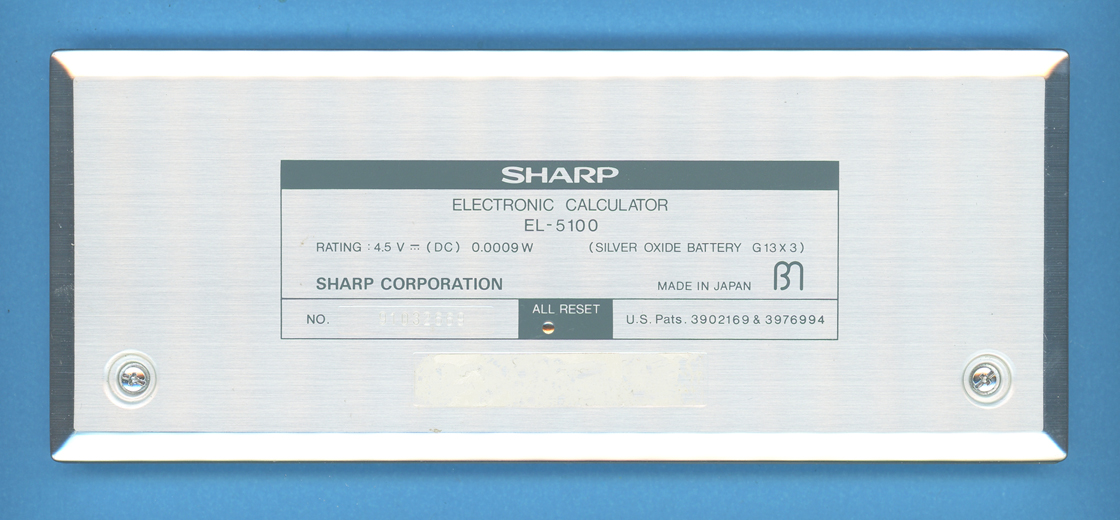

This Sharp EL-5100 Programmable Scientific Calculator was manufactured in September 1979 by Sharp Corporation in Japan.
|
|

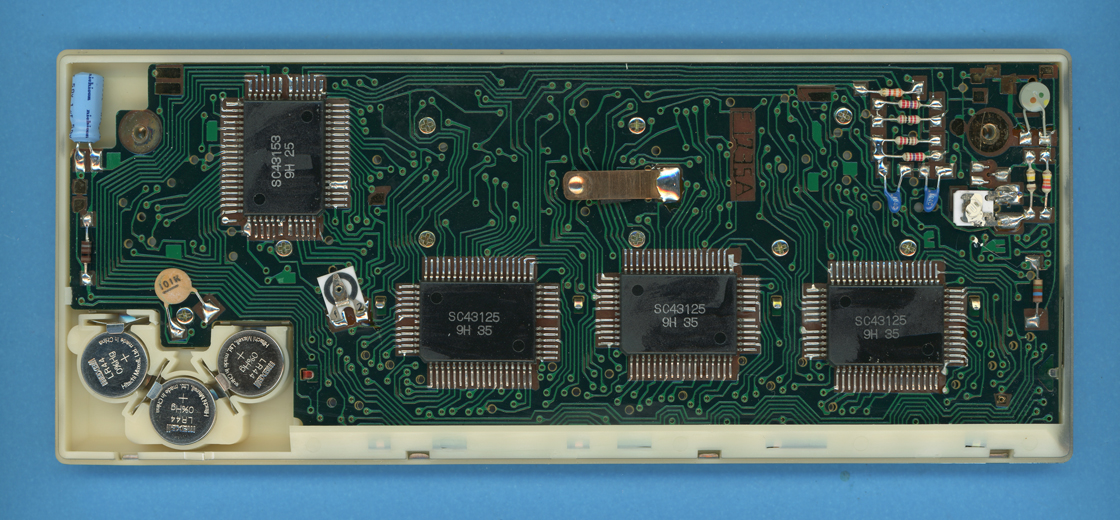

| The printed circuit board
(PCB) of the Sharp EL-5100 is centered around an SC43153 4-bit microcontroller
and 3 LCD-Drivers with integrated RAM.
|
|

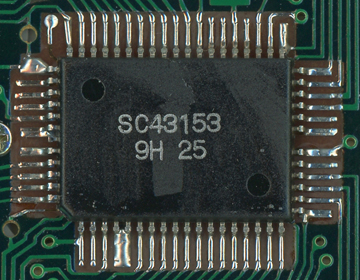

| Close-up
view of the SC43153 microcontroller.
|

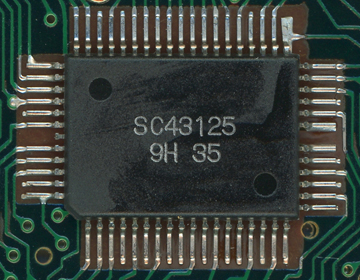

Close-up view of one of the SC43125 Display Drivers. |
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, January 24, 2021. No reprints without written permission.
