Additional Pictures

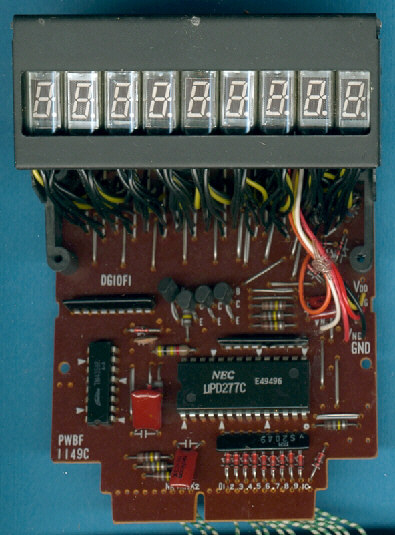

The calculator brain reduced to a single-chip calculator IC.

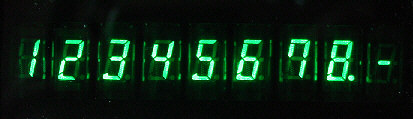

The display uses the common seven-segment style
instead the odd segmentation of the EL-811.
