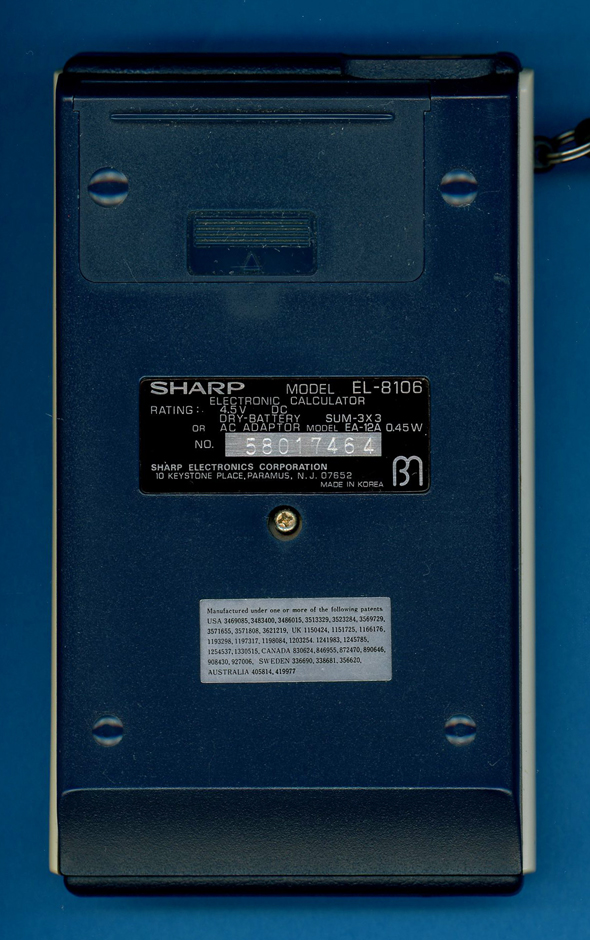

This Sharp EL-8106 was manufactured
in April 1975 in Korea. |

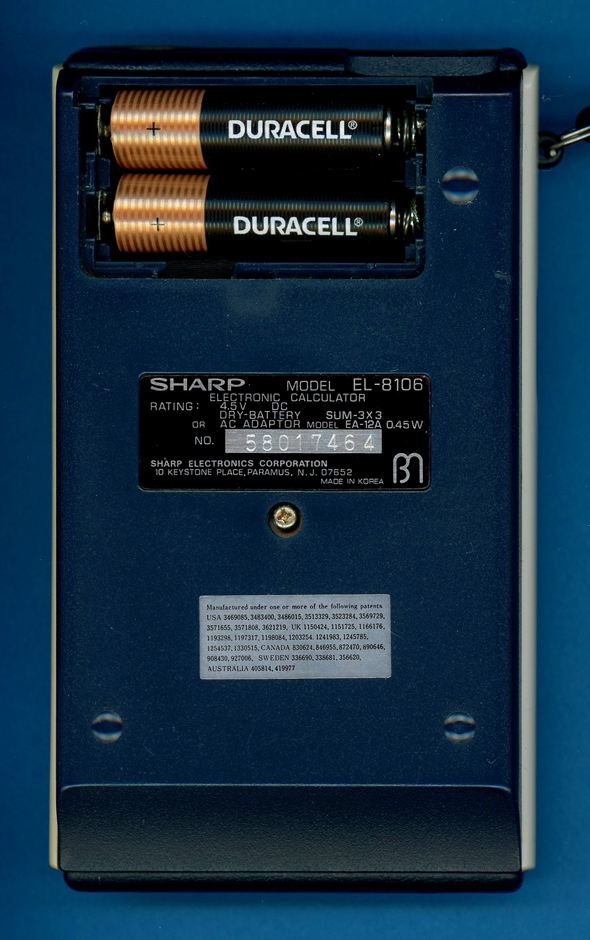

The Sharp EL-8106 is powered by
three disposable 1.5 Volt batteries. |

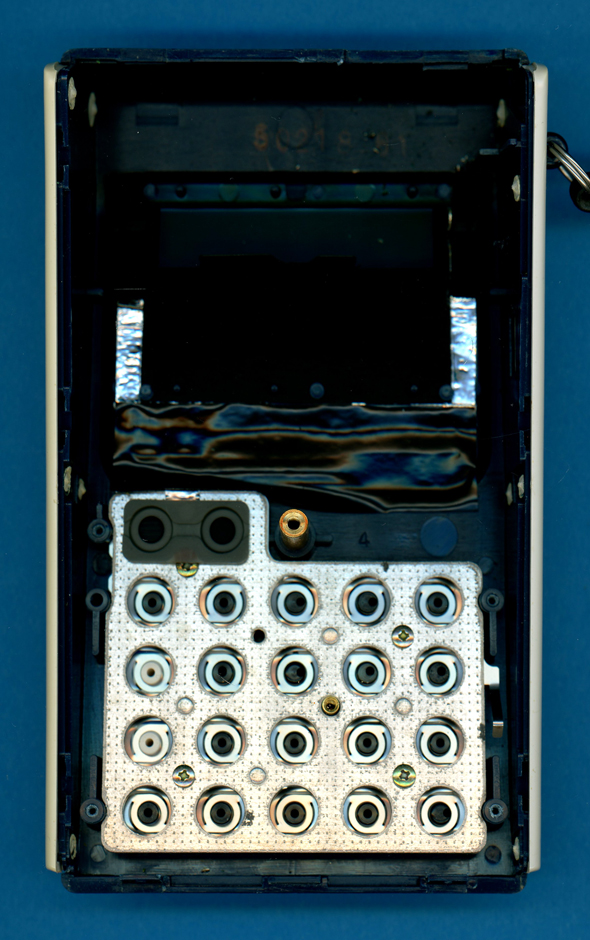

Backside of the
keyboard assembly of
the Sharp EL-8106 calculator. |

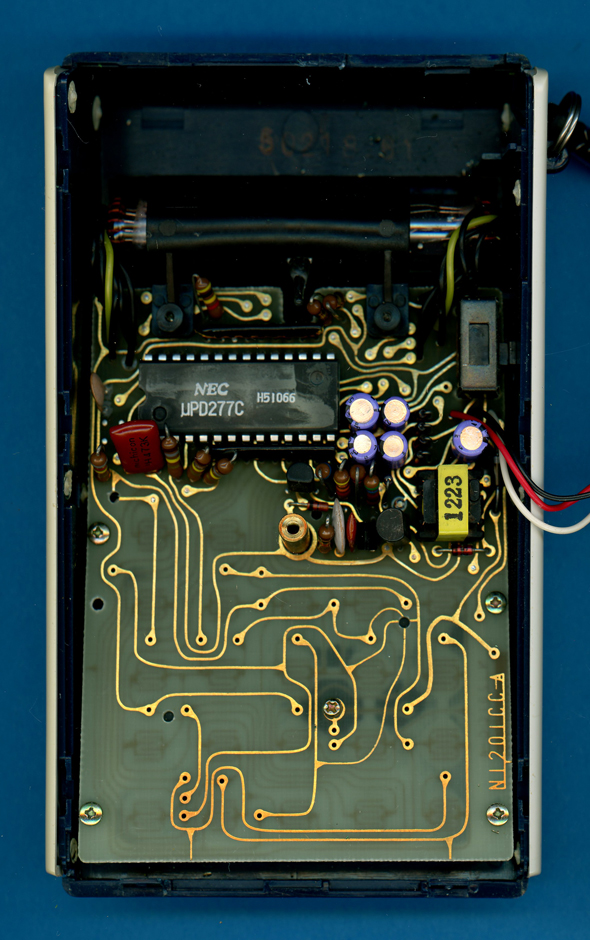

| The printed circuit board
(PCB) of the Sharp EL-8106 is centered around a NEC µPD277 single-chip calculator circuit.  |

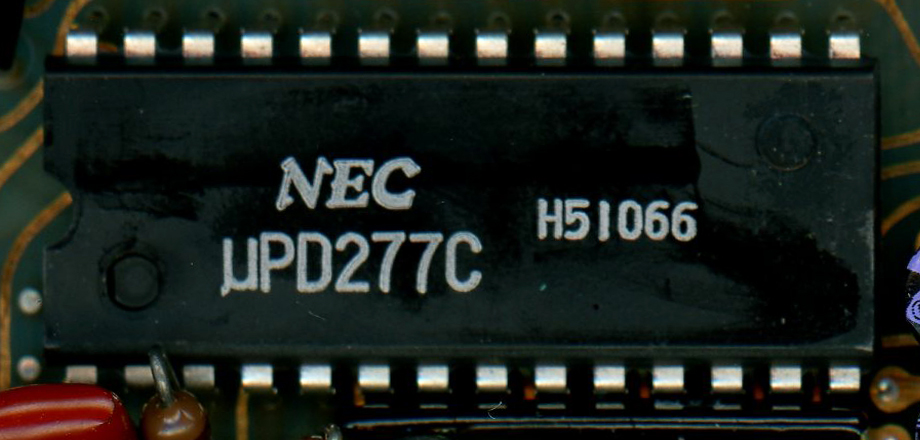

Close-up view
of the NEC µPD277 single-chip calculator circuit. |

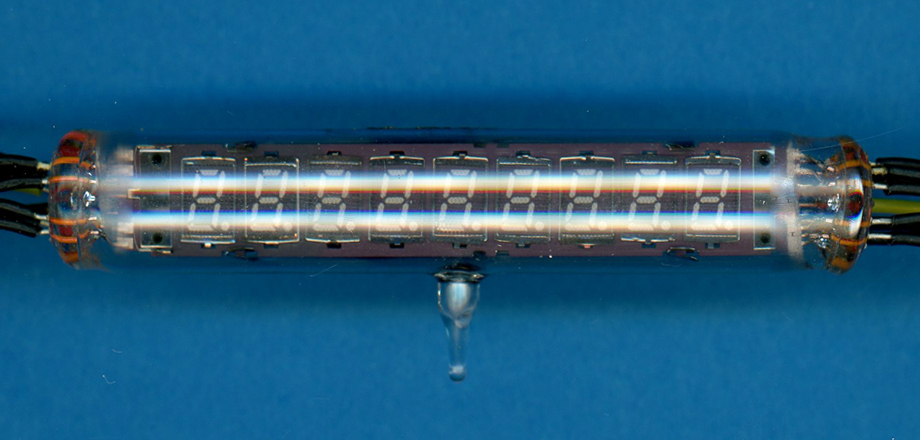

Close-up view of the
Futaba 9-CT-04 Vacuum Fluorescent Display (VFD).  |

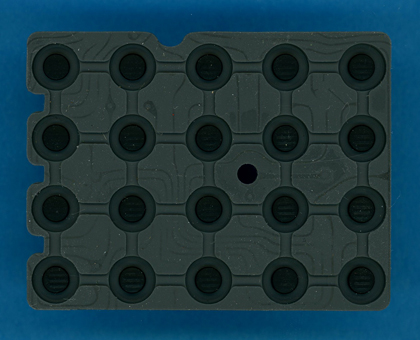

The silicone rubber
membrane of the keyboard assembly. |
