Additional Pictures
|

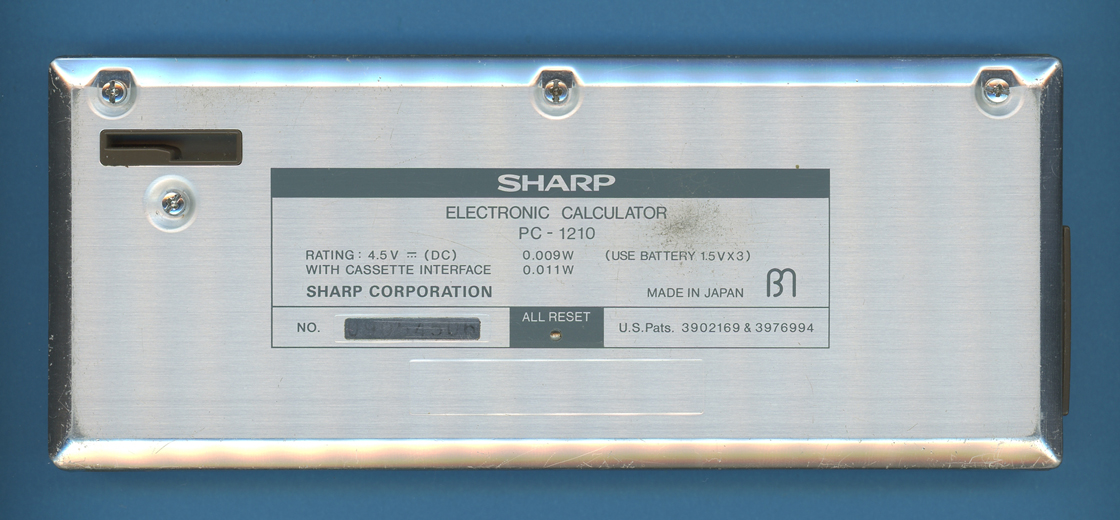

This Sharp PC-1210 Pocket Computer was manufactured in June 1980 by Sharp Corporation in Japan.
|

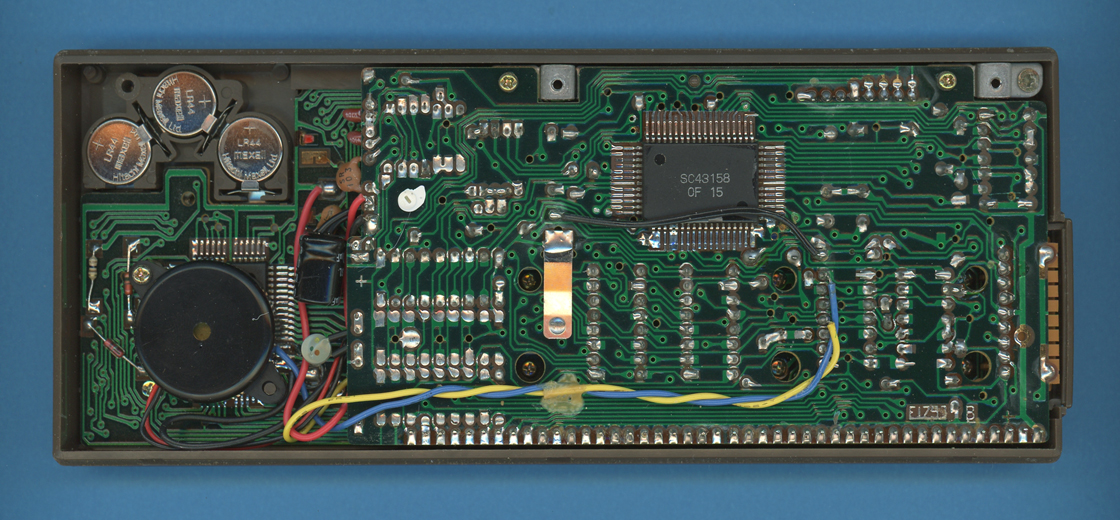

| The two printed circuit boards
(PCBs) of the Sharp PC-1210 are stacked on top of each
other, the electronics is centered around two Sharp SC43157 (hidden under the buzzer) and Sharp SC43158 4-bit microcontroller.
|

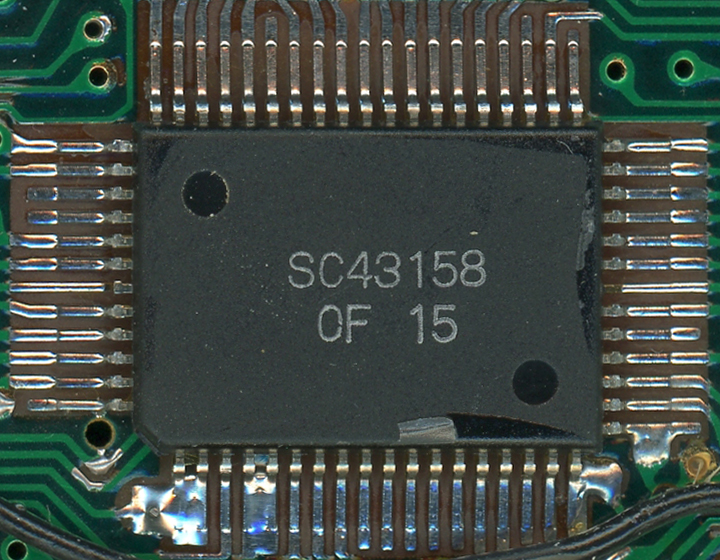

| Close-up
view of the SC43158 microcontroller.
|
If you have additions to the above article please email: joerg@datamath.org.
