Additional Pictures

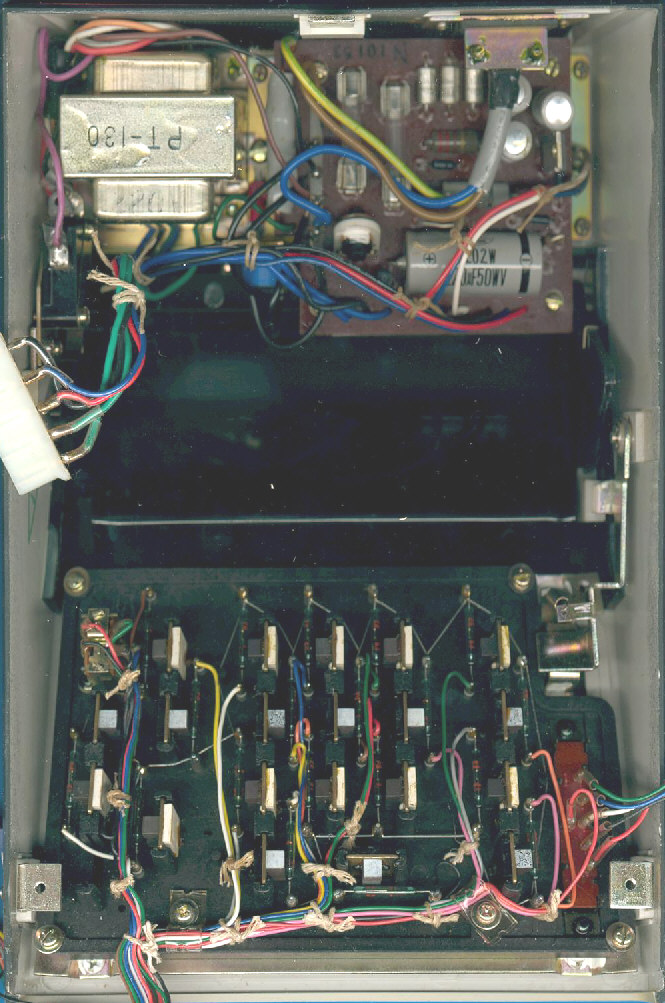

| The upper half of the Toshiba BC-1011
hold the power supply and a rigid keyboard using small magnets and Reed-contacts.
|

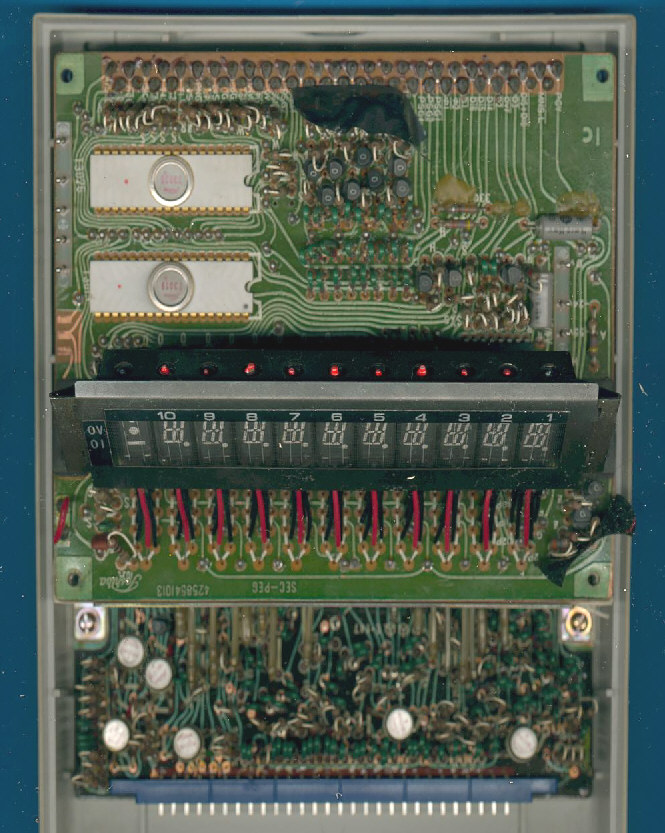

| The base of the
Toshiba BC-1011 with the main printed circuit board (PCB) using two early T3019 and T3026 LSI chips, the 10 digit display and obviously a second PCB.
|

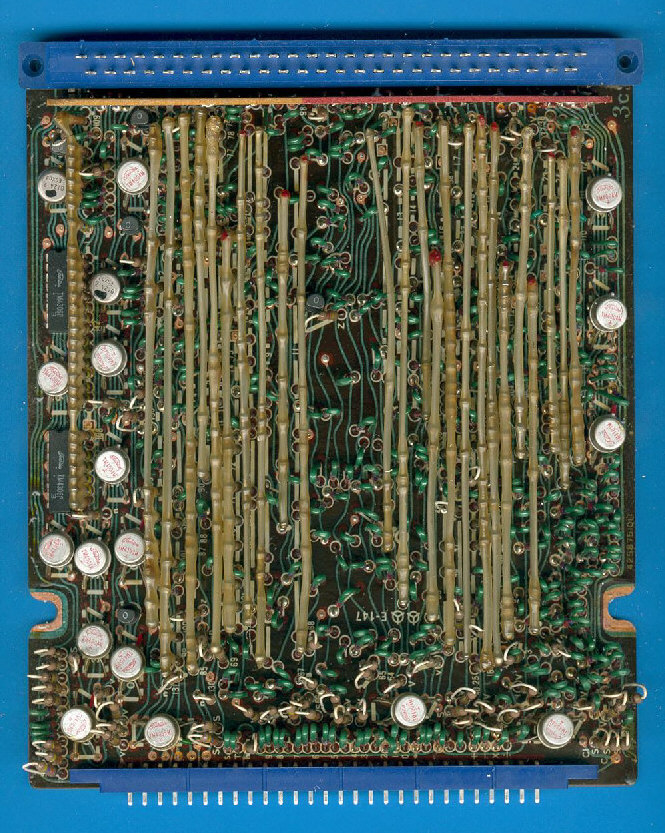

| The second PCB of the
Toshiba BC-1011 with 20 additional integrated circuits. These chips are small to medium complexity and contain basic functions.
|
