Additional Pictures
|
This Toshiba BC-1015 was manufactured in April 1979 by Zeny Corporation in Taiwan.
|

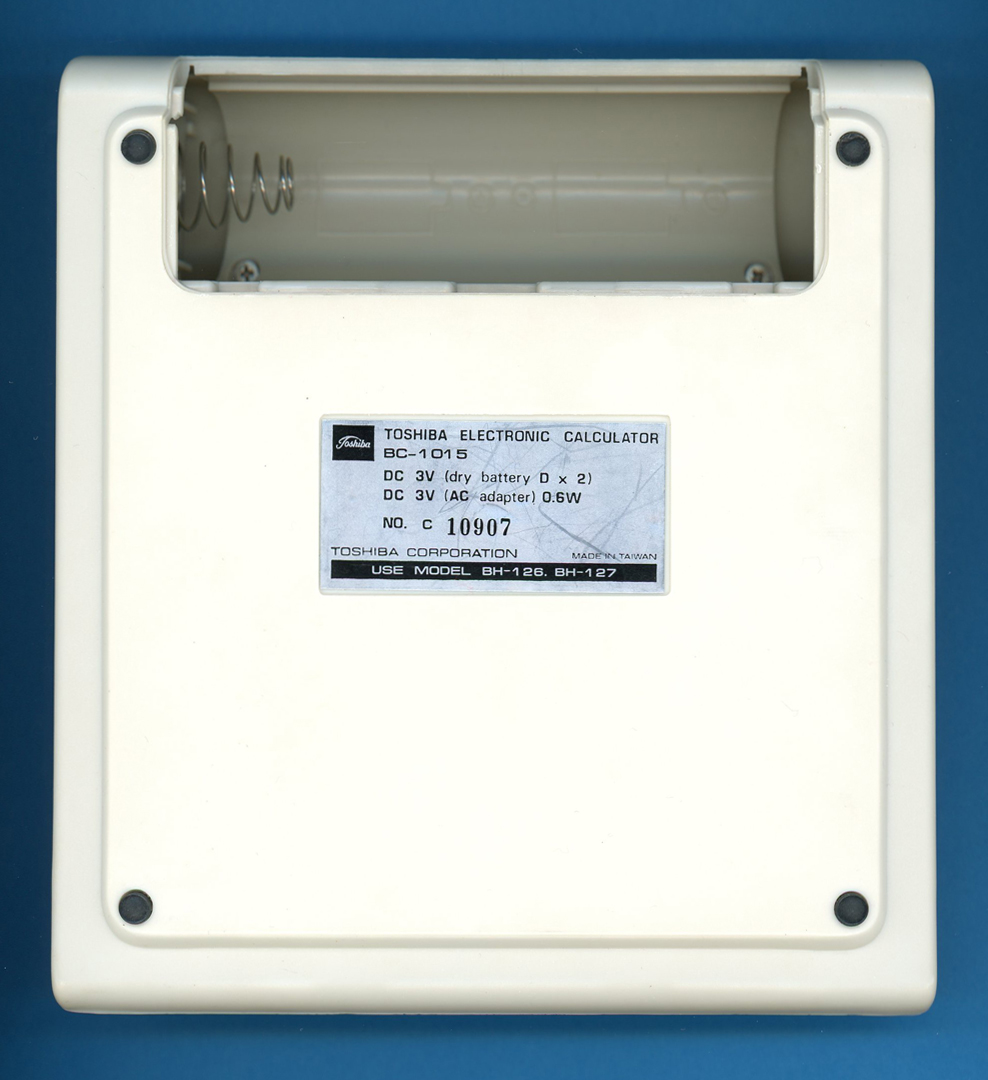

| The BC-1015 is powered by two D-sized
Alkaline batteries.
|

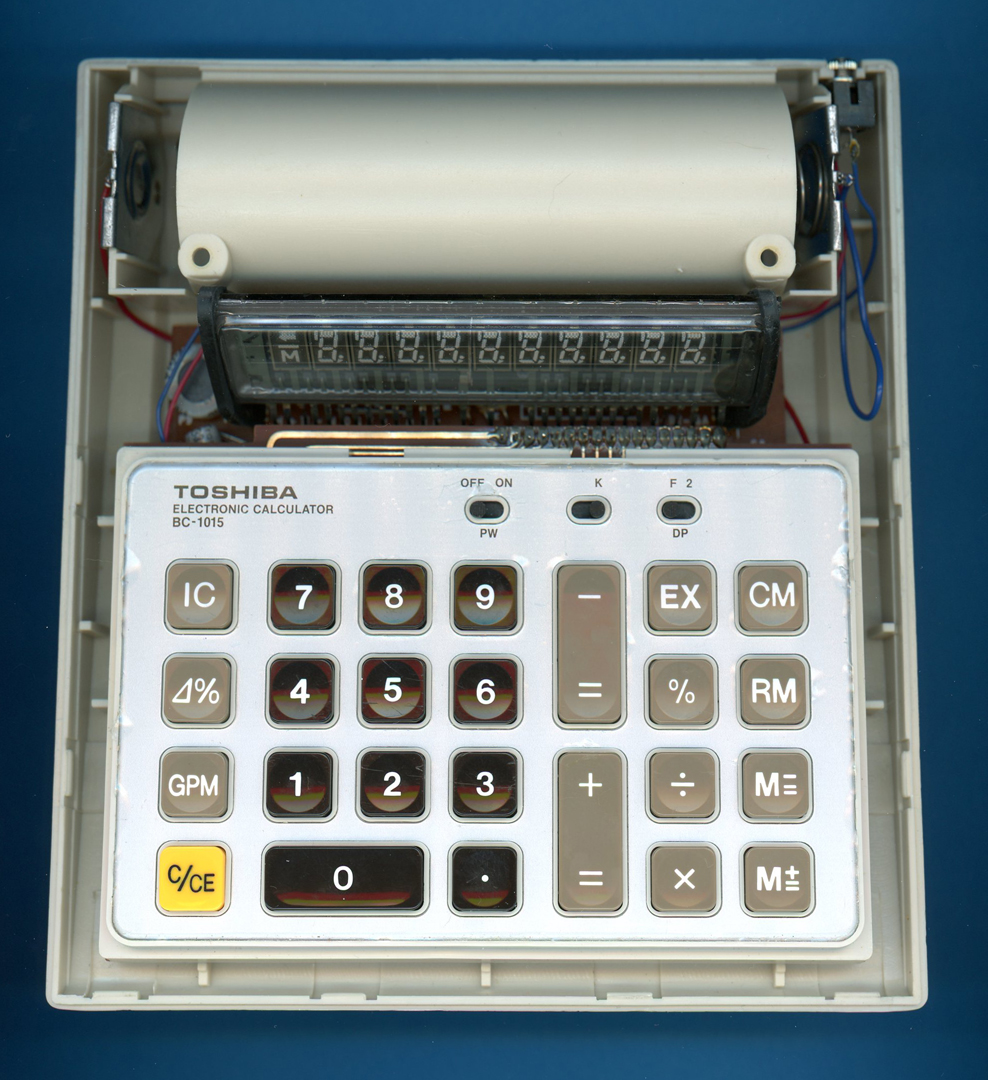

| The BC-1015 with front part of the
housing removed showing the battery compartment and
display.
|
| The printed circuit board (PCB)
of the BC-1015 is centered around a TMS1073 single-chip calculator circuit of the TMS1000 Family.
|

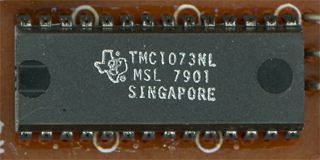

| The
Close-up
view of the TMS1073 single-chip calculator circuit.
|
| The Close-up
view of the FUTABA 11-BT-16A Vacuum Fluorescent Display (VFD).
|
If you have additions to the above article please email: joerg@datamath.org.
