Additional Pictures

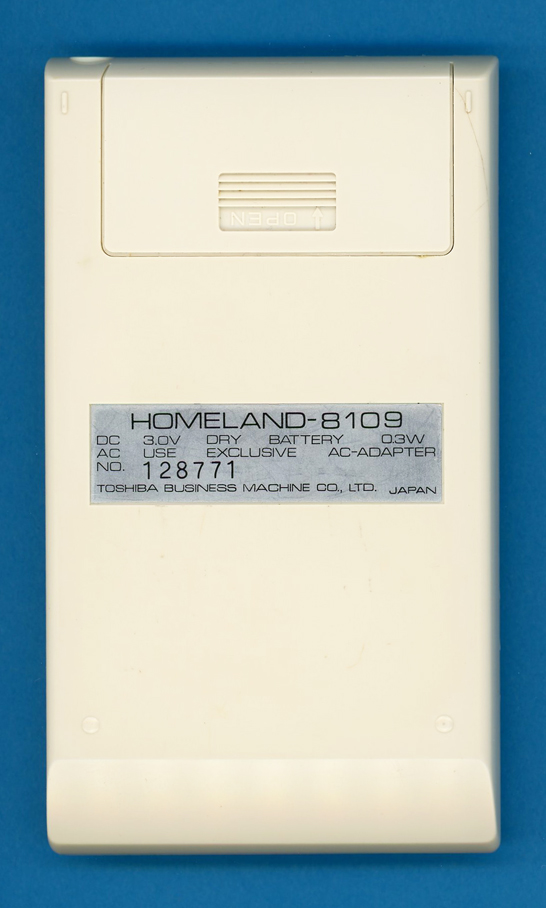

| This Homeland 8109
was
manufactured in July 1977 by Toshiba in Japan.
|

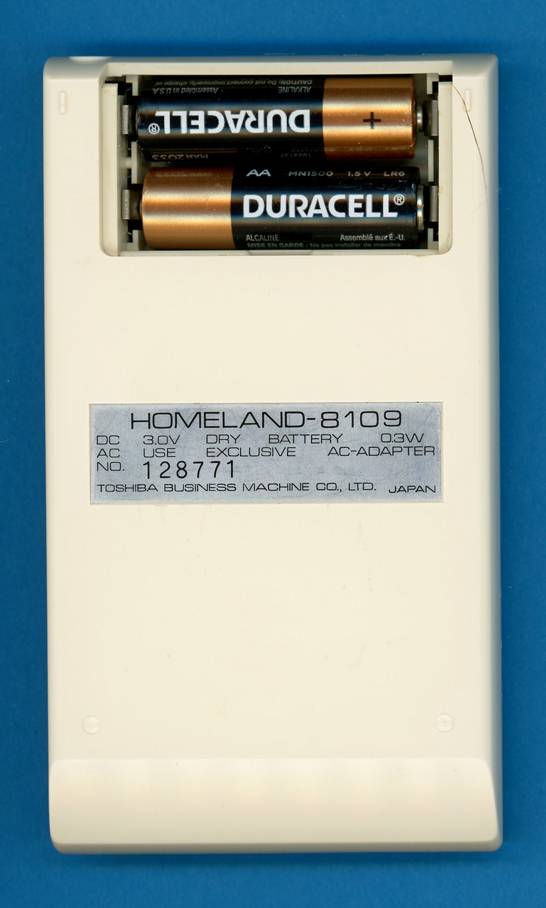

The Homeland 8109 calculator
is powered by two AA-size batteries. |

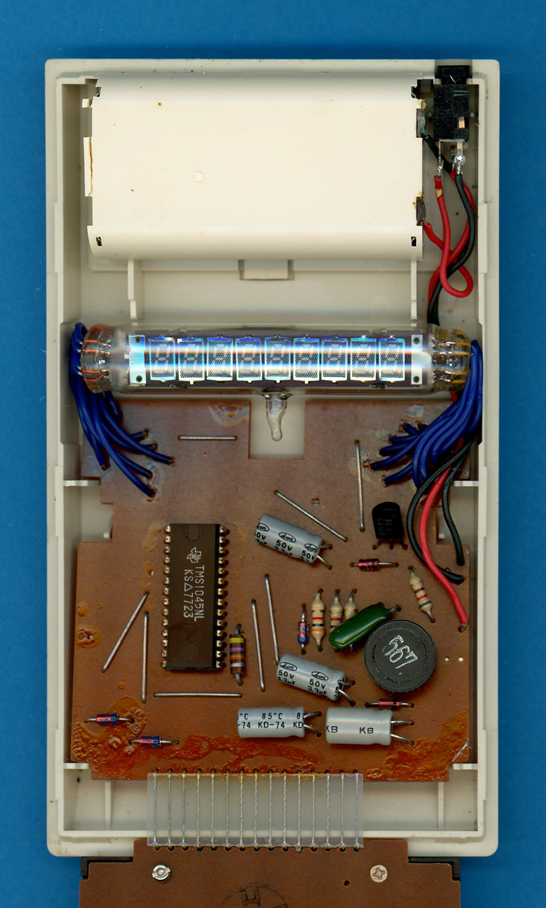

| The printed circuit board
(PCB) of the Homeland 8109 calculator is centered around a TMS1045 single-chip calculator circuit.
|

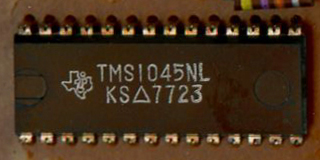

| The
Close-up
view of the TMS1045 single-chip calculator circuit.
|

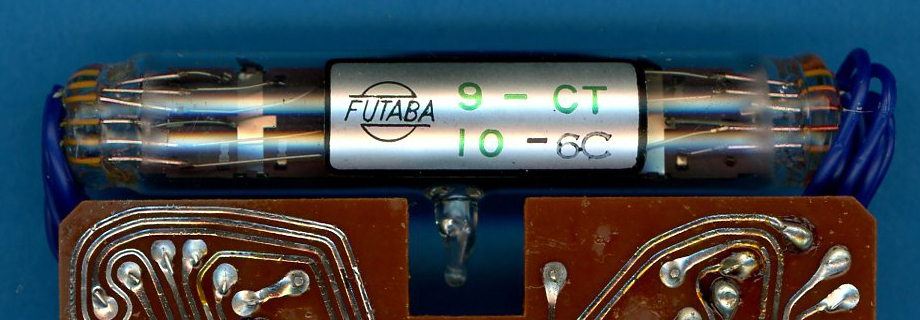

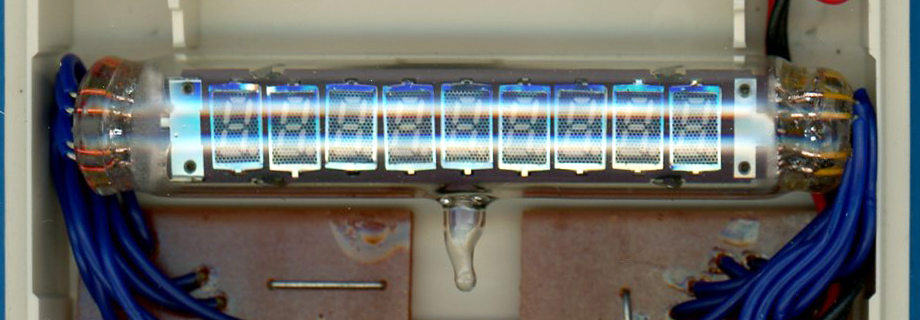

| The
Close-up
view of the FUTABA 9-CT-10 Vacuum Fluorescent Display (VFD).
|
