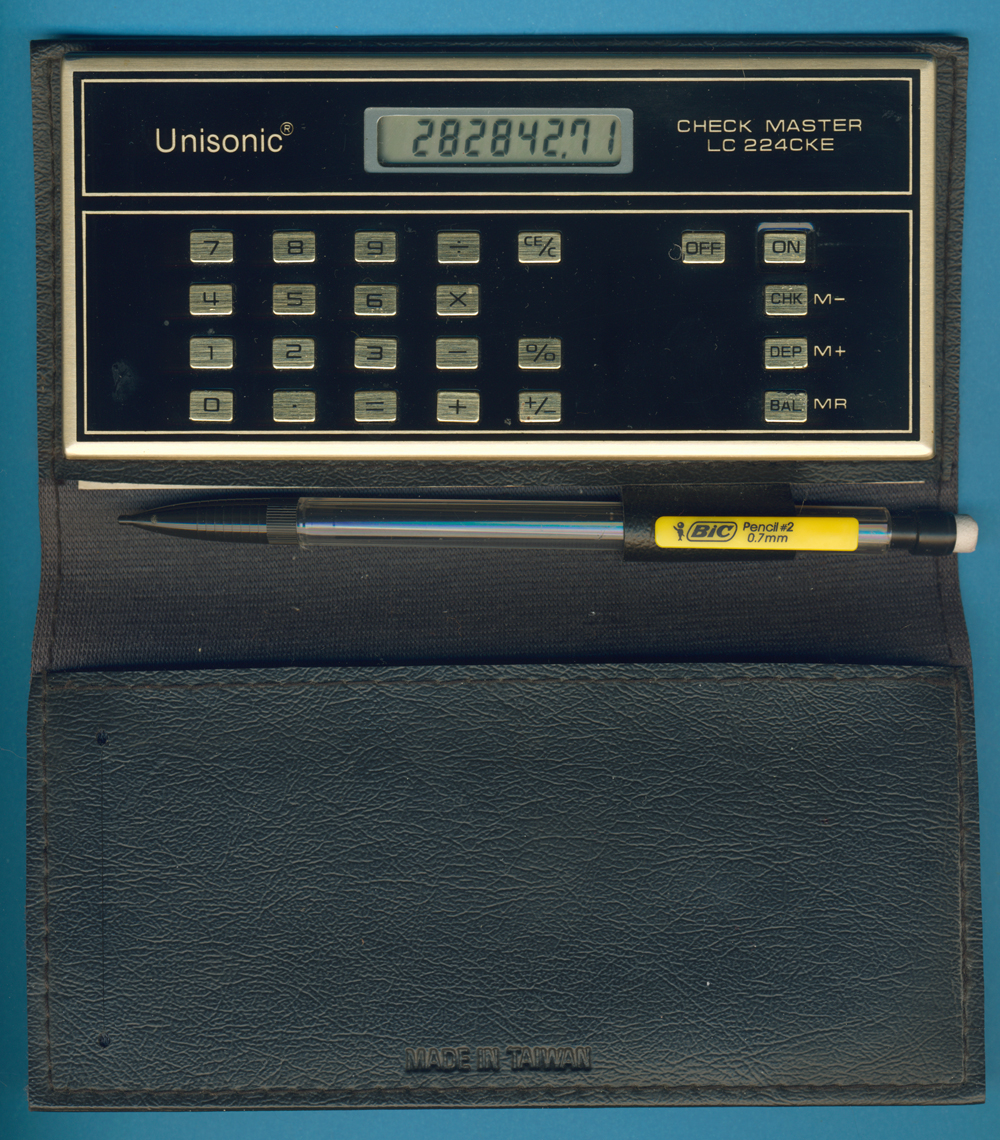

The LC 224CKE Check
Master in its
sleeve with holder for a checkbook and pen. |
|
This
Unisonic LC 224CKE Check Master calculator
was
manufactured in January 1983 in Taiwan.
|
|

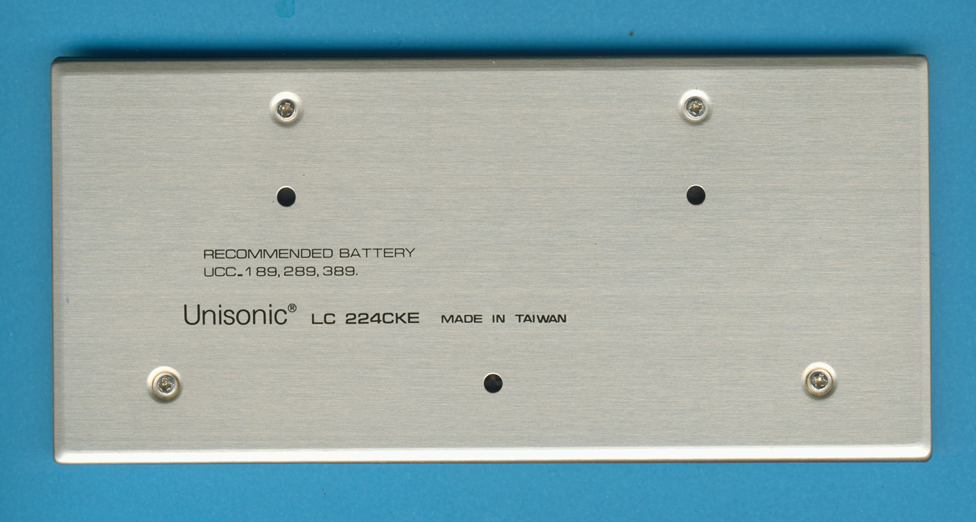

The Unisonic LC 224CKE calculator
is powered by two LR54 (LR1130) batteries. |
|

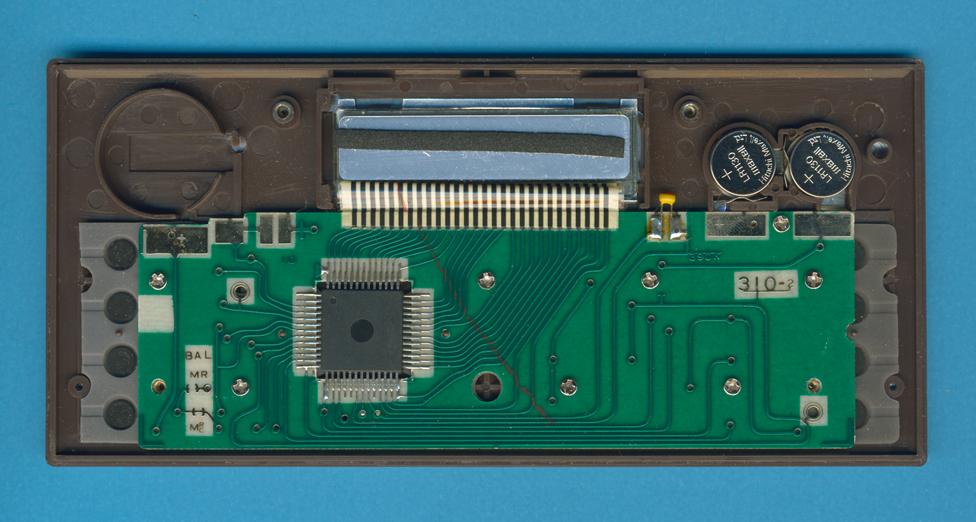

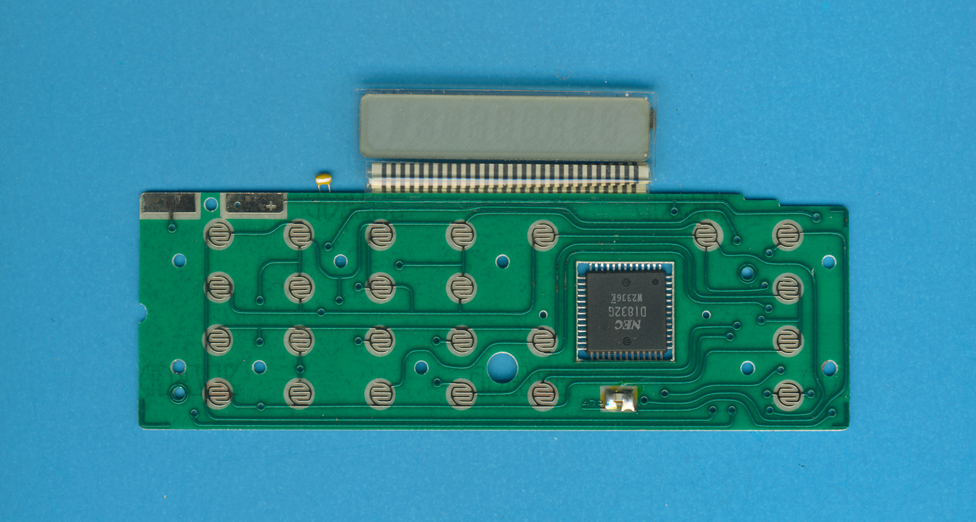

The printed circuit board
(PCB) of the Unisonic LC 224CKE calculator is centered around a NEC uPD1832G single-chip calculator circuit.
|
|
Close-up
view of the NEC uPD1832G single-chip calculator
circuit.
|

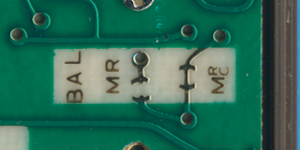

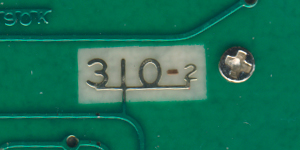

Close-up view of the PCB-Mark and jumper of the LC
224CK. |
