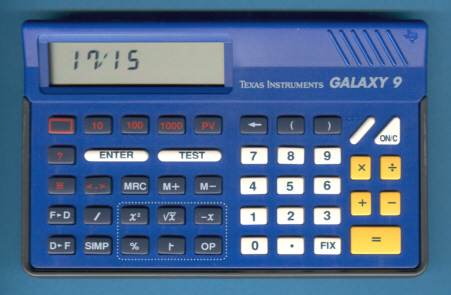

Texas Instruments Galaxy 9 (2nd design)

Date of introduction:  1993 Display technology:  LCD
New price:   Display size:  8
Size:  3.4" x 5.5" x 0.65"
 87 x 140 x 17 mm3

Weight:  3.8 ounces, 108 grams Serial No:
Batteries:  CR2032 Date of manufacture:  wk 07 year 1995
AC-Adapter:   Origin of manufacture:  Italy
Precision:  11 Integrated circuits:  Toshiba T6A60
 (PN1111273)
Memories:  1
Program steps:   Courtesy of:  Joerg Woerner

Galaxy9_BACK.jpg (364485 Byte)The Galaxy 9 is almost identical to the Galaxy 9x introduced one year earlier. The only difference is one key, we know similiar sibblings with the German Galaxy Junior and the French Galaxy 10.

The first design of the Galaxy 9 - introduced already in 1991 - received after two years a slightly changed color scheme. The pictured Galaxy 9 was manufactured in the year 1995 and still available in 2002 at an airport shop in Lisboa (Portugal).

Galaxy9_PCB.jpg (281492 Byte)Dismantling the Galaxy 9 reveals a small surprise, the calculator is 100% identical with the Galaxy 9x.

Galaxy9_IC.jpg (113091 Byte)The Toshiba T6A60 single-chip calculator circuit found in this Galaxy 9 manufactured early in 1995 reads a Texas Instruments part number "1111273-4021", probably a ROM-Code identifier of the embedded software.

The spirit of this calculator was repeated with the TI-15 introduced in 1999.


horizontal rule

If you have additions to the above article please email: joerg@datamath.org.

Joerg Woerner, December 5, 2001. No reprints without written permission.
