Additional Pictures

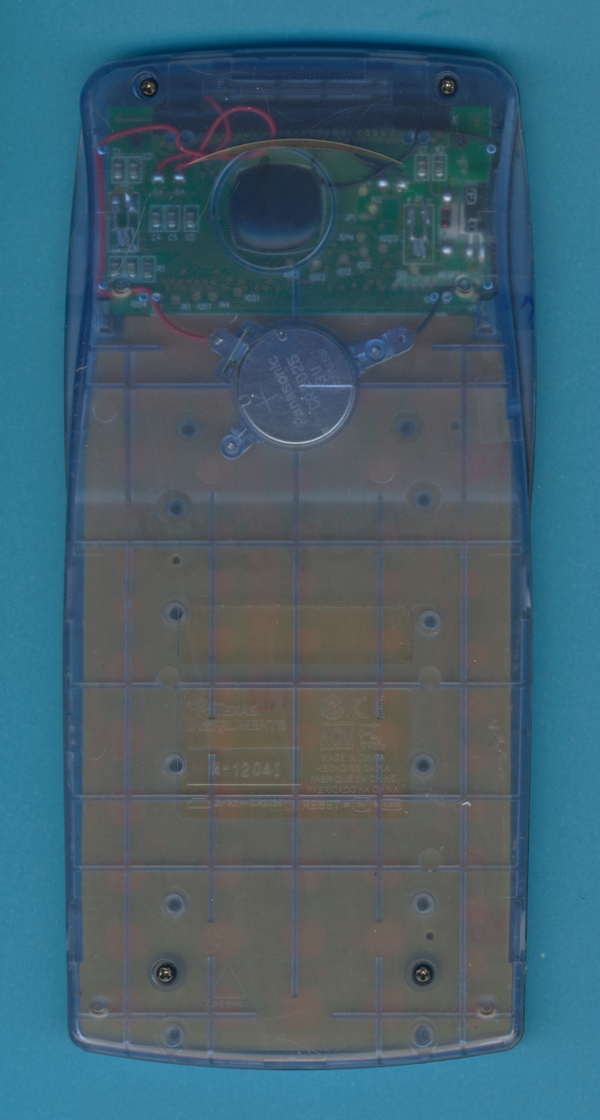

This TI-15 Explorer was manufactured in December 2004 by
Nam Tai Electronics in China (Date code N-1204I » mth 12 yr 2004).

The printed circuit board (PCB) of the TI-15 Explorer is centered
around an unknown single-chip calculator circuit.

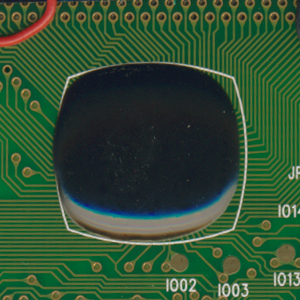

Close-up view of the unknown single-chip calculator circuit.
