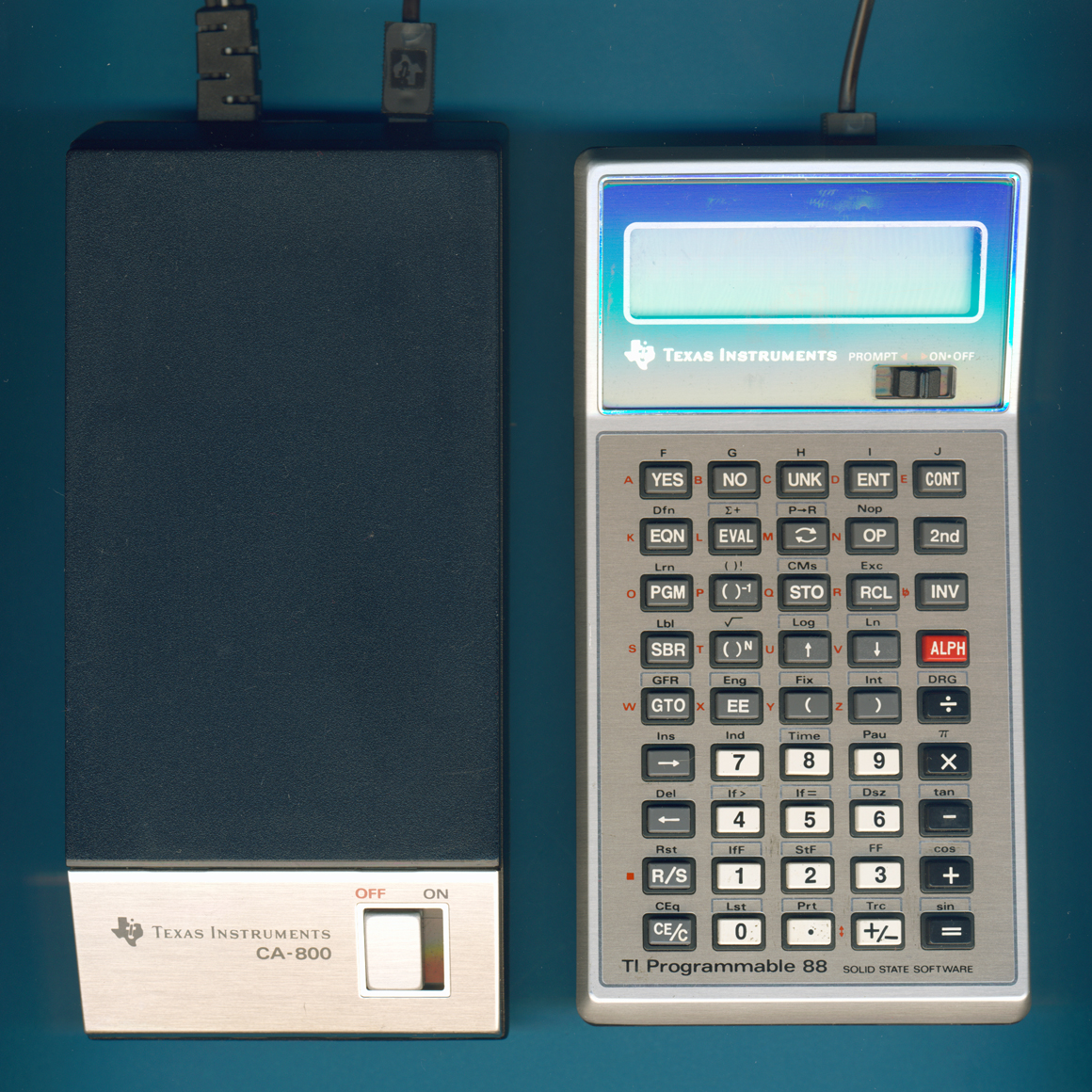

The CA-800 Cassette Interface connected to a TI Programmable 88.

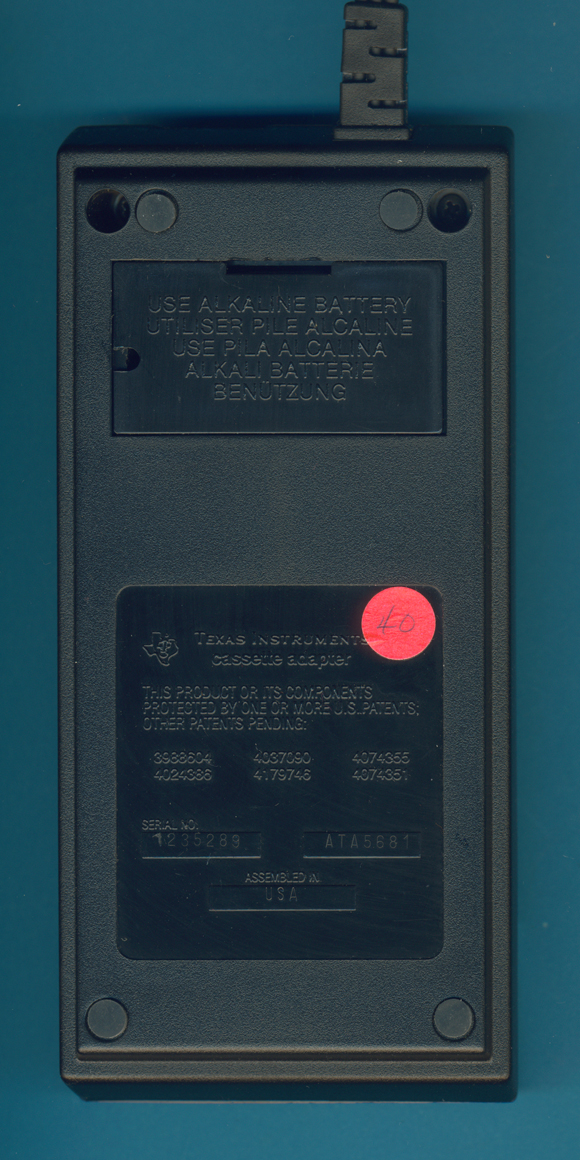

This Texas Instruments CA-800 was most likely manufactured in April 1982 by
Texas Instruments in Abilene, TX (Date code ATA 5681 » (sic)).

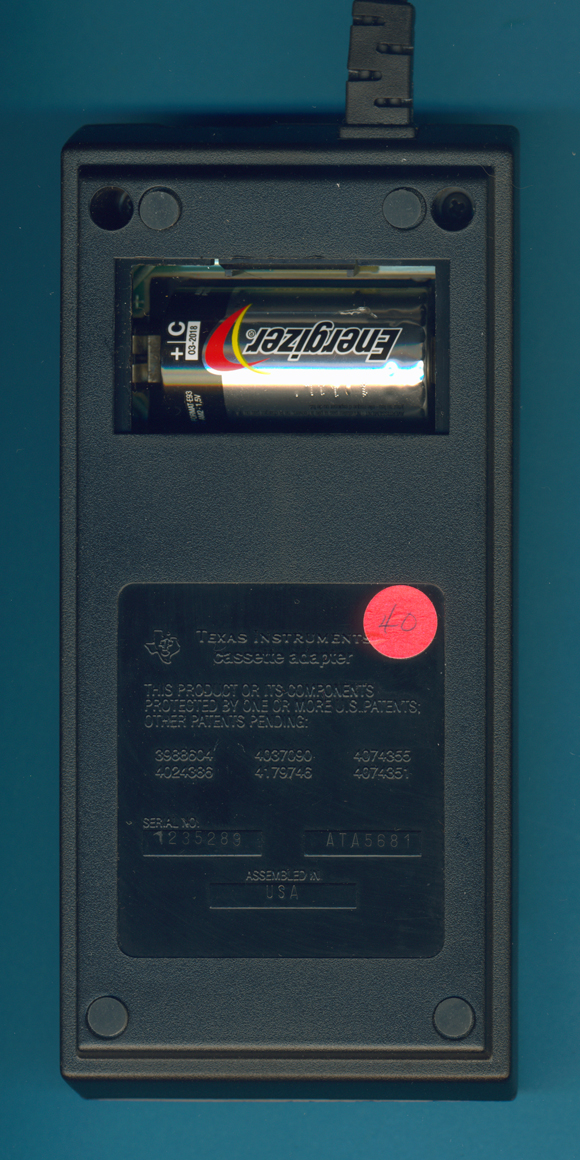

The Texas Instruments CA-800 Cassette Interface is powered with a single Alkaline C-size battery.

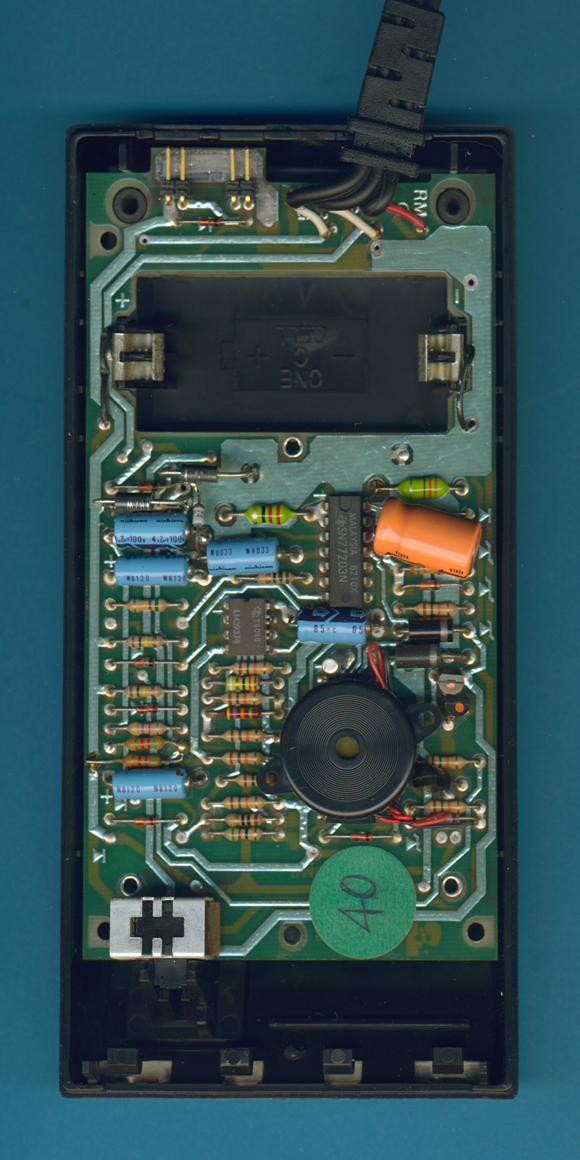

The printed circuit board (PCB) of this CA-800 Cassette Interface is centered around a TP0456 microcontroller.

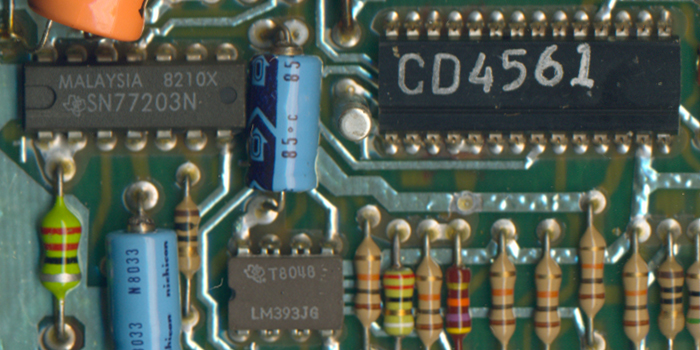

Close-up view of the Main Integrated Circuits of the CA-800 Cassette Interface.

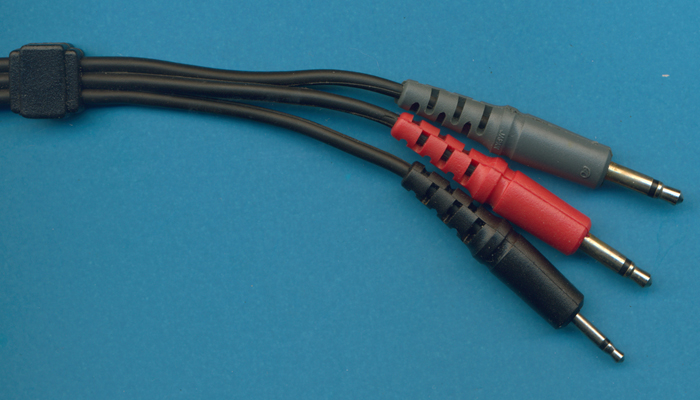

The three color-coded plugs of the CA-800 Cassette Interface connecting to the tape recorder.
