This Texas Instruments PC-800 was manufactured in August 1982 by
Texas Instruments in Abilene, TX (Date code ATA 3482 » wk 34 yr 1982).

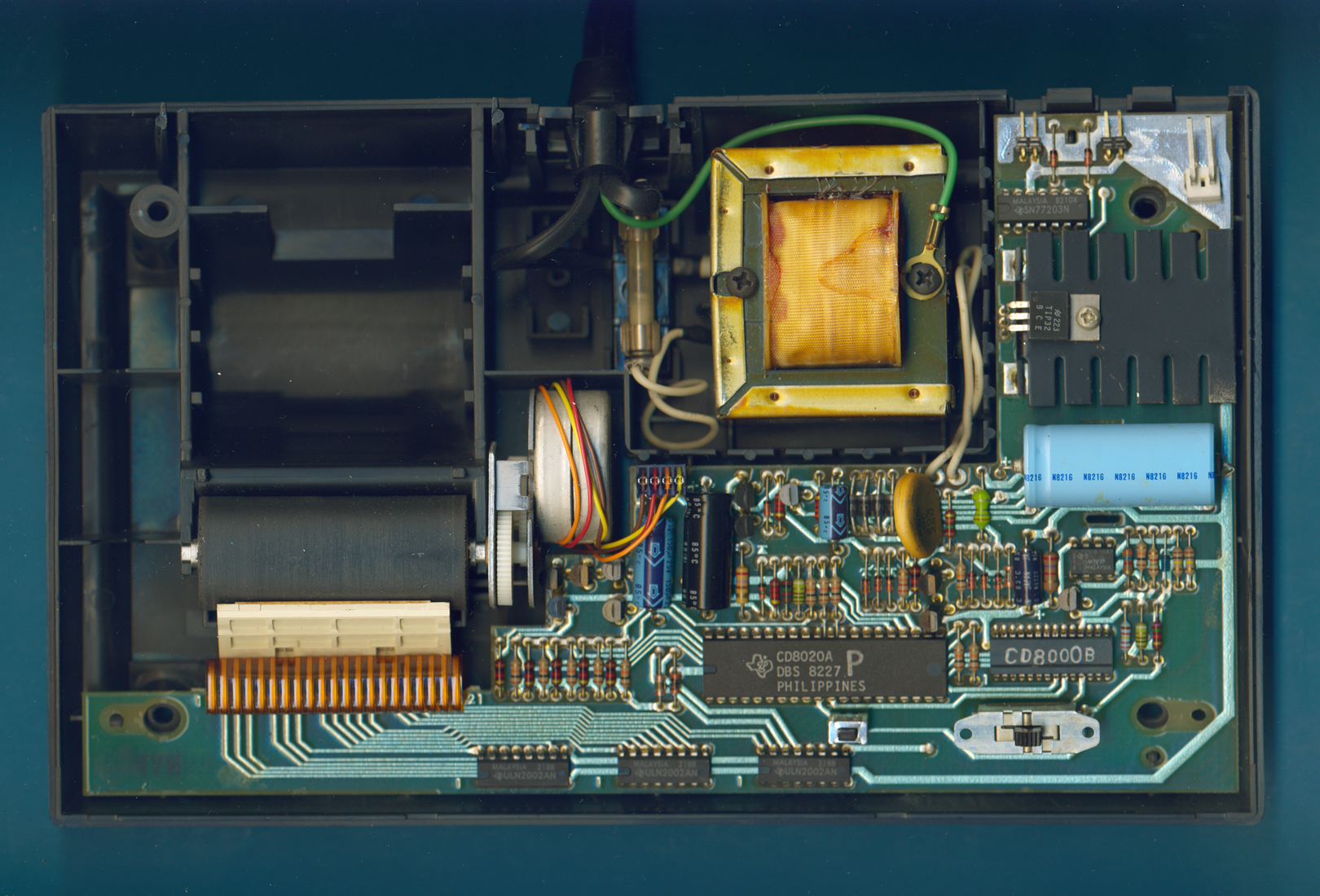

The printed circuit board (PCB) of this PC-800 Printer is centered around two TMS1000/CD8000 and TMS1300/CD8020 microcontrollers.

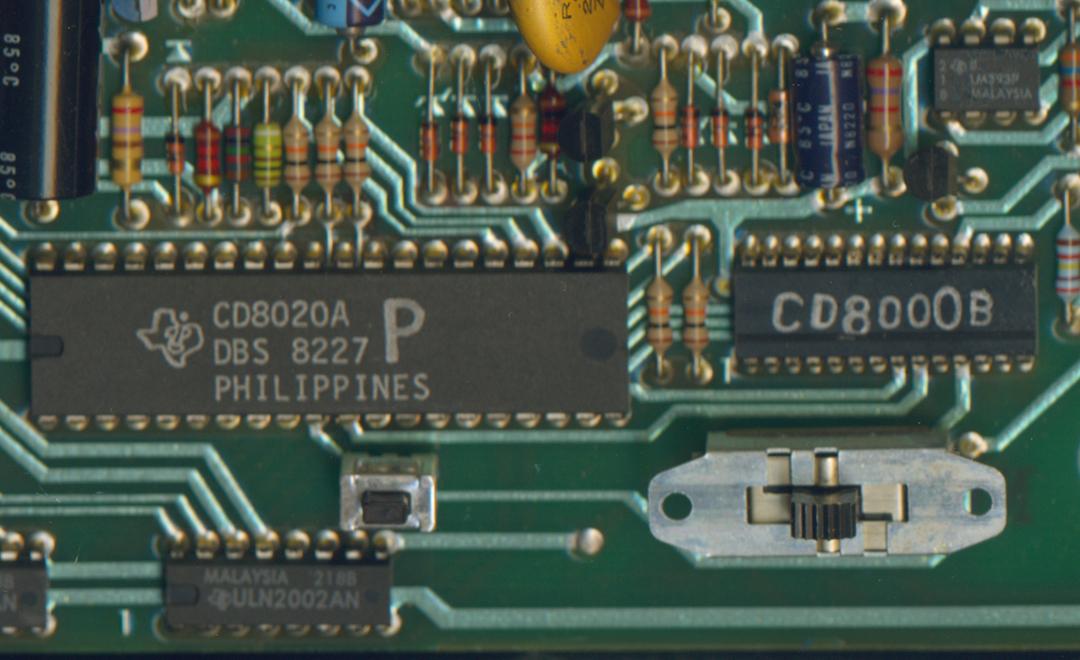

Close-up view of the Main Integrated Circuits of the PC-800 Printer.

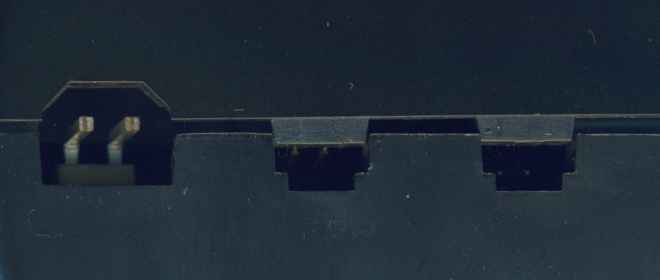

The rearview of the PC-800 Printer with the two Peripheral I/O connectors
and a third connector for DC operation.

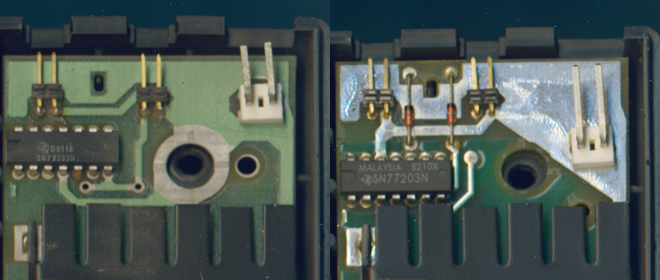

The PCBs of the PC-800 from the PVT build (picture on the right) added two diodes to the
Peripheral I/O connectors and changed the position of the third connector slightly.
