Additional Pictures
|

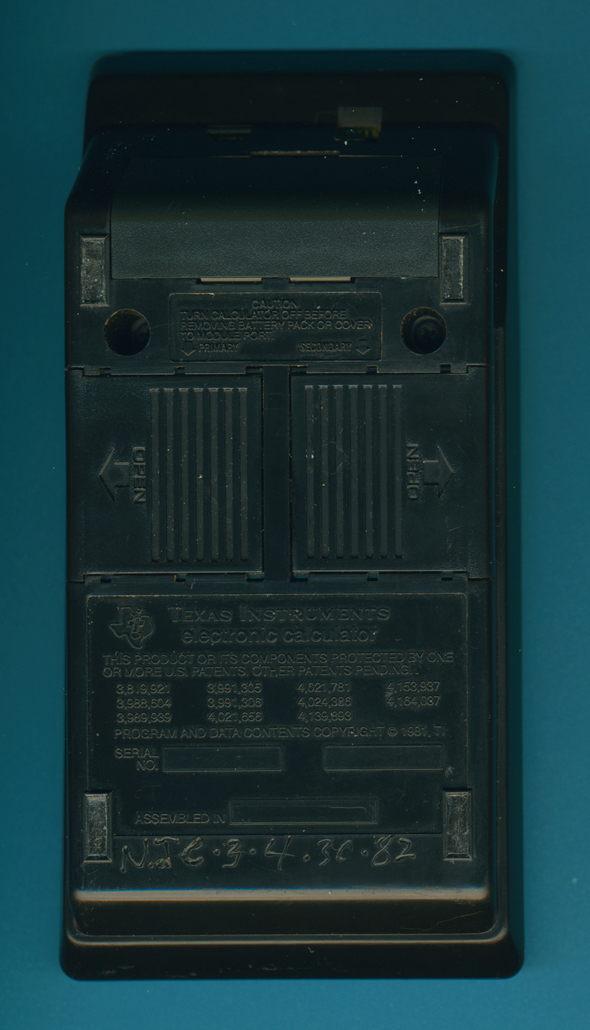

This Texas Instruments TI-88 "EVT 1 (Engineering
Validation Test 1) Build" was manufactured
in April 1982 by
|
|

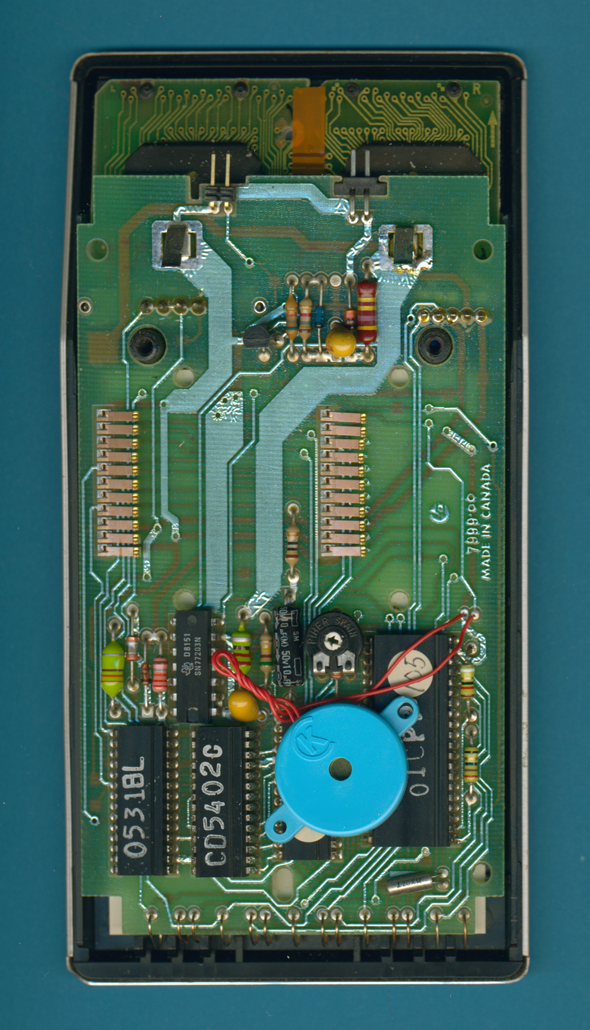

| The printed circuit board
(PCB) of the TI-88 is centered around two 4-bit microcontroller, two RAM and one ROM chip, each.
|
|
| The alphanumerical
LC-Display in connected with just 5 pins to the Main PCB
of the TI-88. The keyboard technology with wired embedded in plastic and snap-domes is well known from the TI-55-II.
|
|
|

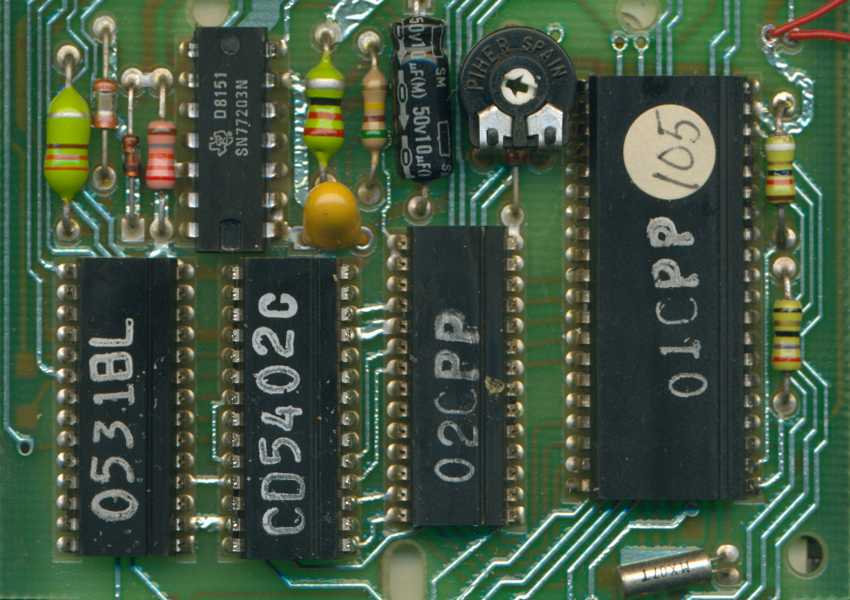

Close-up
view of the Main Integrated Circuits of the TI-88 "EVT 1 Build" with Serial Number
NTC-3-4-30-82.
|
|
| The
rechargeable battery pack of the TI-88 with just one AA-sized NiCd battery in a small plastic housing.
|
|

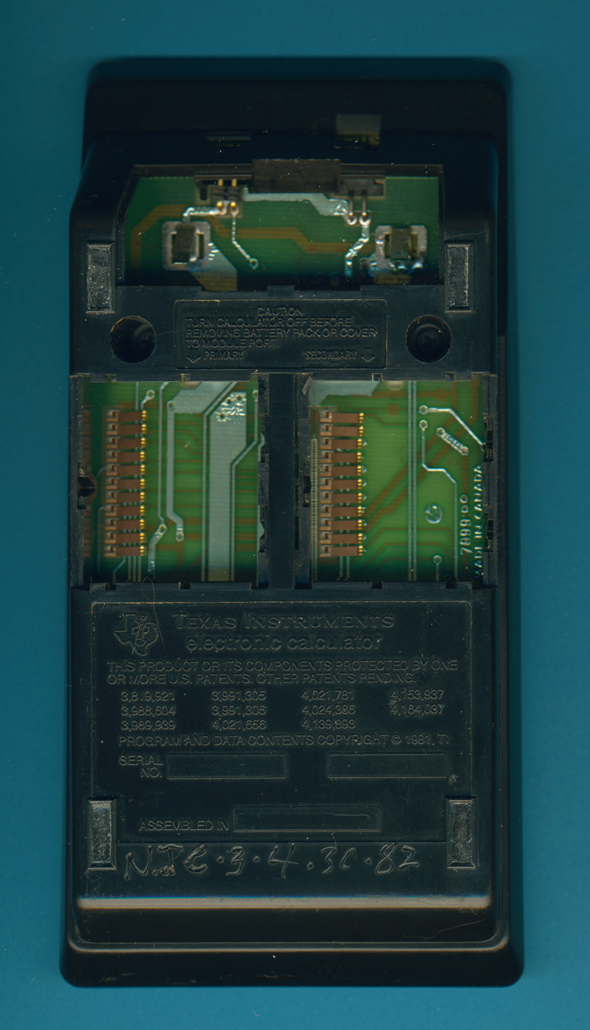

| The rear
view of the TI-88 with both the Modules and rechargeable battery removed.
|
|

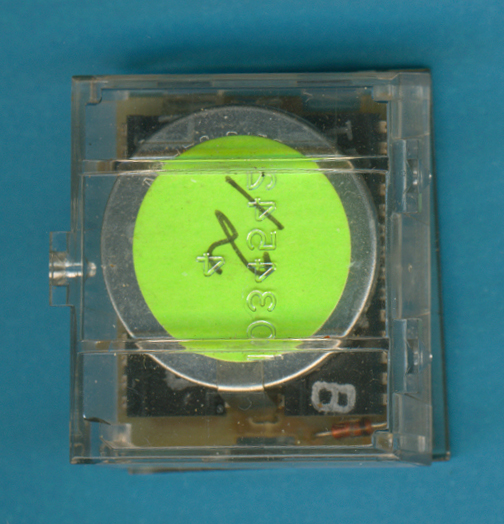

| The Constant Memory or
CRAM-Module as user programmable memory with
either 1,184 program steps or 148 user memories.
|

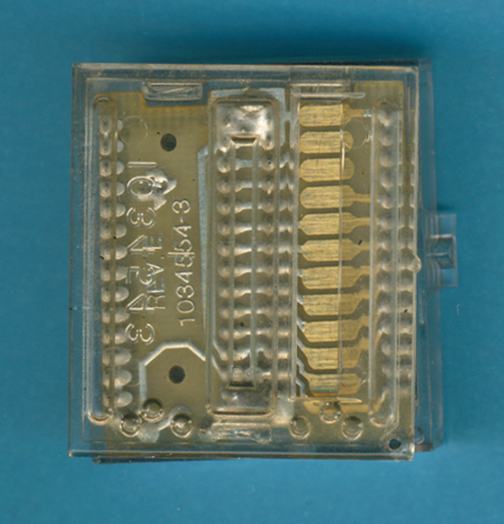

The 11 contacts of the Constant Memory or CRAM-Module with Power Supply, 4 Data I/O-lines, 2 Chip Select signals, Clock and Serial I/O.  |
| The
cover of the CRAM-Module removed.
|
The PCB of the CRAM Module with the 3 Volts
backup battery. |
| The
PCB of the CRAM-Module with the TP0531 RAM Chips.
|
|
| The
CROM-Module as pre-programmed software like the
earlier TI-58C/TI-59 Solid State Software™ modules with up
to 15,000
program steps.
|

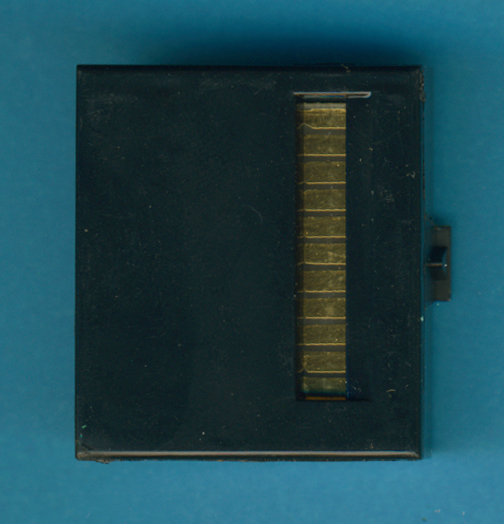

The 11 contacts of the
Solid State Software or CROM-Module with Power Supply, 4 Data I/O-lines, 2 Chip Select signals, Clock and Serial I/O.  |
| The
cover of the CROM-Module removed.
|
The PCB of the Master Library Module with the TP0532
ROM Chip. |
