DATAMATH  CALCULATOR  MUSEUM

Additional Pictures

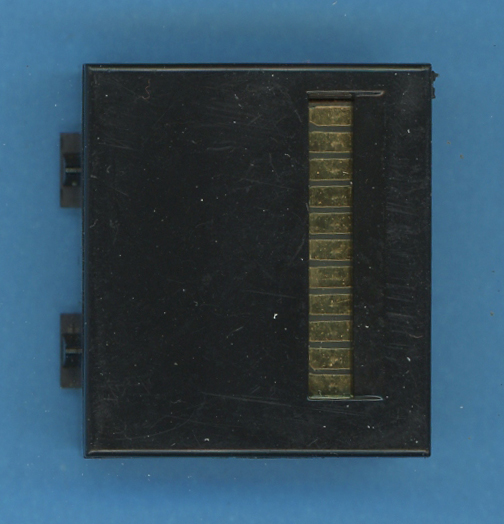

This MASTER LIBRARY-1 SSSM for the TI-88 was manufactured in September 1981 by
Texas Instruments in Abilene, TX (Date code ATA 3981 » wk 39 yr 1981).

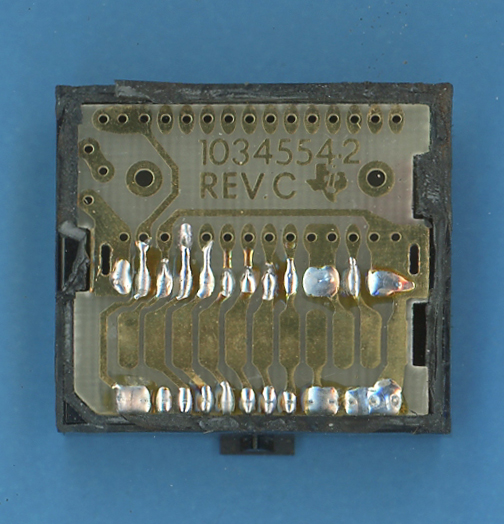

The printed circuit board (PCB) of the MASTER LIBRARY-1 Solid State
Software Module can accommodate up to two TP0531/TP0532 Memory Chips.

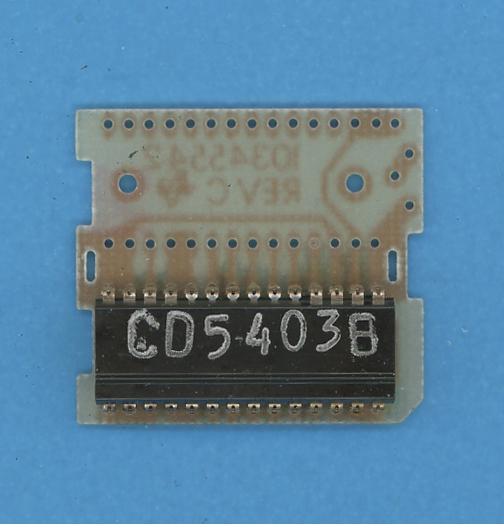

The MASTER LIBRARY-1 Solid State Software Module
uses one TP0532 Read Only Memory (ROM) with Custom software CD5403.


horizontal rule

If you have additions to the above article please email: joerg@datamath.org.

© Joerg Woerner, December 18, 2020. No reprints without written permission.
