Additional Pictures

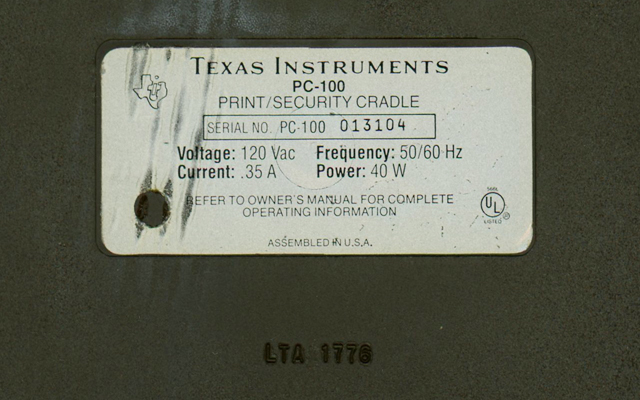

This PC-100 Printer Cradle was manufactured in April 1976 by
Texas Instruments in Lubbock, Texas (Date code LTA 1776 wk 17 yr 1976).

 The SR-56 : SR-52 selector.

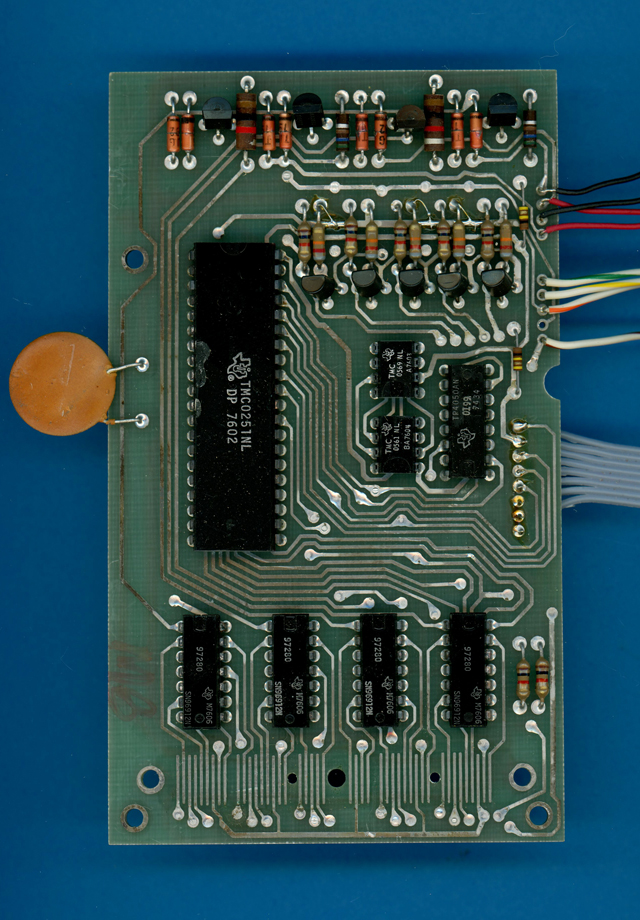

The Main printed circuit board (PCB) of the PC-100 Printer Cradle is centered around the TMC0251
Printer Chip and TMC0561/0561 BROM Chips and supported by four Driver Chips for the Printing Head.

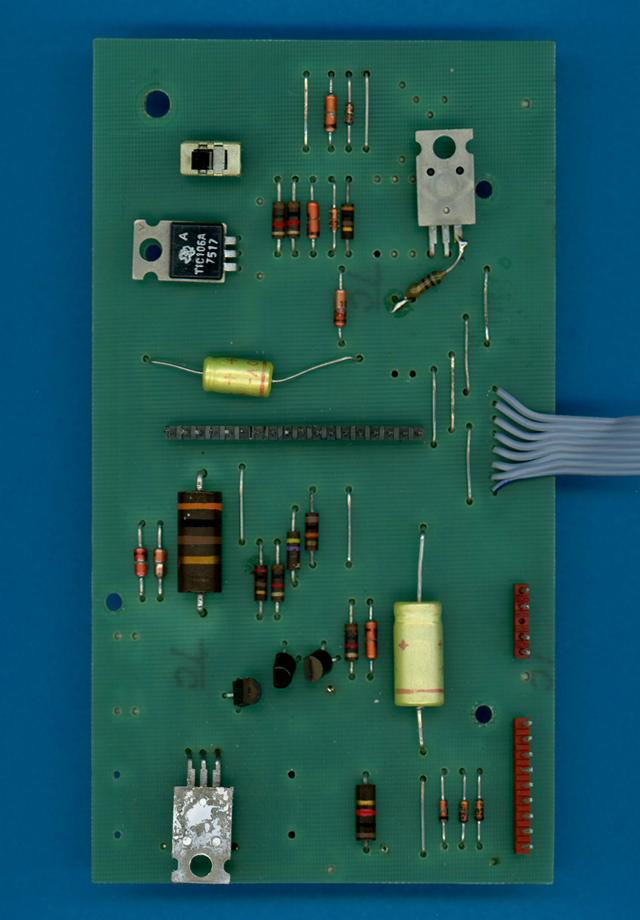

The second PCB of the PC-100 Printer Cradle provides the different power supply
voltages and three diodes for the Printer Cradle detection/switches.

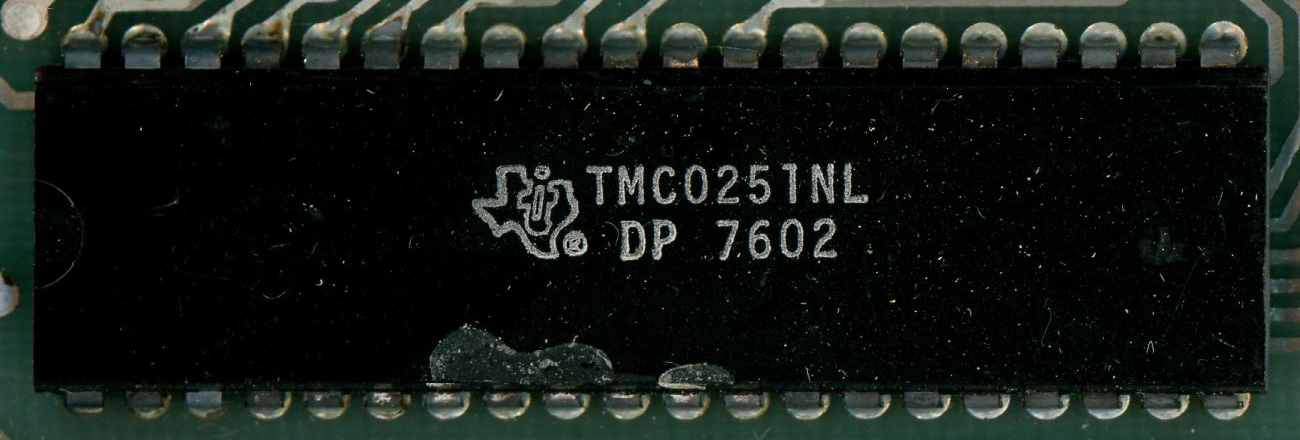

Close-up view of the TMC0251 Printer/Display Chip.

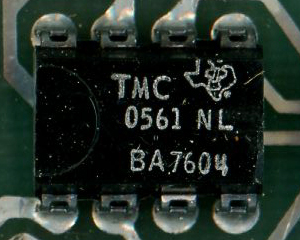

Close-up view of the TMC0561 BROM Chip with the SR-52 Firmware for Printing.

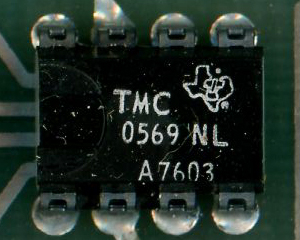

Close-up view of the TMC0569 BROM Chip with the SR-56 Firmware for Printing.

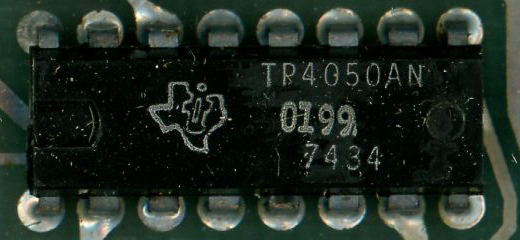

Close-up view of one of the TP4050AN Clock Buffer Chip.

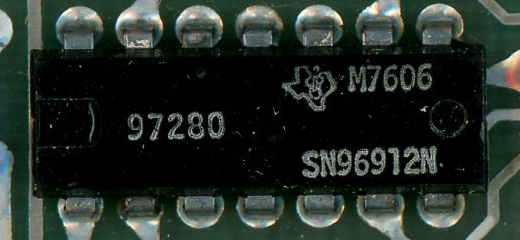

Close-up view of one of the SN96912N Driver Chips for the Thermal Printer Head.


horizontal rule

If you have additions to the above article please email: joerg@datamath.org.

Joerg Woerner, September 25, 2002. No reprints without written permission.
