Additional Pictures
| The two printed circuit
boards (PCBs) of the PC-100. The main electronics
is centered around the TMC0251 Printer Chip from the TMS0200 series. Please notice the two additional TMC0561 and TMC0569 BROMs (Bare Read-Only Memories) in the small 8-pin packages to support the SR-52 resp. SR-56.
 |

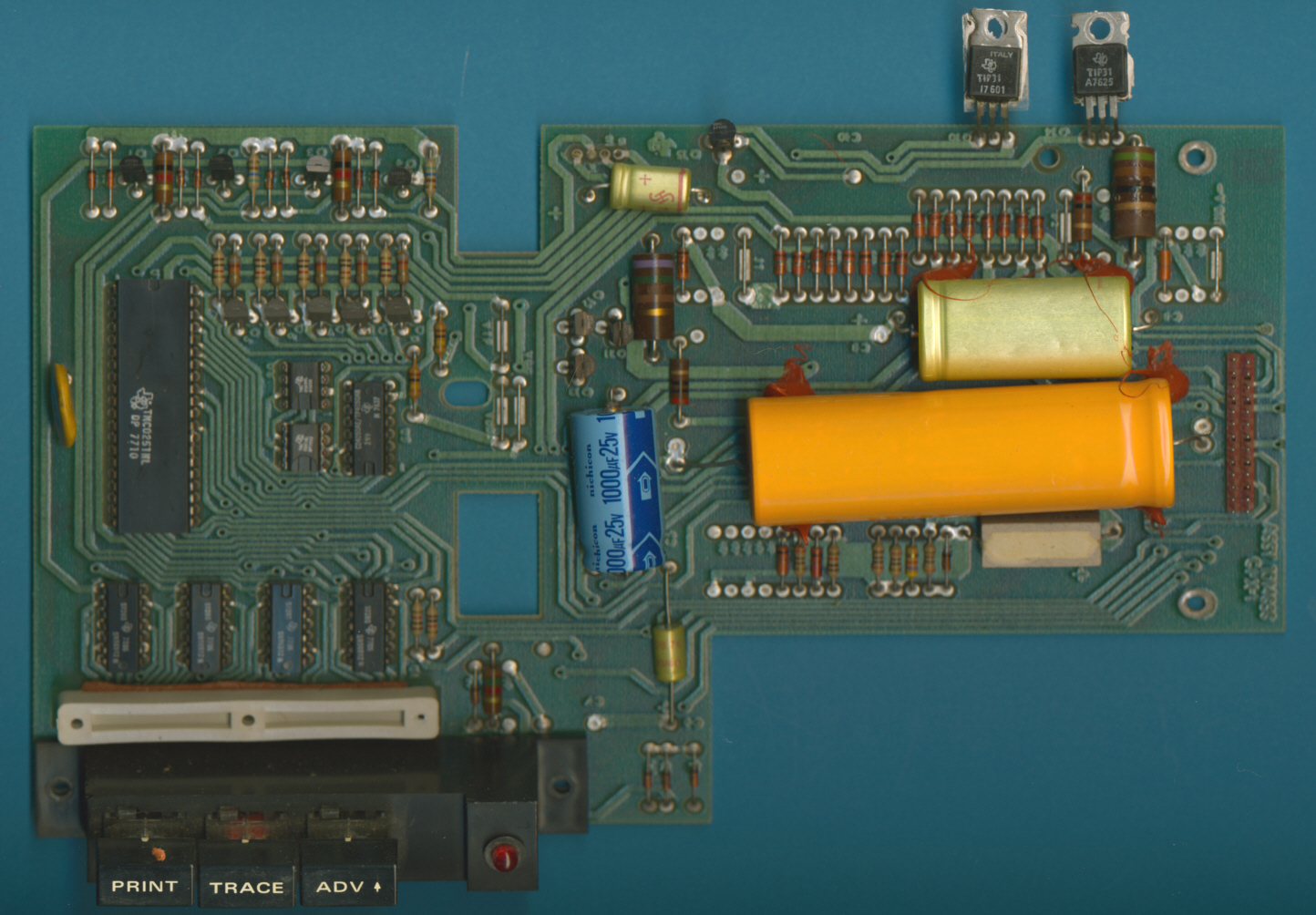

| The printed circuit
board (PCB) of the PC-100A. The main electronics
is centered around the TMC0251 Printer Chip from the TMS0200 series. Please notice the two additional TMC0561 and TMC0569 BROMs (Bare Read-Only Memories) in the small 8-pin packages to support the SR-52 resp. SR-56.
|
| The printed circuit
board (PCB) of the PC-100C. The main electronics
is centered around the TMC0251 Printer Chip from the TMS0200 series. The two additional TMC0561 and TMC0569 ROM to support the SR-52 resp. SR-56 are obviously missing.
|
