Additional Pictures
|

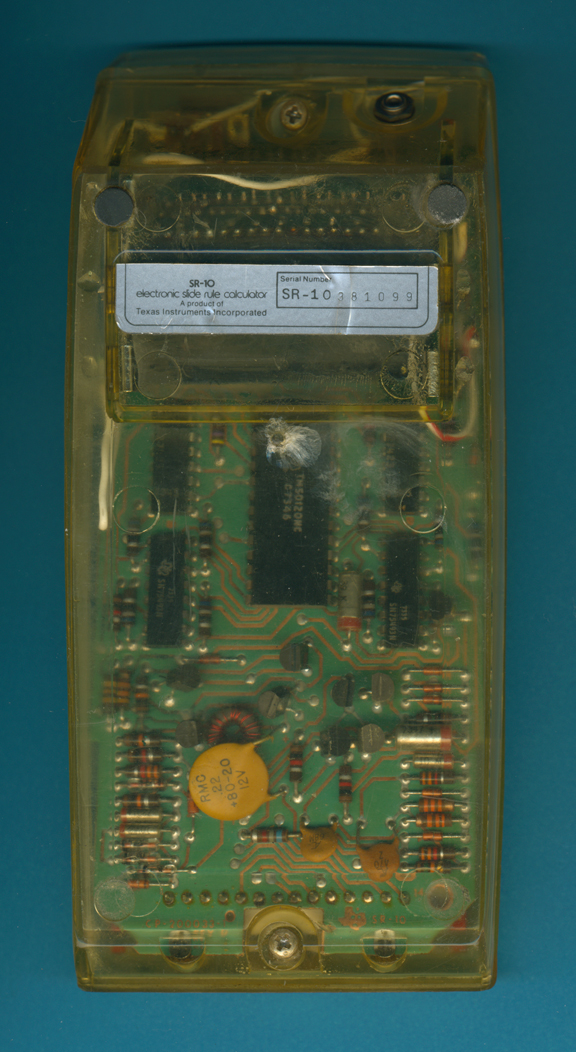

This SR-10 Prototype was manufactured in November 1973 by Texas Instruments.
|

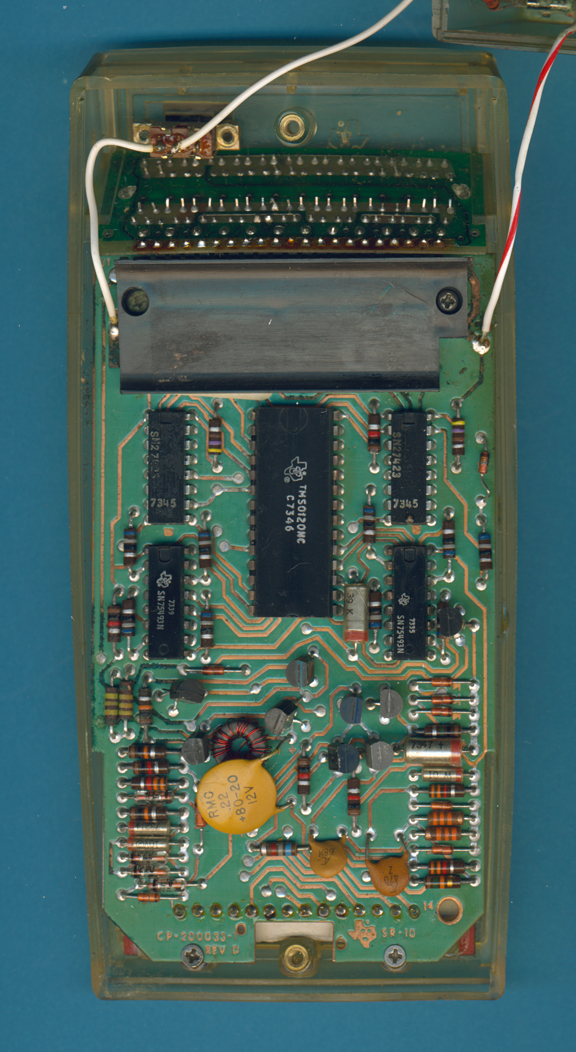

| The double-sided printed circuit board
(PCB) of the SR-10 Prototype.
|

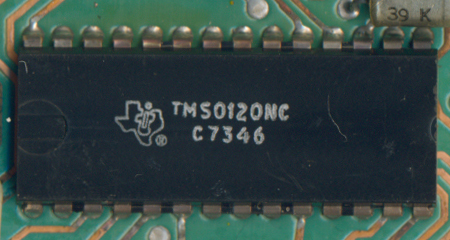

| Close-up
view of
the TMS0120 single-chip calculator circuit.
|
