Additional Pictures

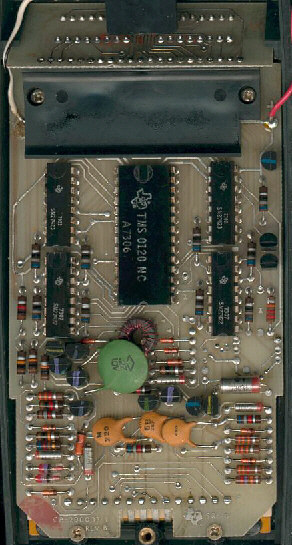

The first version of the SR-10 uses the
6-digit display modules known from the
Datamath calculator.

The second version of the SR-10 with
12 discrete LED-modules similar to the
ones used later with the SR-50.

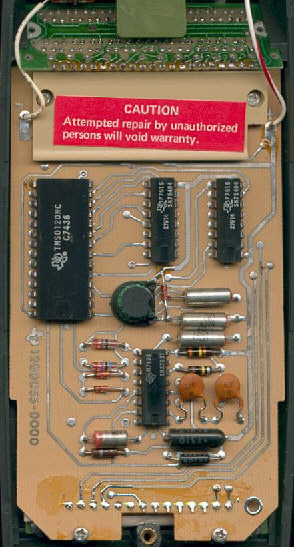

Final SR-10 without segment drivers for
the display module.
