Additional Pictures

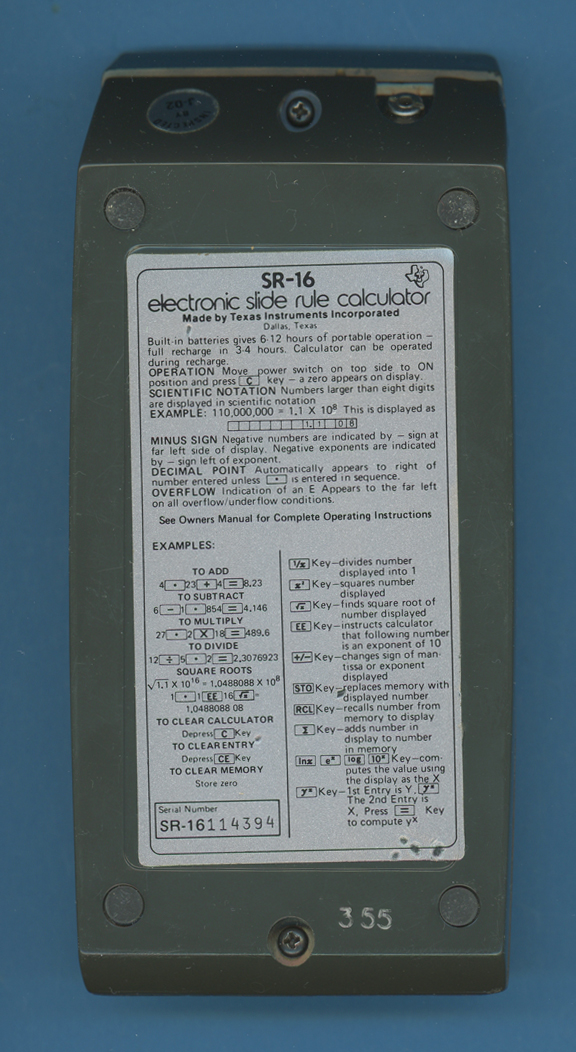

This SR-16 from a late production run was manufactured in August 1975 by
Texas Instruments in Lubbock, TX (Date code 355 wk 35 yr 1975).

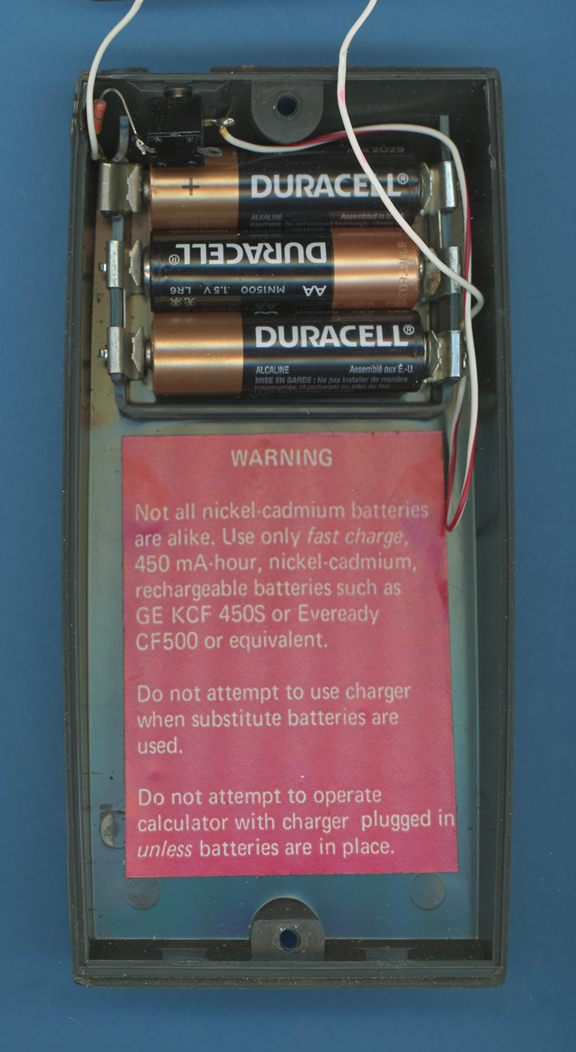

The SR-16 is powered by 3 AA batteries.

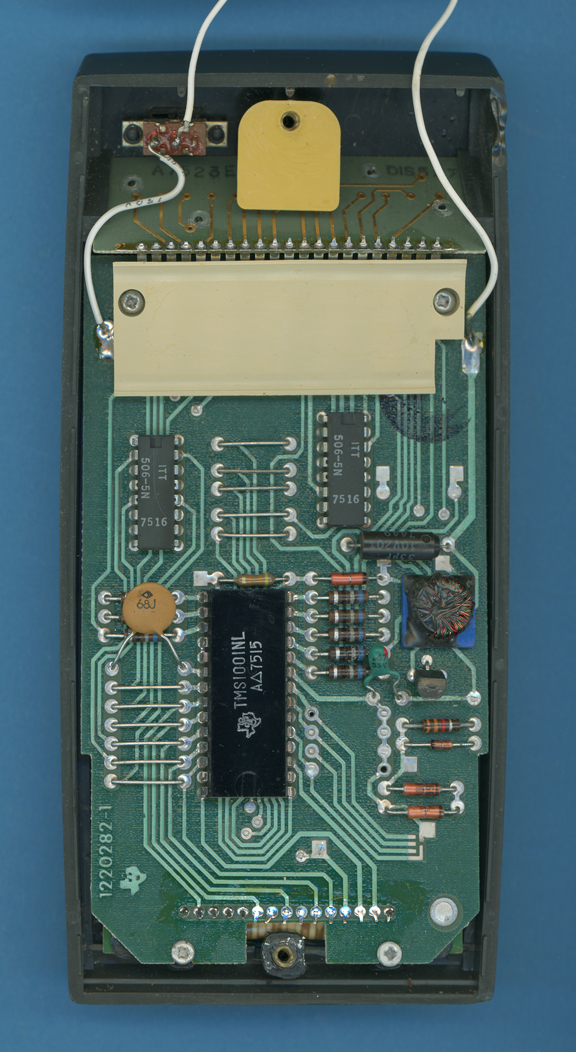

The printed circuit board (PCB) of the SR-16 is centered
around a TMS1000 4-bit Microcomputer.
