Additional Pictures

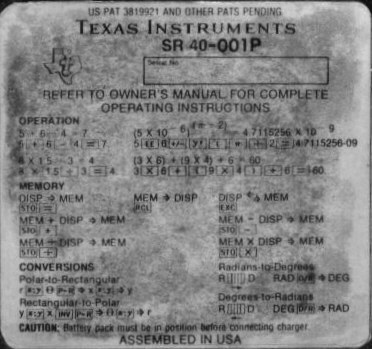

| The sticker
on the backside of the SR-40 with an impressive serial number: 001P or 1st Prototype.
|

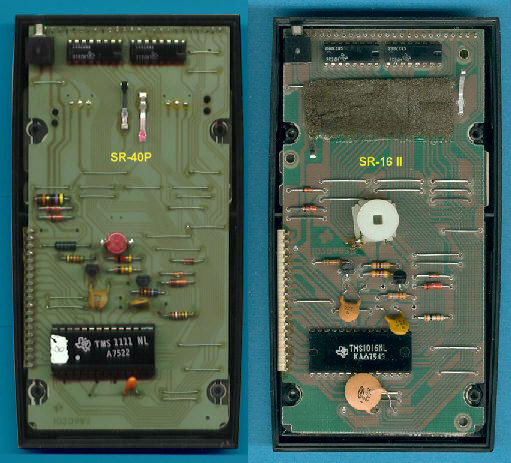

| The printed circuit board
(PCB) of the SR-40 is similar to the later SR-16
II. Please notice the different arrangement of the battery contacts, the TMS1111 using a socket and the small coil of the power supply.
|
| The display
of the SR-40 with a standard 14 digit stripe known from the SR-50A.
|
