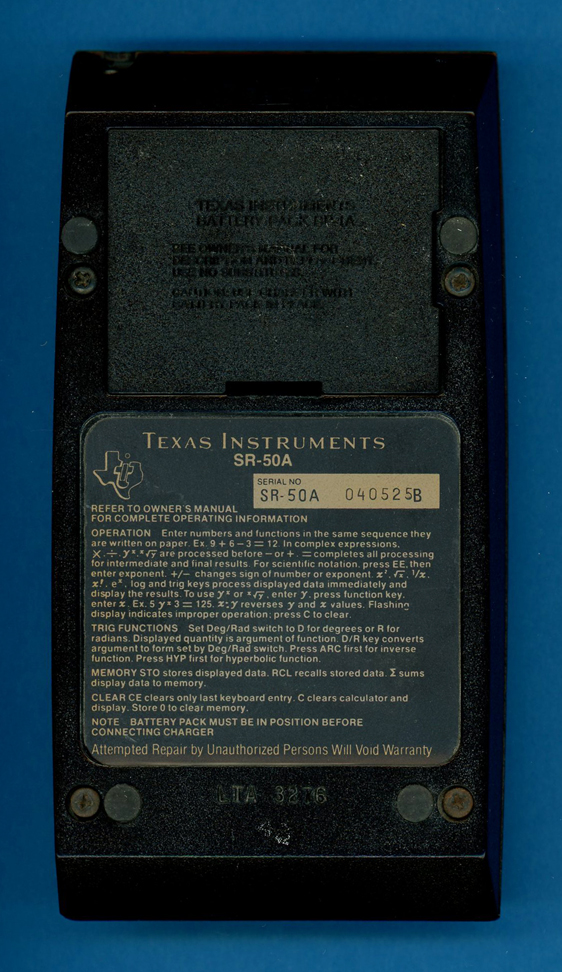

This SR-50A (Version 2) was manufactured in August 1976 by
Texas Instruments in Lubbock, Texas (Date code LTA 3276 » wk 32 yr 1976).

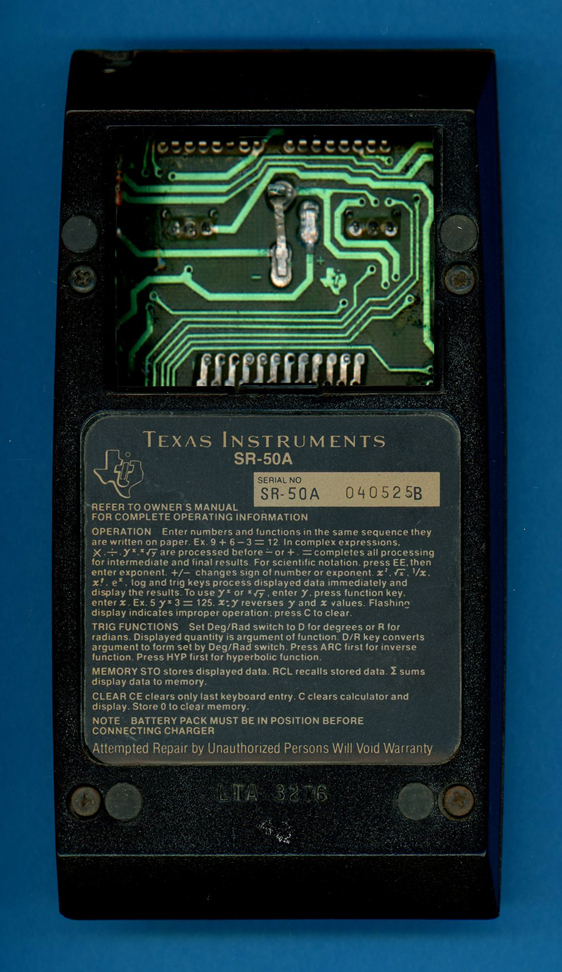

The battery compartment of the SR-50A.

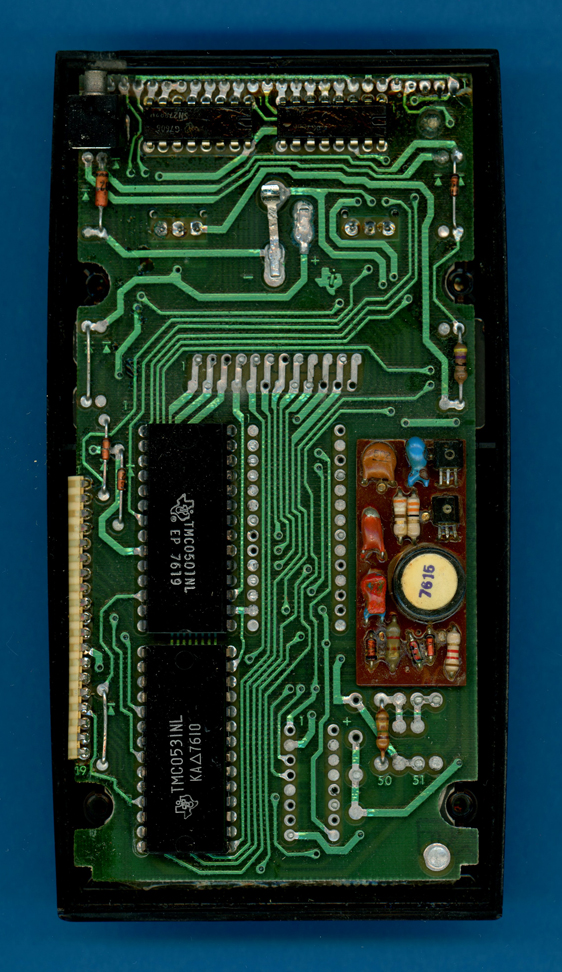

The Main printed circuit board (PCB) of the SR-50A calculator is centered around the
TMC0501 and TMC0531 chips supported by only few discrete components.

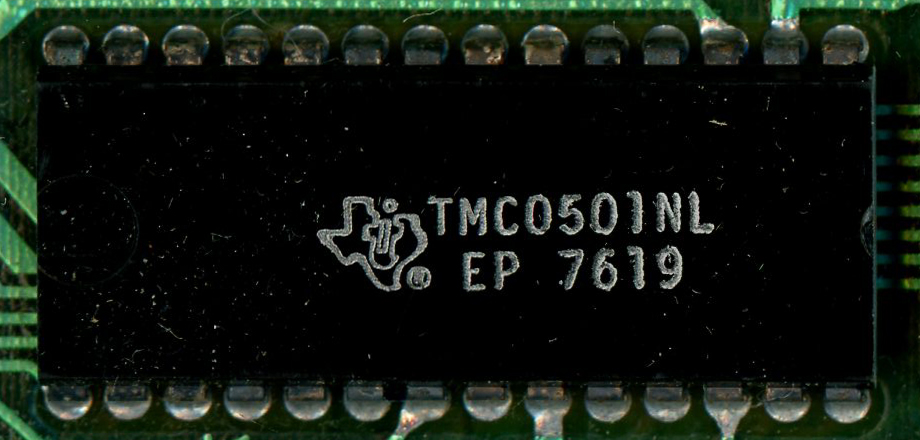

Close-up view of the TMC0501 Arithmetic Chip.

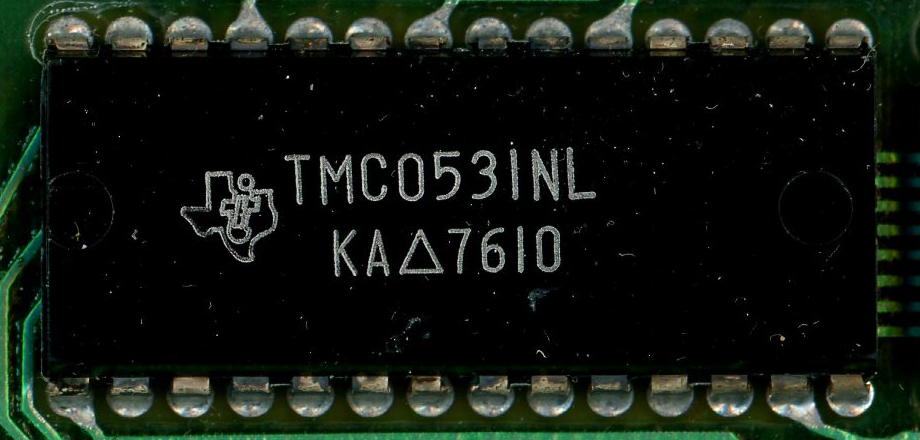

Close-up view of the TMC0531 Scanning and Read-Only Memory Chip.

Close-up view of one of the two SN27882 Display Driver Chips.
