Additional Pictures
|

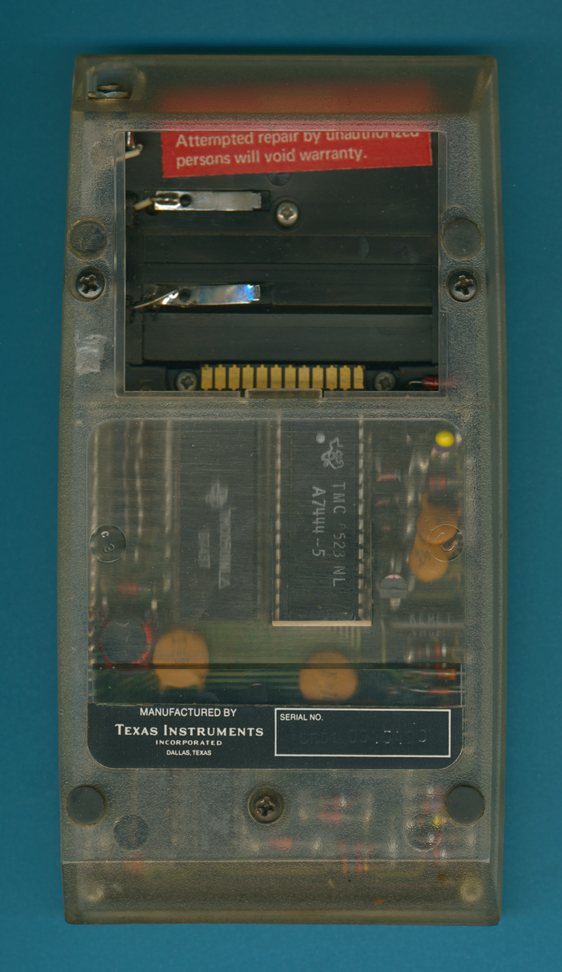

This SR-51 Prototype was manufactured in November 1974 by Texas Instruments.
|

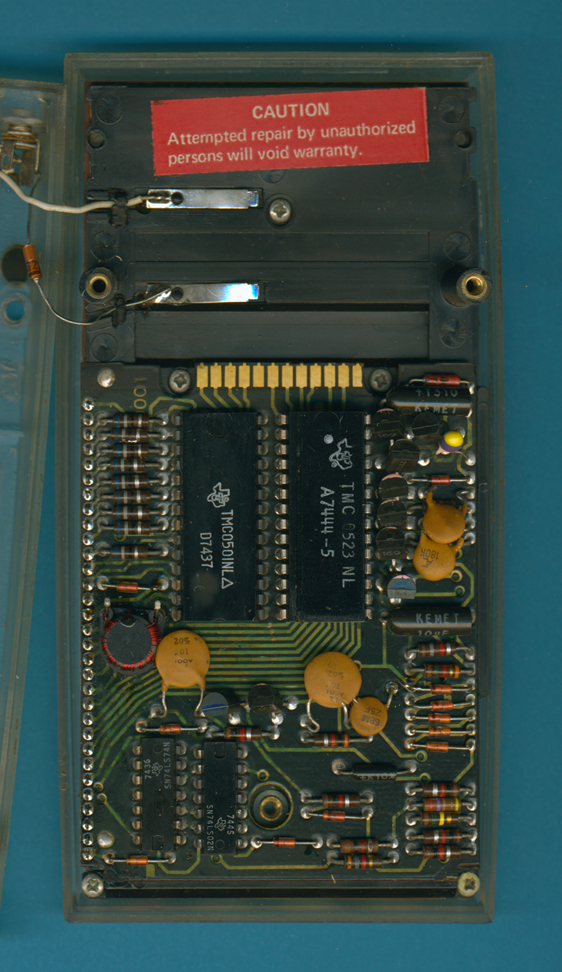

| The Main printed circuit board (PCB) of a SR-51
calculator. The brain of the calculator uses the TMC0501 and a stack of 2 SCOM (TMC0522,523) circuits. A second PCB holds the keys, display and driver circuits.
|

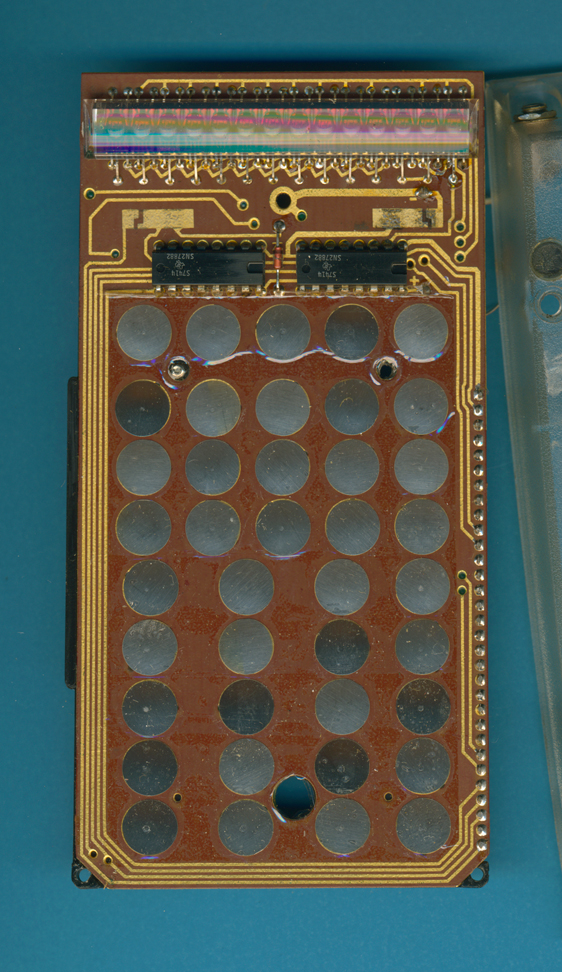

| The Display and Keyboard
PCB of the SR-51 Prototype with two TI SN27882 display drivers and fourteen 7-segment LED-Displays.
|
| The PCB of

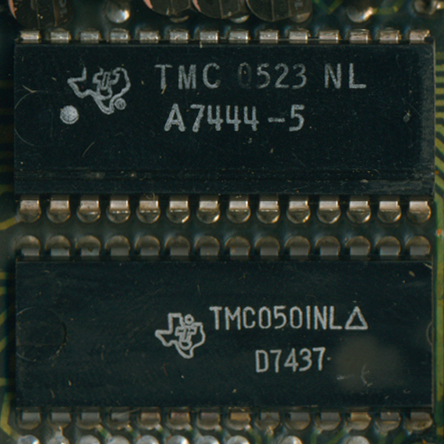

this SR-51 Clear-Case Prototype reveals production codes of week 44 year 1974 on the SCOM chip holding the firmware.
|
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, November 18, 2018. No reprints without written permission.
