Additional Pictures



This Architectural Data Corp Data Dimensioner was manufactured in February 1985.

The company logo.

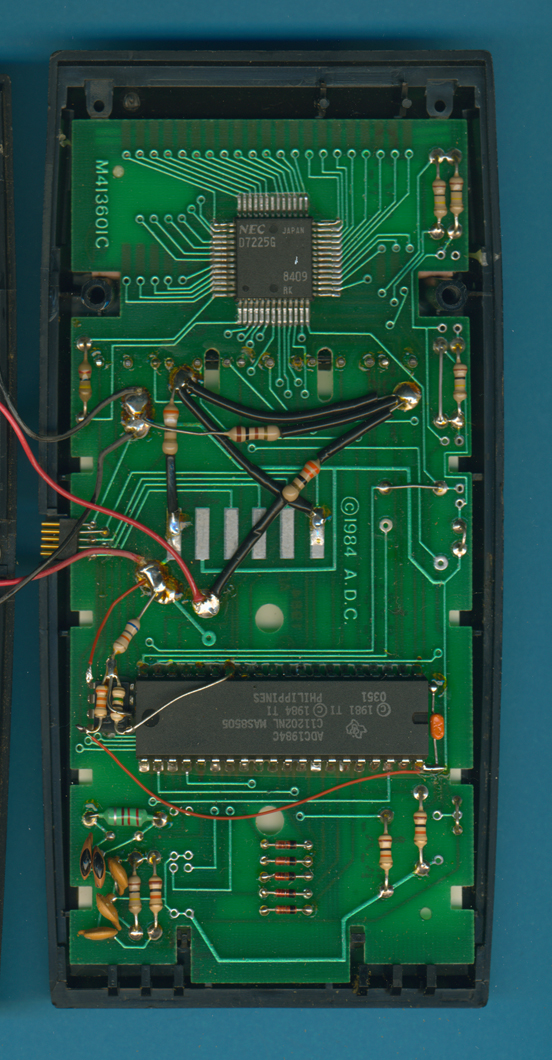

The base calculator of this Data Dimensioner is a
standard TI-58C gutted out completely.

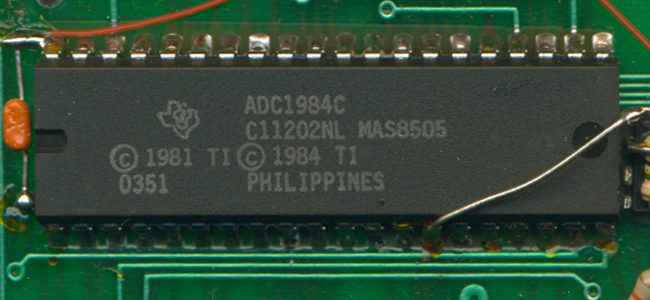

Close-up picture of the ADC1984C microcontroller.

Close-up picture of the uPD7225G LCD driver.

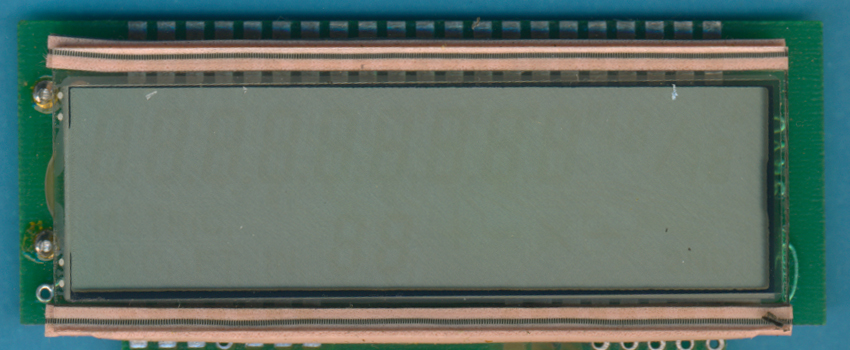

Close-up picture of the alphanumerical LCD.
