Additional Pictures

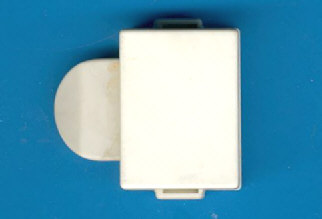

| The first
edition of the Libro Parlante makes use of a small module.
|

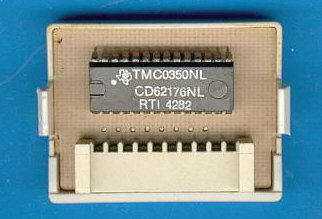

Inside the
module we discover with the TMC0350 (CD62176) a Speech-ROM
|

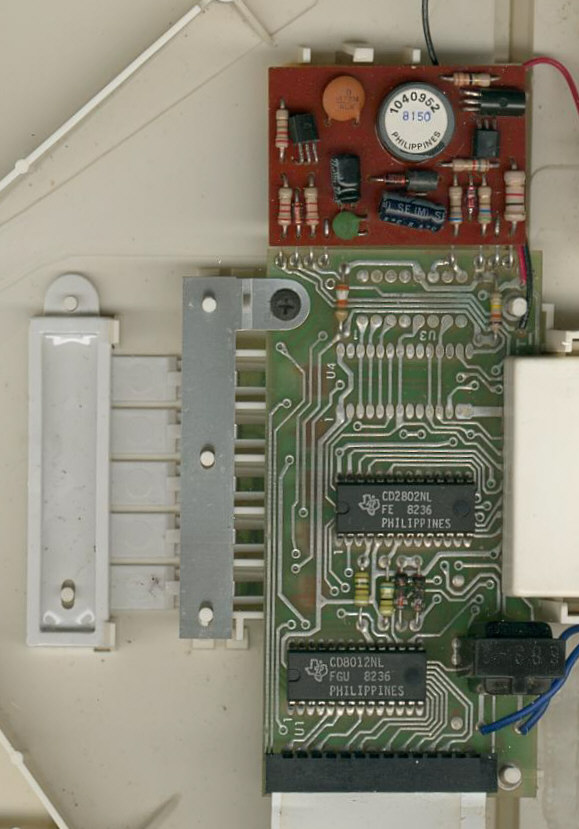

| The printed
circuit board (PCB) of the first Libro Parlante
lacks the Speech-ROM but is otherwise identical with the original Touch & Tell introduced one year earlier.  |
|

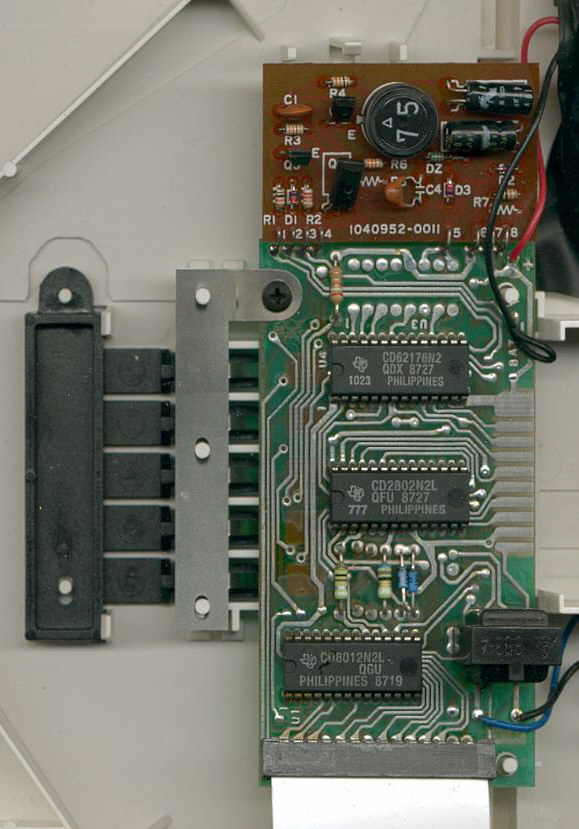

| The final
edition of the Libro Parlante includes the CD62176 Speech-ROM on the main printed circuit board (PCB).
|
|
If you have additions to the above article please email: joerg@datamath.org.
