This Music-Star Prototype was manufactured
in December 1987 by |
|

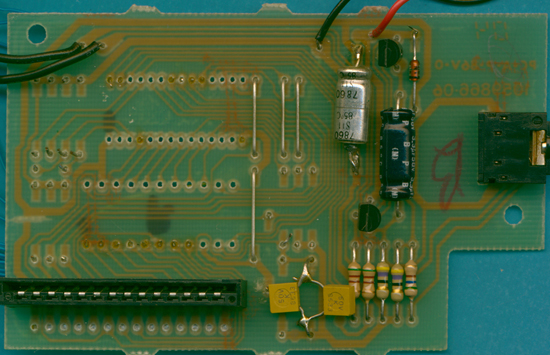

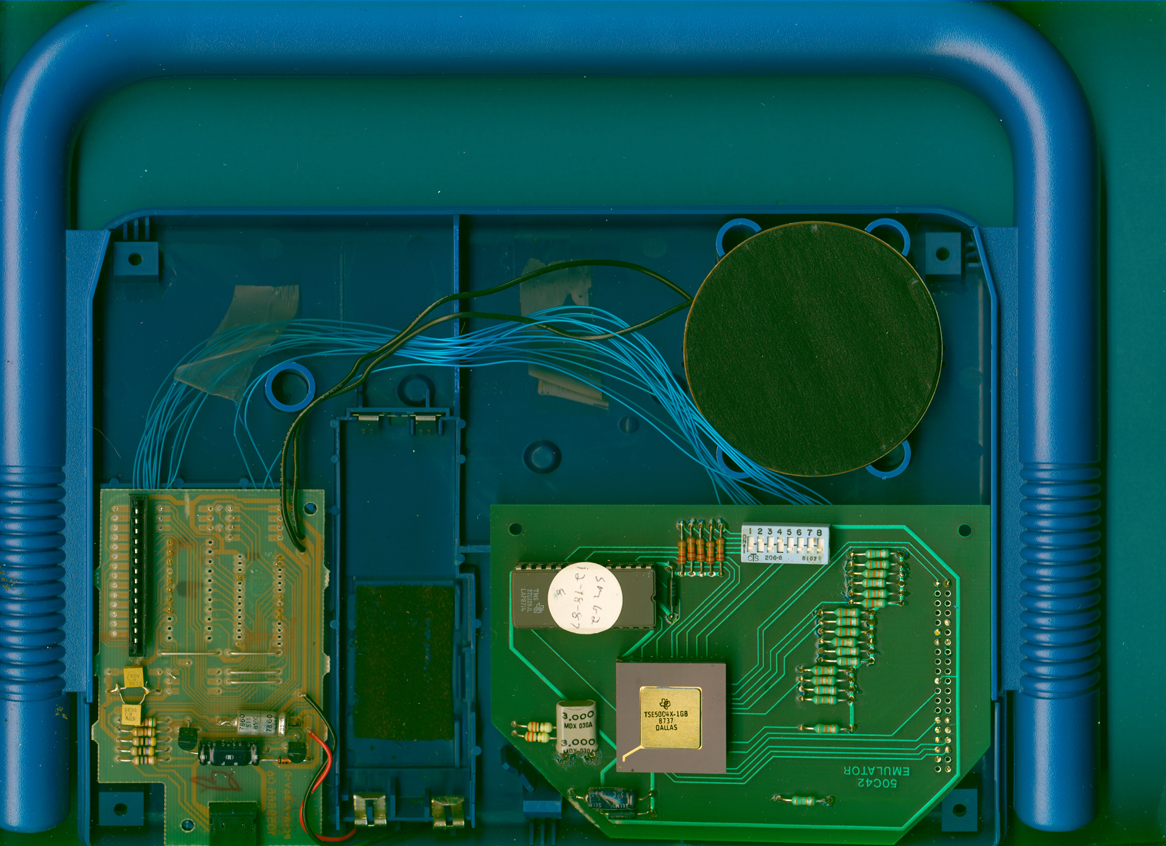

The Main printed circuit board (Main-PCB) of the
Music-Star Prototype looks despite the missing components familiar to us. |
|

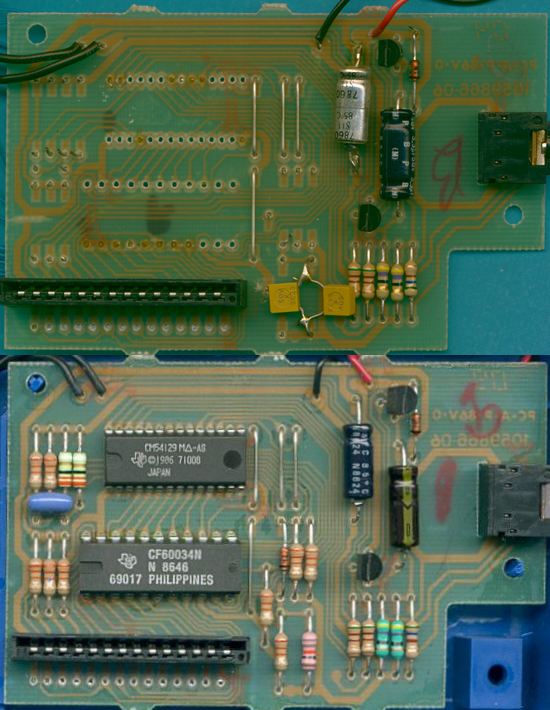

The Main-PCB of the
Music-Star Prototype (top) next to the PCB of a Speak &
Music (bottom) manufactured two years earlier. |
|

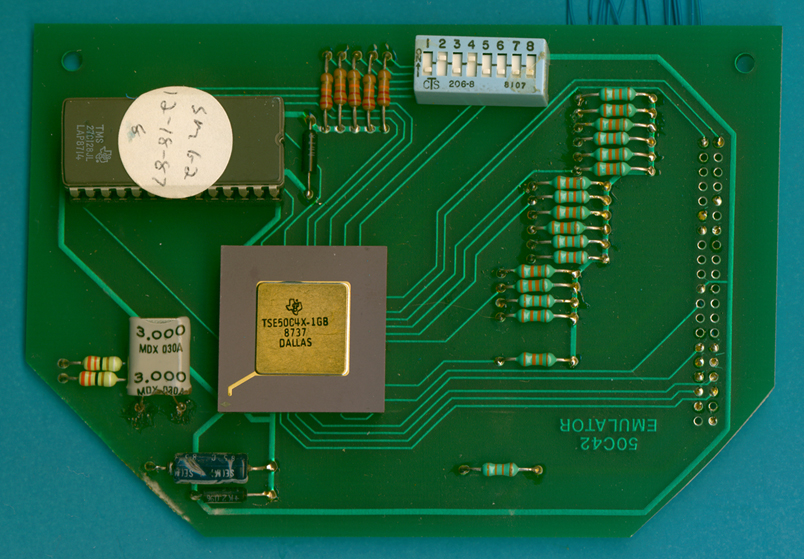

The "50C42
Emulator" PCB used with this Music-Star Prototype
is centered around a Bond-Out TSE50C4X-1GB Voice Synthesis Processor (VSP)
in a large ceramic PGA housing and a TMS27C128 EPROM with 16k Byes
capacity for both program and voice data. |
|
Close-up view of the TSE50C4X-1GB. |
Close-up view of the TMS27C128. |
