Additional Pictures



The Passboard to the World board game in its box.

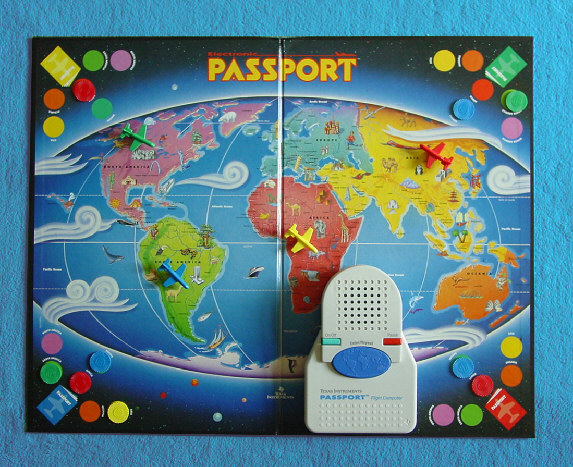

The Passport to the World game ready to play.

This PASSPORT Flight Computer was manufactured in May 1992 by
Texas Instruments in Abilene, TX (Date code USA212A » wk 21 yr 1992).

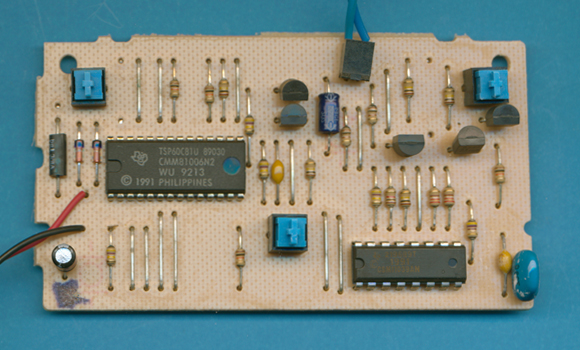

The single-sided printed circuit board (PCB) of the PASSPORT Flight Computer  is centered around a TSP50C11 (CMM11039)
Voice Synthesis Processor (VSP)and supported by a TSP60C81 (CMM81006) Voice Synthesis Memory (VSM) with 1M Bits capacity.

Close-up view of the TSP50C11 (CMM11039).

Close-up view of the TSP60C81 (CMM81006).
