Texas Instruments Speak & Music (UK)
| Date of introduction: | 1986 | Display technology: | |
| New price: | Display size: | n.a. | |
| Size: | 9.1" x 11.1" x
1.2" 231 x 282 x 30 mm3 |
||
| Weight: | 18.2 ounces, 515 grams | Serial No: | |
| Batteries: | 4*AA cells | Date of manufacture: | wk 46 year 1986 |
| AC-Adapter: | Origin of manufacture: | Italy | |
| Precision: | Integrated circuits: | TMP50C40A (CD54149), CF60034 |
|
| Memories: | |||
| Program steps: | Courtesy of: | Joerg Woerner |

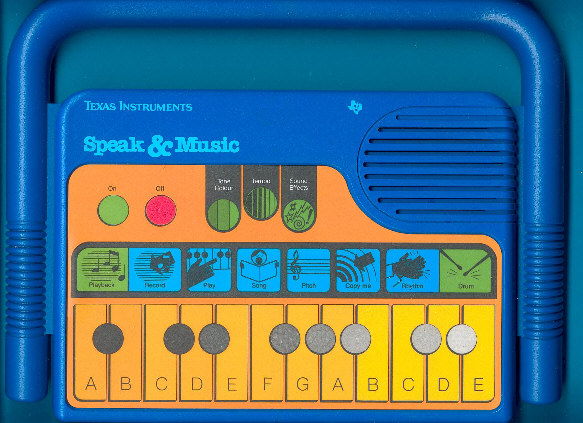

This
Speak & Music was sold in United Kingdom. The faceplate of the educational
toy differs from the original Speak & Music
sold in the United States of America.
It looks to us more like the German Music-Star.
Dismantling this Speak & Music manufactured in November 1986 by Texas Instruments in their Rieti, Italy facility for the British market reveals a compact design centered around just two Integrated Circuits:
|
• TMP50C40A/CD54149: TSP50C50 VSP (Voice Synthesis Processor) with 8-bit microcontroller and Mask ROM for both program and voice • CF60034: Not yet discovered |
If you have additions to the above article please email: joerg@datamath.org.
