Additional Pictures

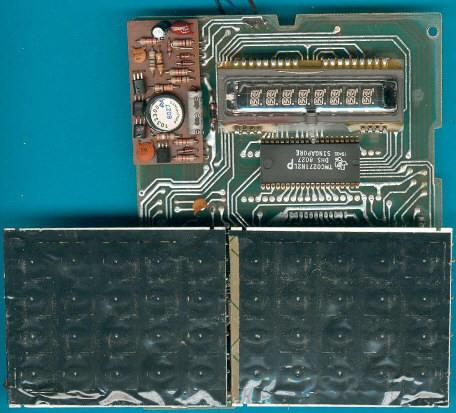

| Speak & Spell, Version 1 Printed Circuit Board with two keyboard panels known from the TI-1200.
|
| Speak & Spell, Version 1 Printed Circuit Board (PCB) without the keyboards. Please note the two Speech ROM's and the housing options of the TMC0271 single-chip microcomputer.
|
| Speak & Spell (English
Voices), Version 1 Please notice the two TMC0350 Speech-ROM's with the CD2303 and CD2304 designation indicating the "Custom Data" of the British English voices.
|
| Speak & Spell, Version 3 Solder side of the Printed Circuit Board.
|
| Speak & Spell, Version 3 Component side of the Printed Circuit Board.
|
| Speak & Spell, Version 3 Parts assembled on the Printed Circuit Board.
|
