Additional Pictures

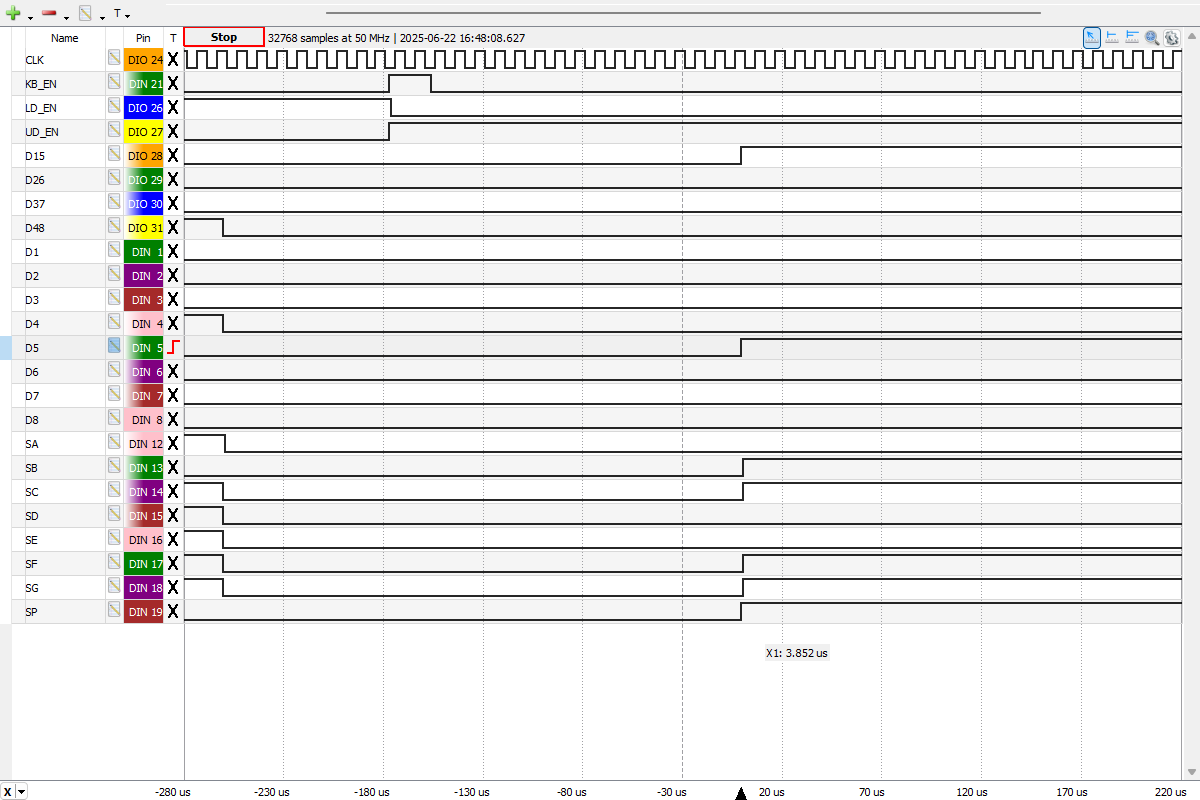

| Keyboard Scanning
Pulse to D5 Display Output transition of the C-500 from a Litton Royal
RC 80 manufactured in January 1973 while displaying "-104.6790" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. C-500 Clock Frequency at 100 kHz.  |

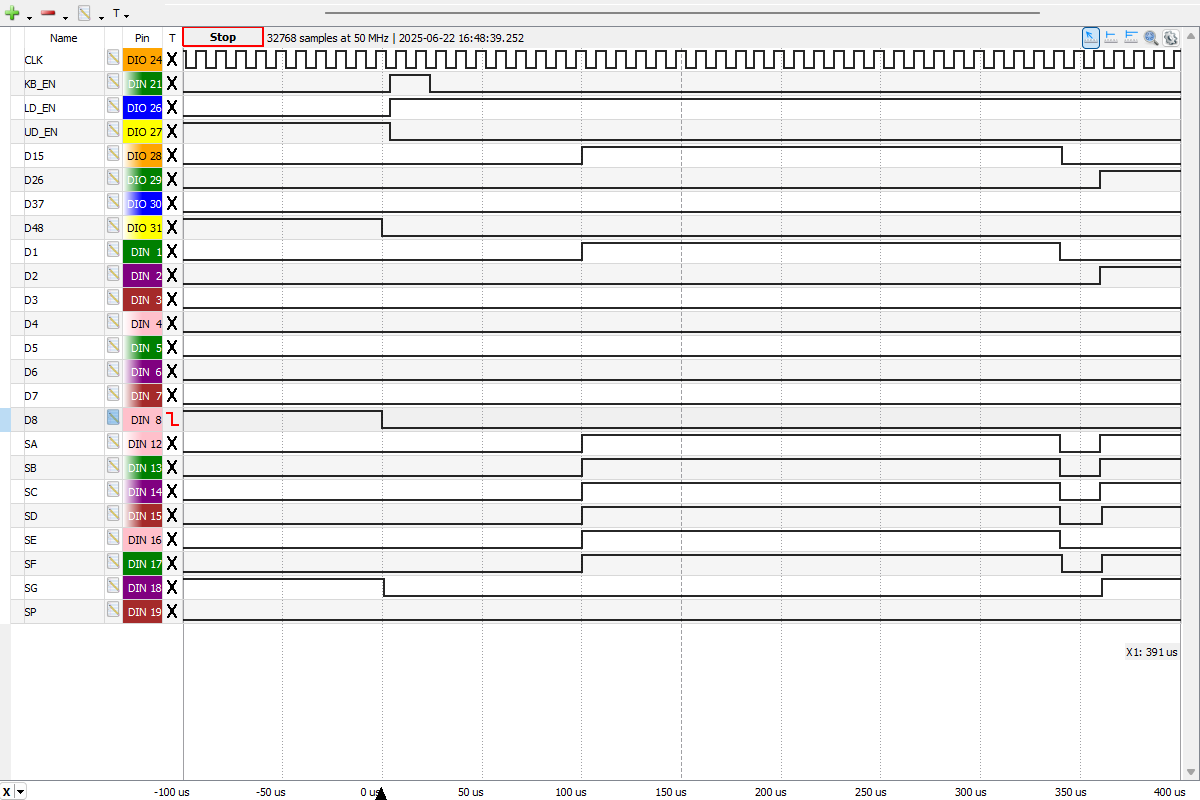

| D8 Display Output
to Keyboard Scanning Pulse transition of the C-500 from a Litton Royal
RC 80 manufactured in January 1973 while displaying "-104.6790" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. C-500 Clock Frequency at 100 kHz.  |

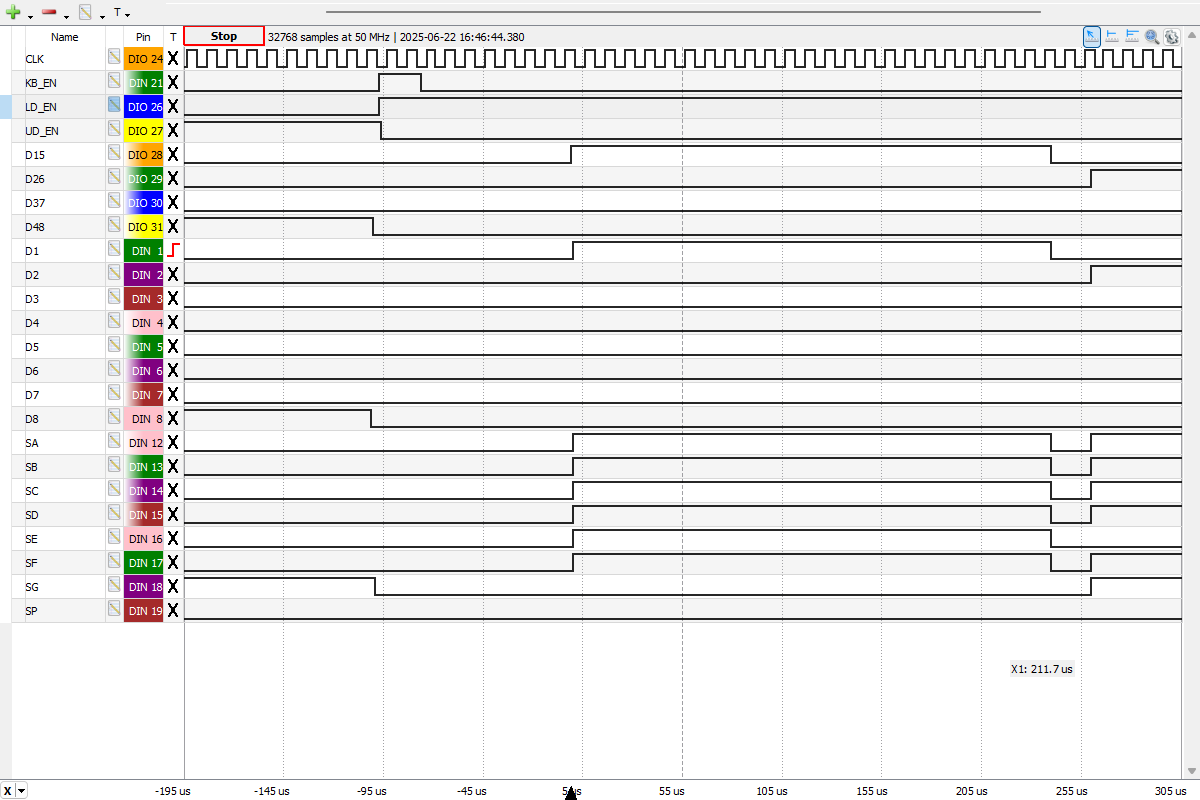

| Keyboard Scanning
Pulse to D1 Display Output transition of the C-500 from a Litton Royal
RC 80 manufactured in January 1973 while displaying "-104.6790" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. C-500 Clock Frequency at 100 kHz.  |

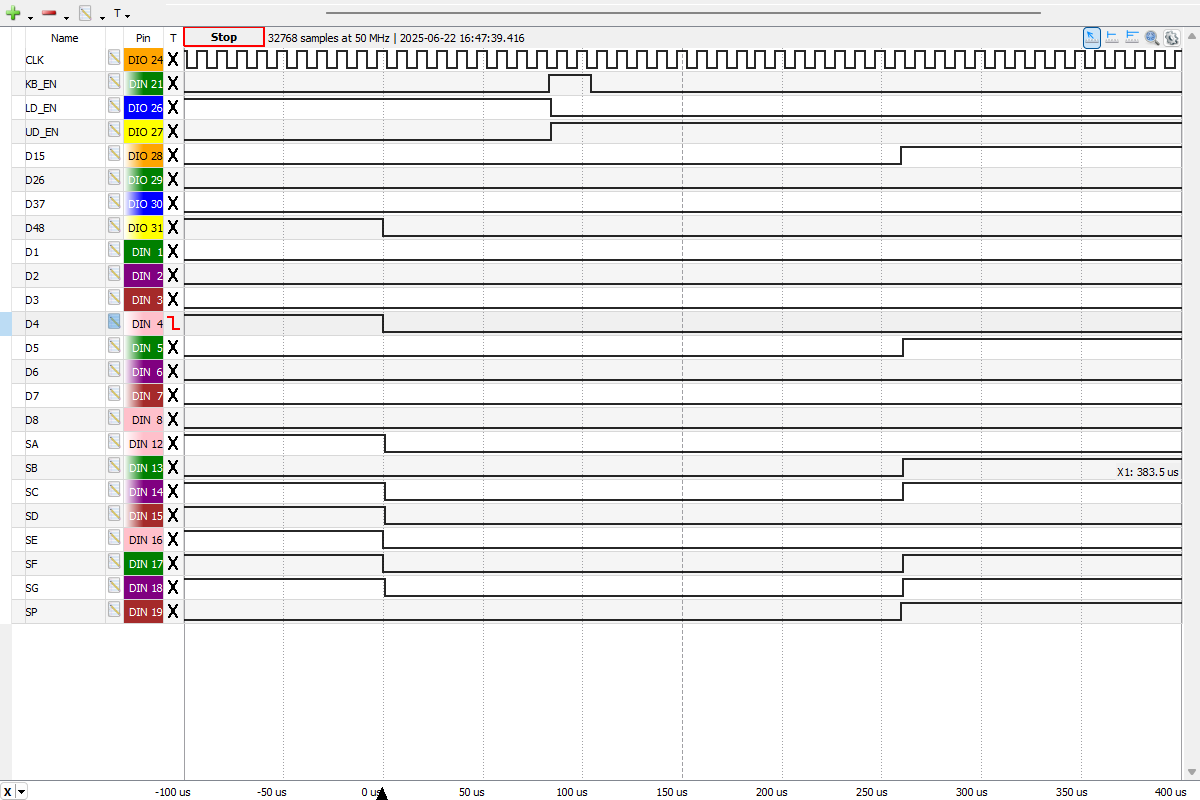

| D4 Display Output
to Keyboard Scanning Pulse transition of the C-500 from a Litton Royal
RC 80 manufactured in January 1973 while displaying "-104.6790" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. C-500 Clock Frequency at 100 kHz.  |
