| Keyboard Scanning
Pulse to D5 Display Output transition of the C-550 from an Interton PC
2008 (Version 2) manufactured in July 1973 while displaying "-104.6790" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. C-550 Clock Frequency at 100 kHz.  |

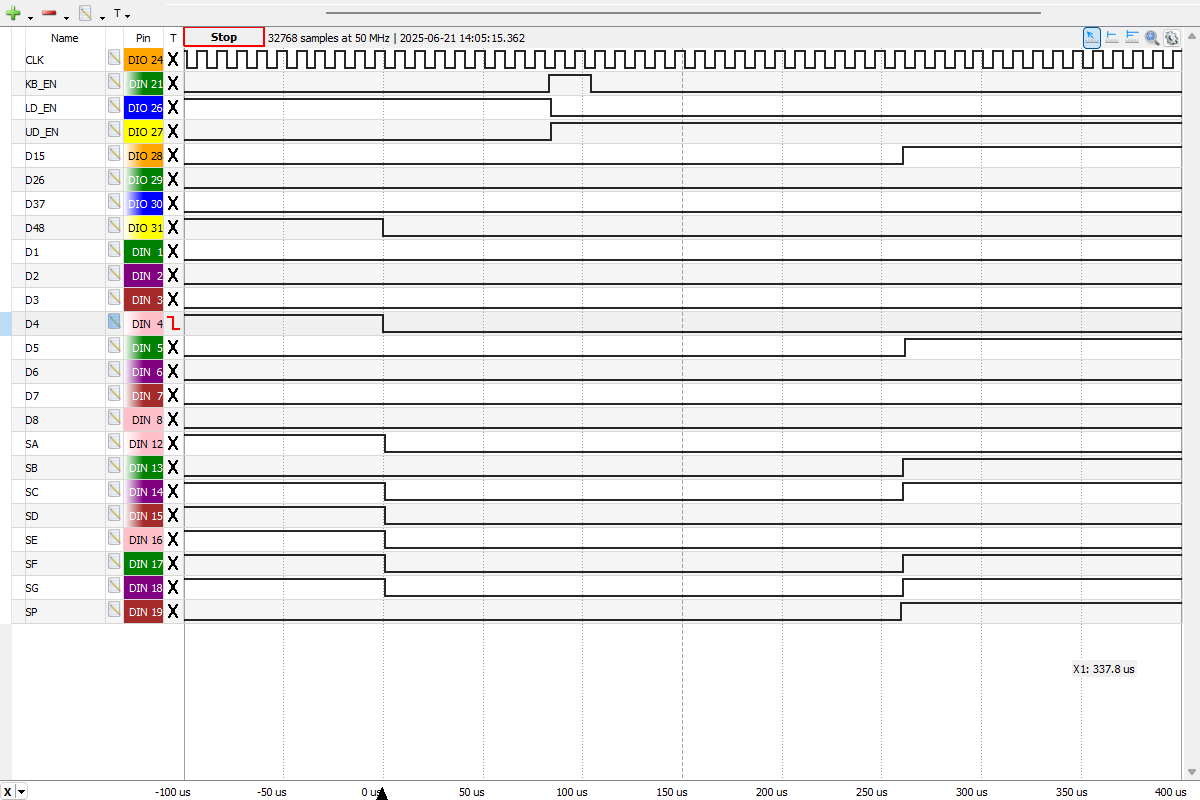

| D8 Display Output
to Keyboard Scanning Pulse transition of the C-550 from an Interton PC
2008 (Version 2) manufactured in July 1973 while displaying "-104.6790" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. C-550 Clock Frequency at 100 kHz.  |
| Keyboard Scanning
Pulse to D1 Display Output transition of the C-550 from an Interton PC
2008 (Version 2) manufactured in July 1973 while displaying "-104.6790" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. C-550 Clock Frequency at 100 kHz.  |
| D4 Display Output
to Keyboard Scanning Pulse transition of the C-550 from an Interton PC
2008 (Version 2) manufactured in July 1973 while displaying "-104.6790" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. C-550 Clock Frequency at 100 kHz.  |
