Probing a GI 250

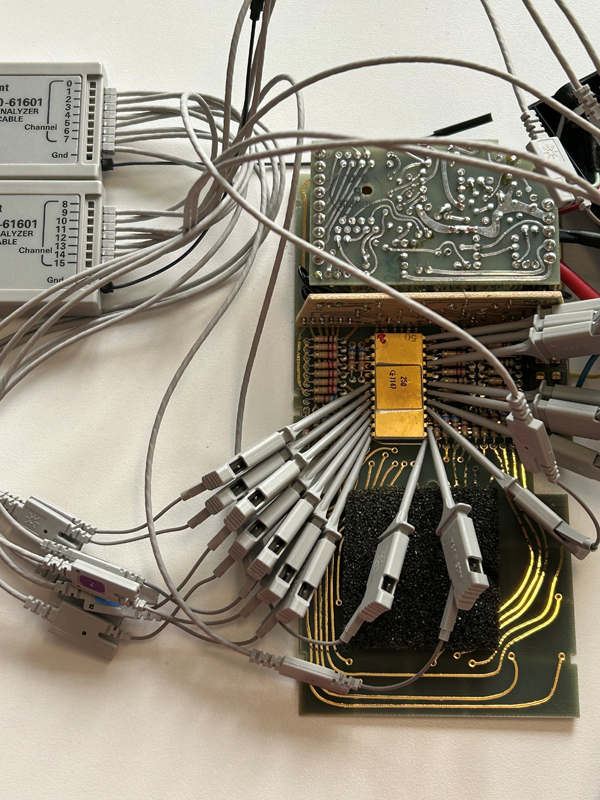

Chip of a Litton Royal Digit III calculator. |

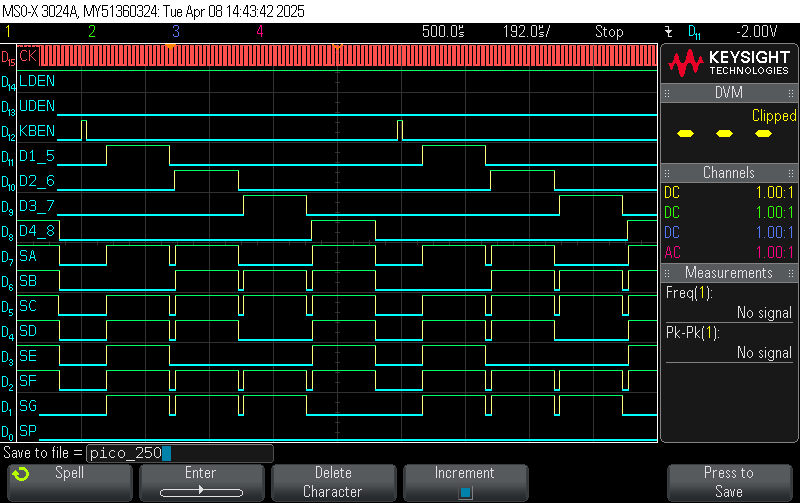

Observed signals
of the GI 250 singe-chip calculator circuit outputting one 4-digit group
of its 8-digit display register. |
Probing a GI 251

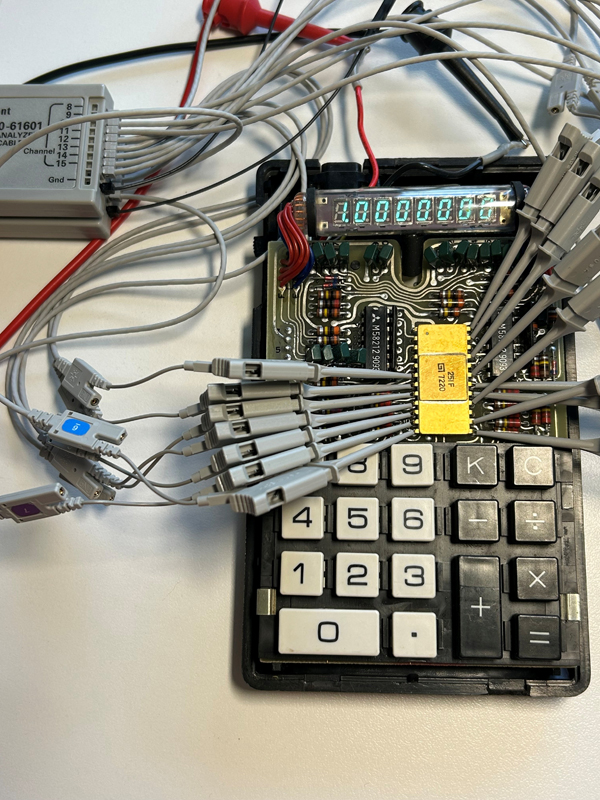

Chip of a Litton Royal Digit VI calculator. |

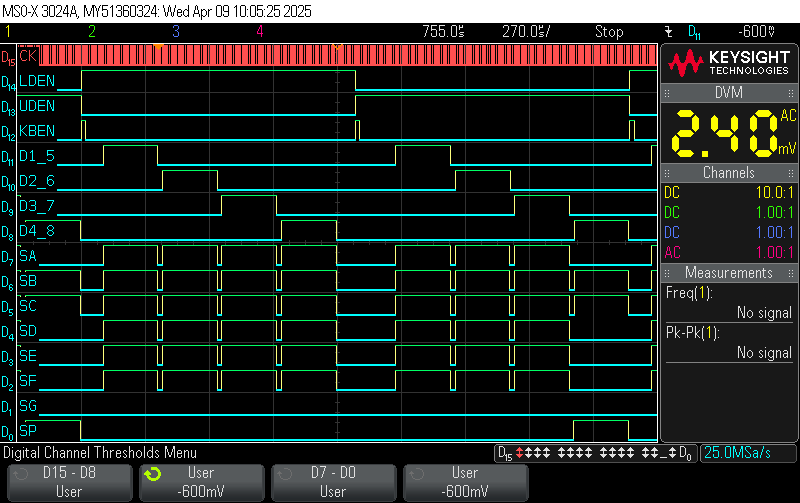

Observed signals
of the GI 251 singe-chip calculator circuit alternating two 4-digit groups
of its 8-digit display register. |
