Understanding the TMS0800
Test Circuitry. |
Reading ROM

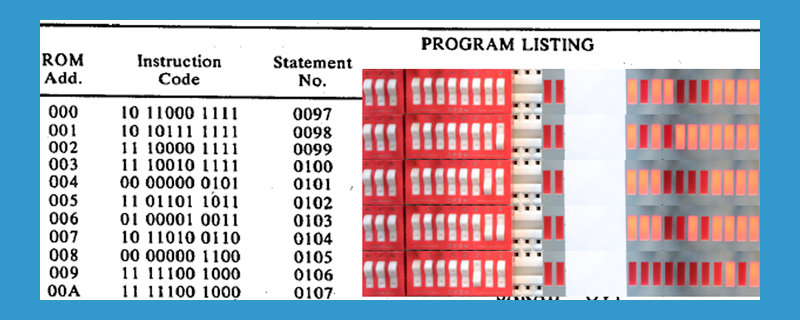

Address 0b000000000 of a TMS0801 Device-under-Test yielding 0b10110001111. |
| ROM Addresses 000 to 004
visually compared with the Patent Application of the
TMS0800.
|

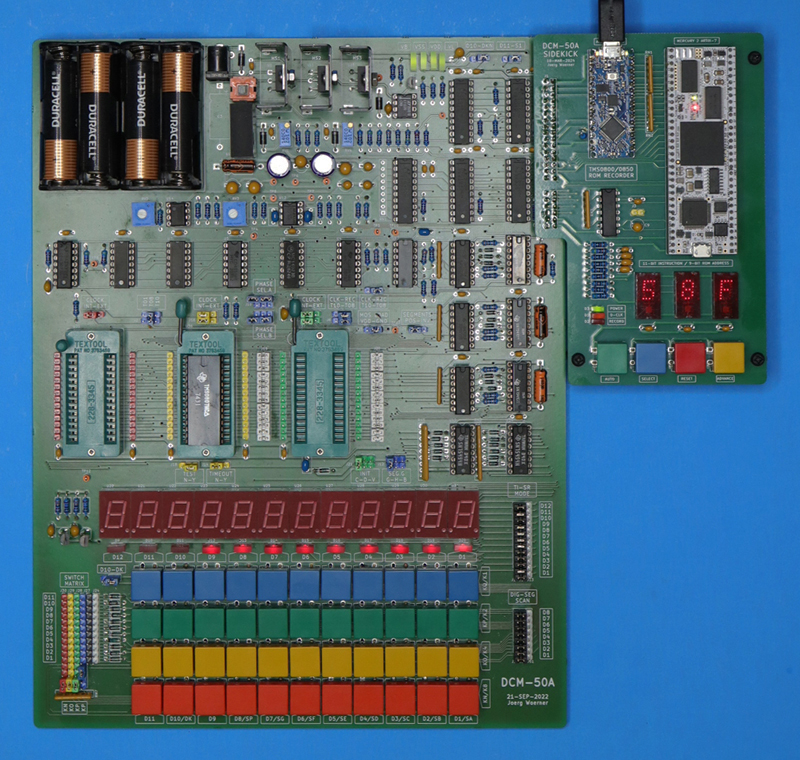

DCM-50A Sidekick TMS0800
ROM Recorder in Action. |
