Additional Pictures

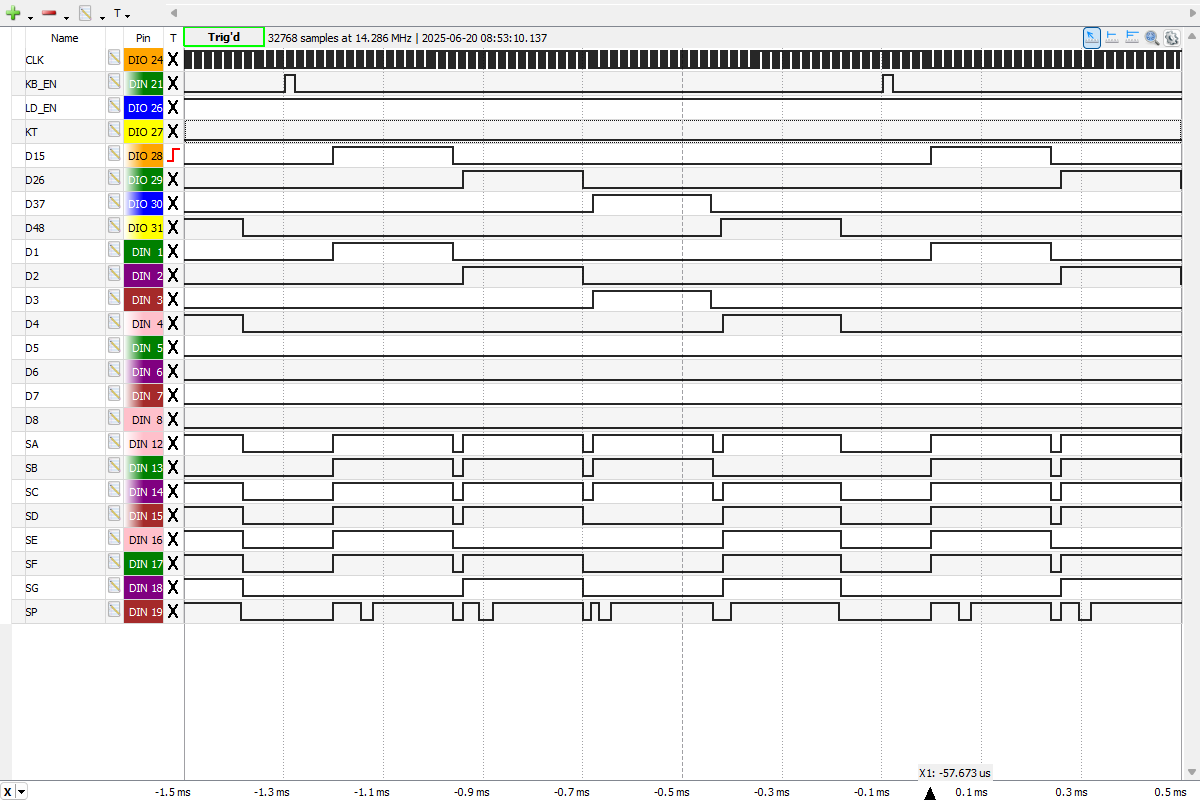

Complete Display and Keyboard Scanning Cycle of the GI 250 from a Litton Royal Digital III manufactured in March 1972 displaying "-104."
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. GI 250 Clock Frequency at 100 kHz.

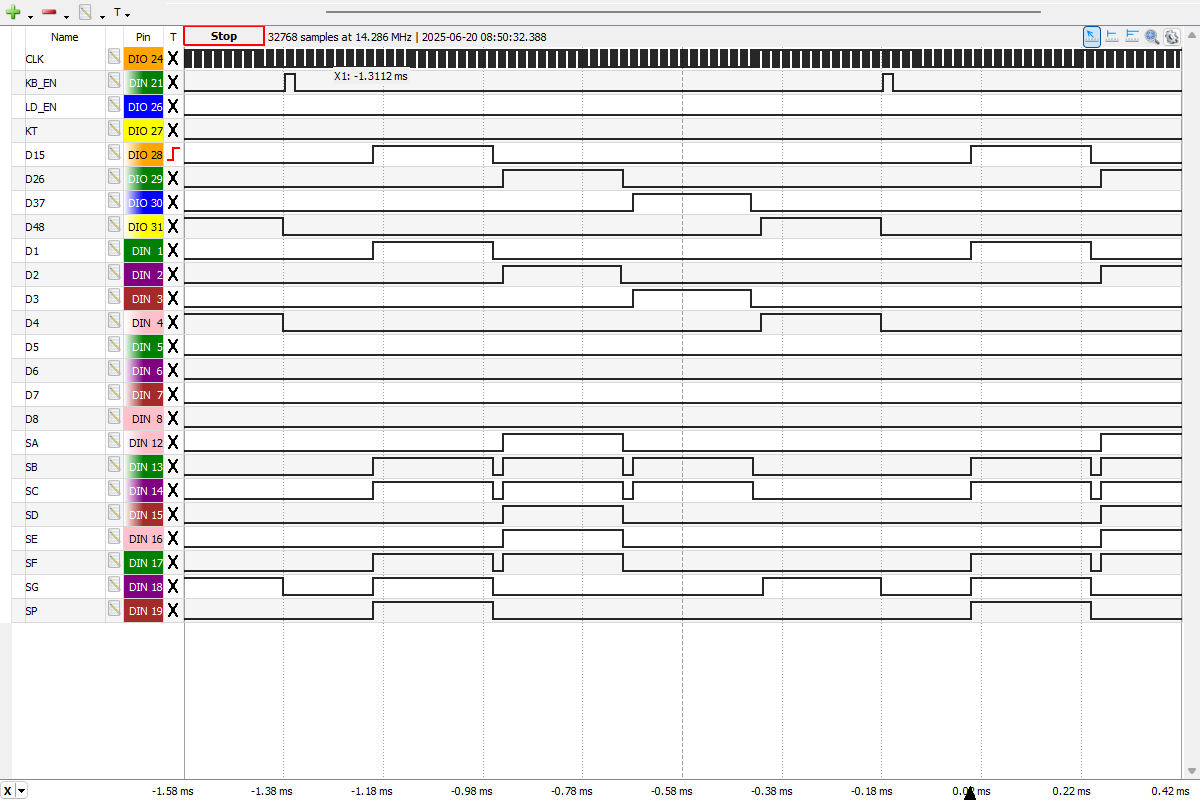

Complete Display and Keyboard Scanning Cycle of the GI 250 from a Litton Royal Digital III manufactured in March 1972 displaying "6.7.9.0."
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. GI 250 Clock Frequency at 100 kHz.

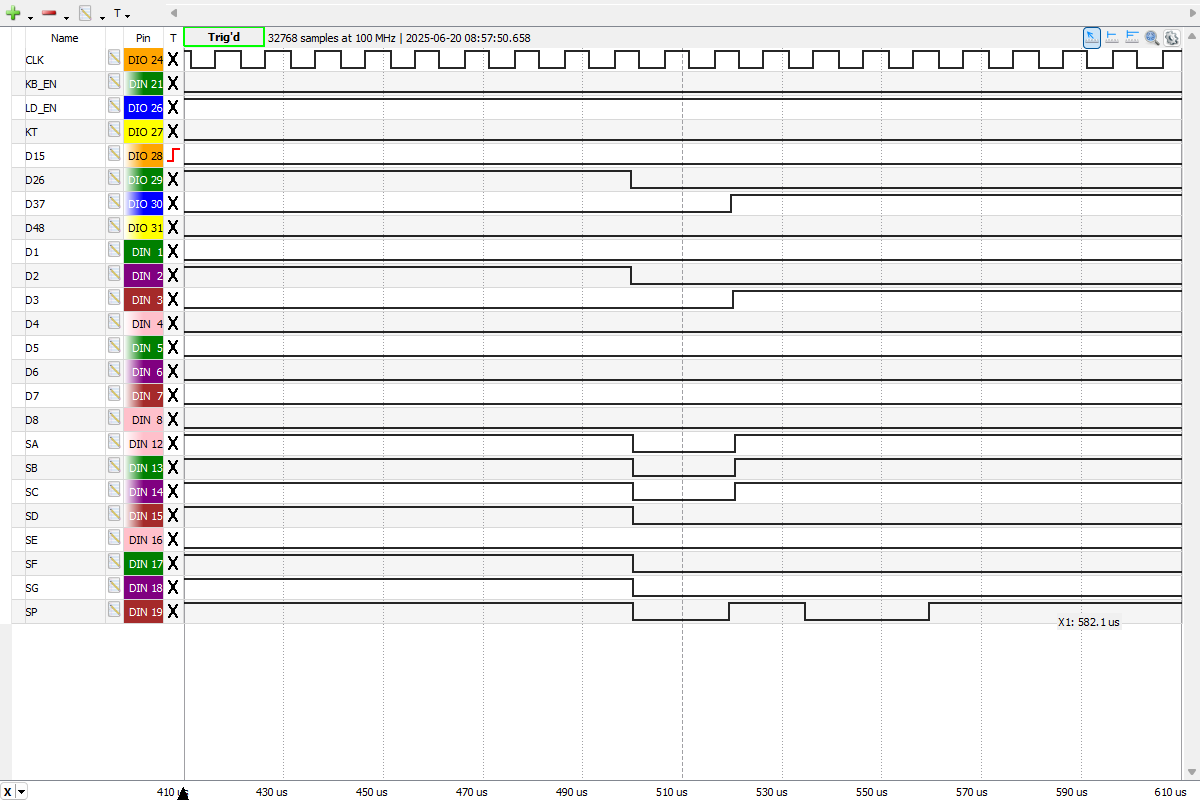

Close-up view of the transition between Digit D2 displaying "9." and Digit D3 displaying "7." of the GI 250 showing the Leading and Trailing Digit Blanking Times.
