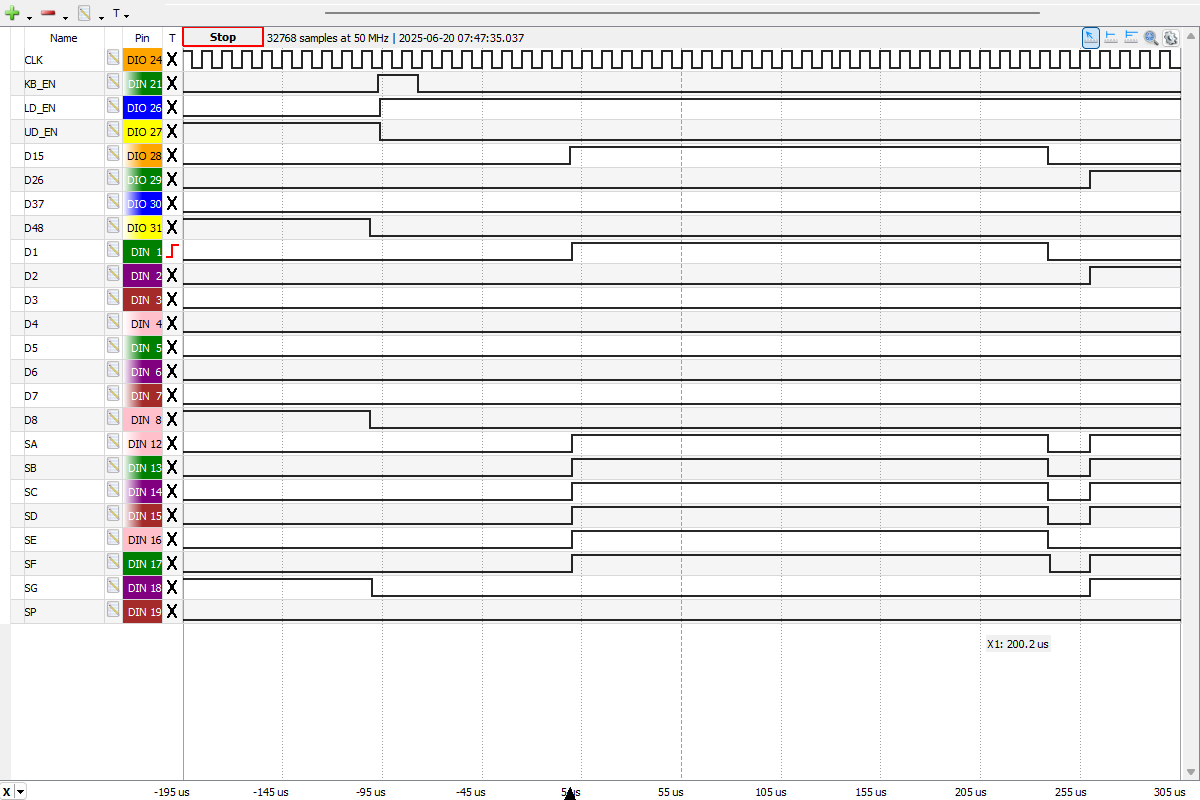

| Keyboard Scanning
Pulse to D5 Display Output transition of the GI 251F from a Litton Royal
Digital V manufactured in May 1972 while displaying "-104.6790" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. GI 251F Clock Frequency at 100 kHz.  |

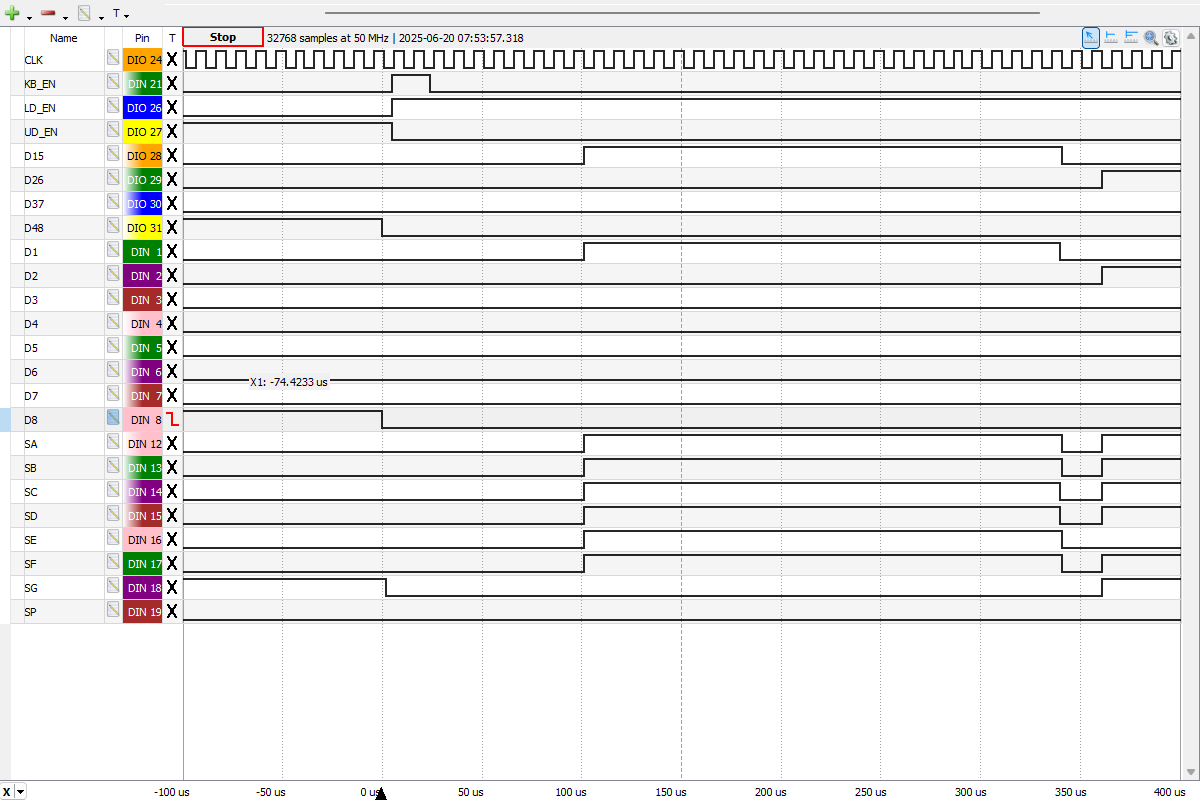

| D8 Display Output
to Keyboard Scanning Pulse transition of the GI 251F from a Litton Royal
Digital V manufactured in May 1972 while displaying "-104.6790" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. GI 251F Clock Frequency at 100 kHz.  |

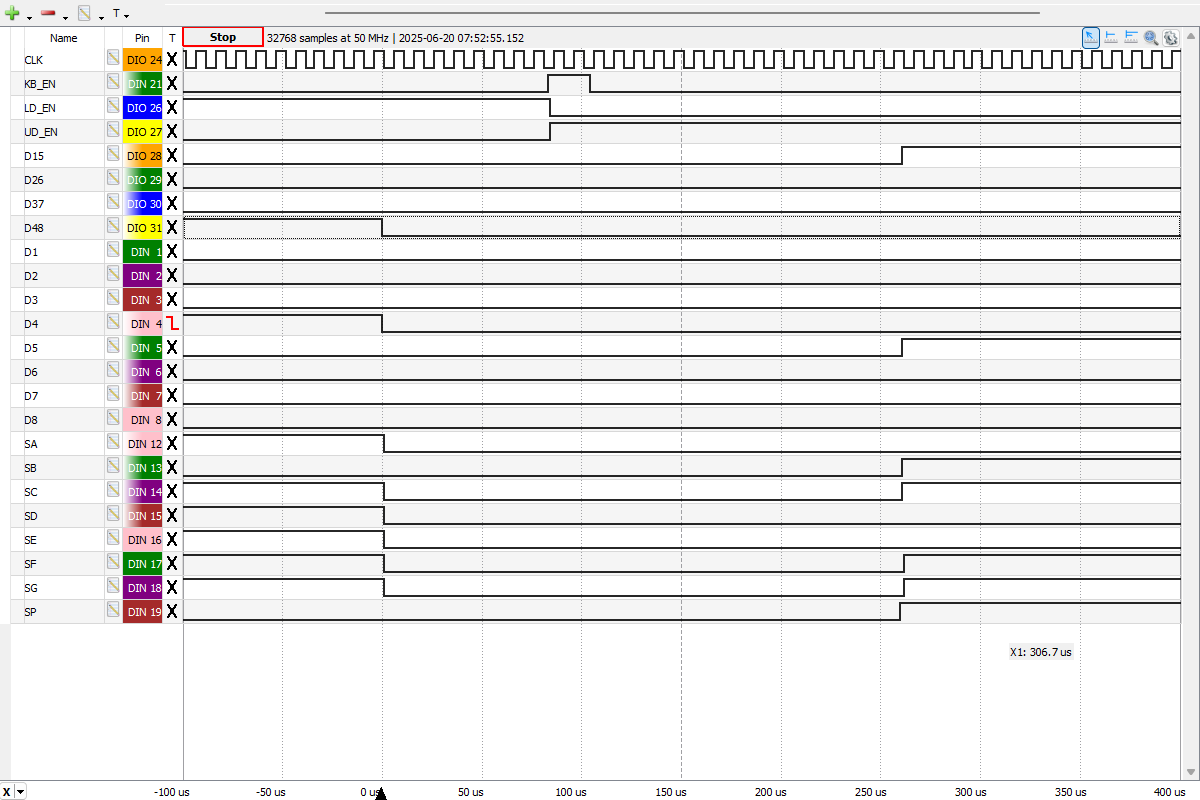

| Keyboard Scanning
Pulse to D1 Display Output transition of the GI 251F from a Litton Royal
Digital V manufactured in May 1972 while displaying "-104.6790" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. GI 251F Clock Frequency at 100 kHz.  |

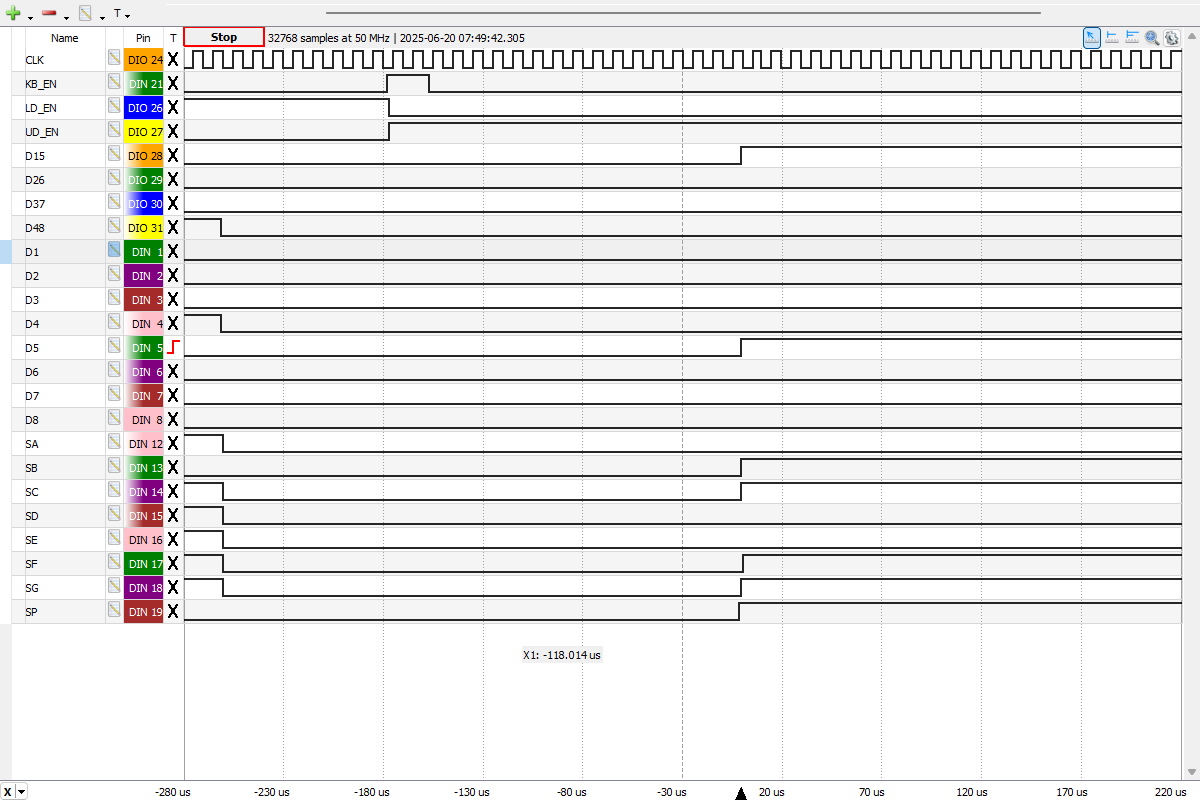

| D4 Display Output
to Keyboard Scanning Pulse transition of the GI 251F from a Litton Royal
Digital V manufactured in May 1972 while displaying "-104.6790" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. GI 251F Clock Frequency at 100 kHz.  |
