Additional Pictures

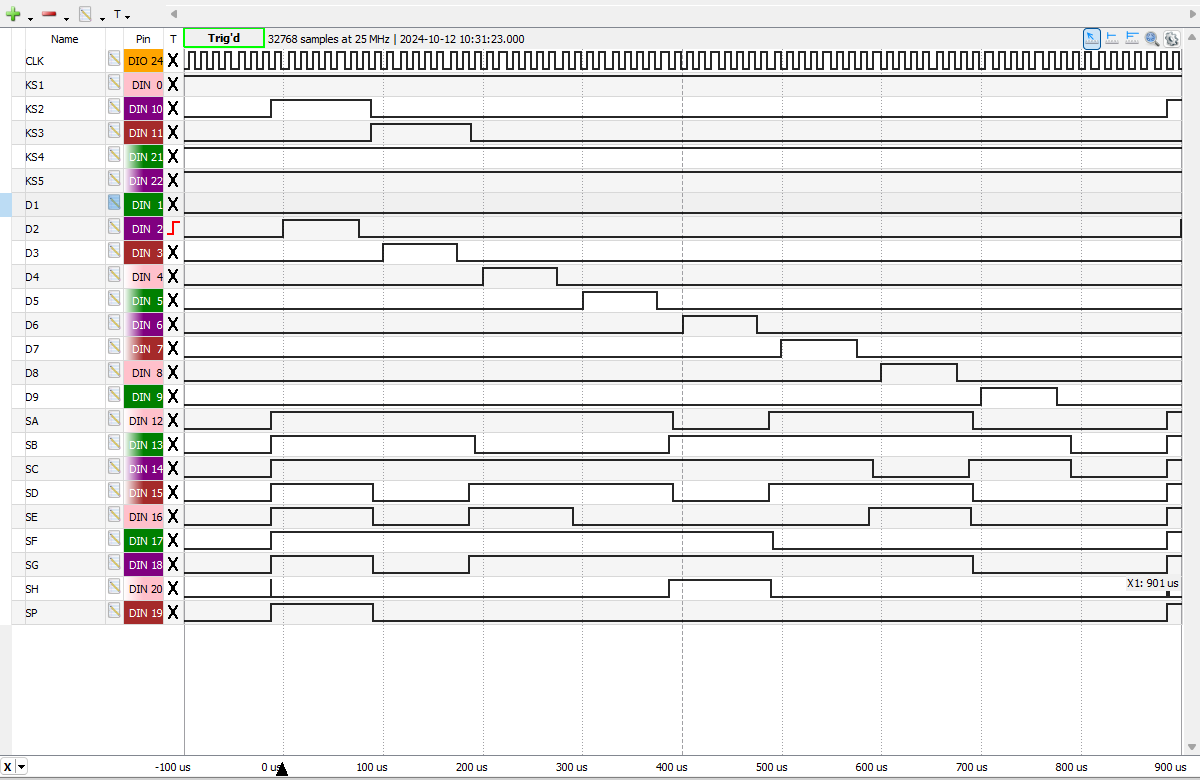

| Complete Display
and Keyboard Scanning Cycle of the HD3633 from a Lloyd's Accumatic 30
manufactured in February 1975 displaying "12345678." and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. HD3633 Clock Frequency at 80 kHz.  |

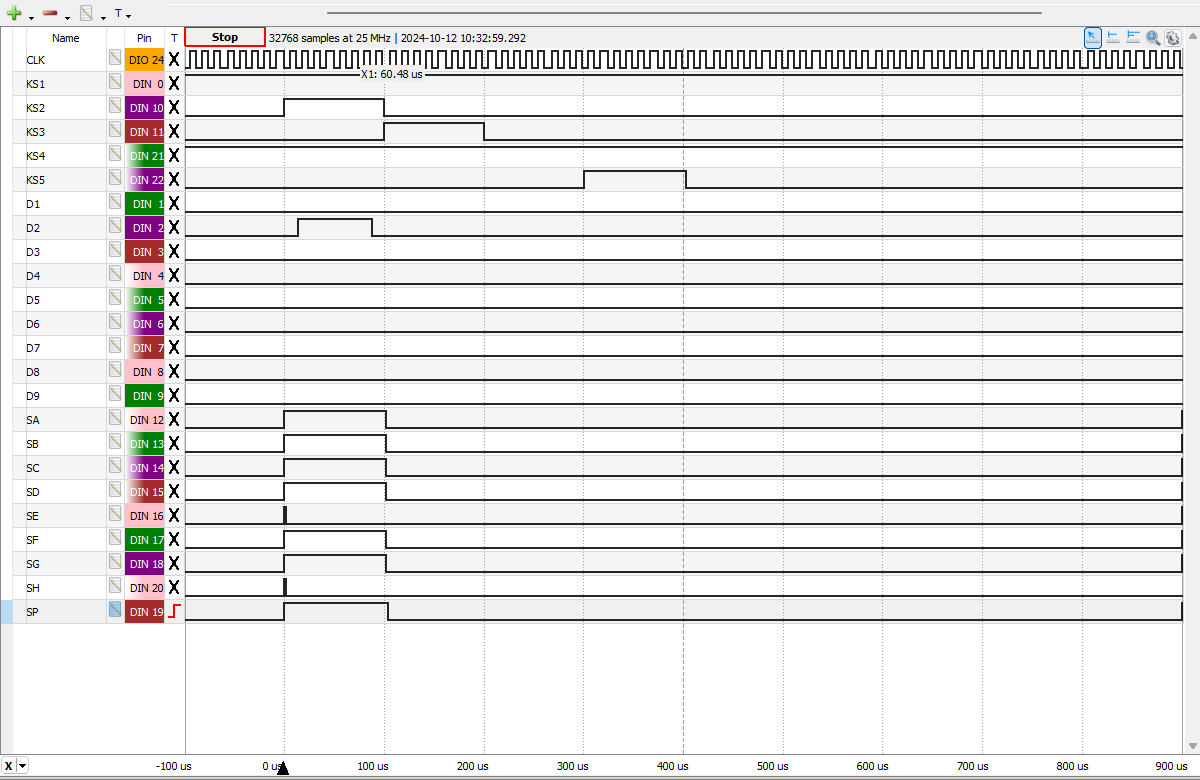

| Complete Display
and Keyboard Scanning Cycle of the HD3633 from a Lloyd's Accumatic 30
manufactured in February 1975 pressing the [=] key (KS5#K1) while displaying "9." and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. HD3633 Clock Frequency at 80 kHz.  |
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, November 12, 2024. No reprints without written permission.
