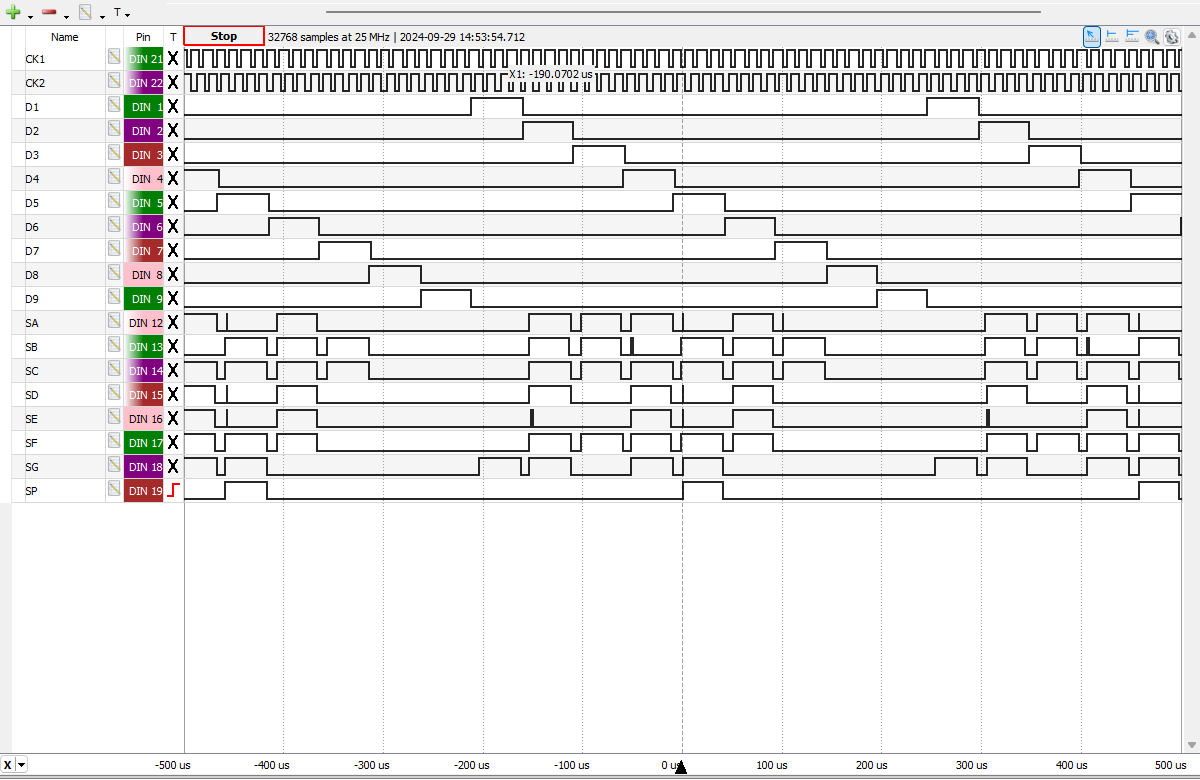

Complete Display Scanning Cycle of the LI2002 from a Lloyd's Accumatic 30 manufactured in August 1974 displaying "-104.679"
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. LI2002 Clock Frequency at 80 kHz.

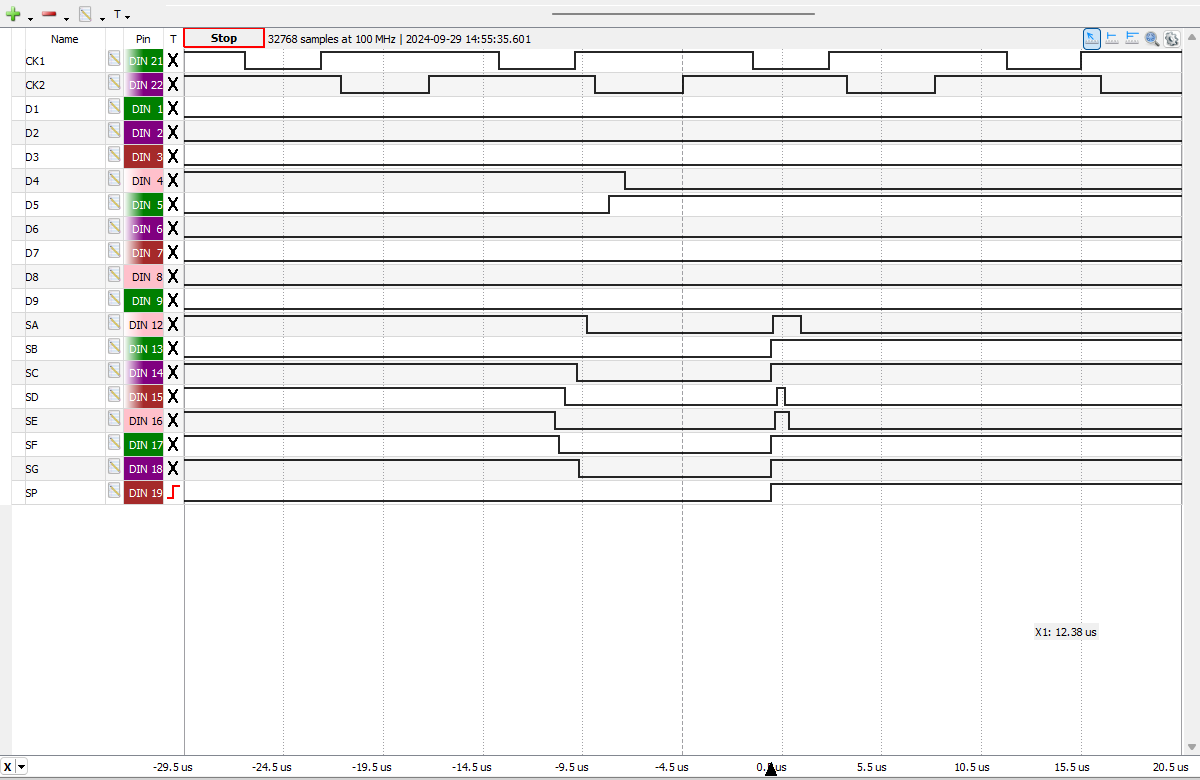

Close-up view of the transition between Digit D4 displaying "6" and Digit D5 displaying "4" of the LI2002 showing the Leading and Trailing Segment Blanking Times.
