Additional Pictures

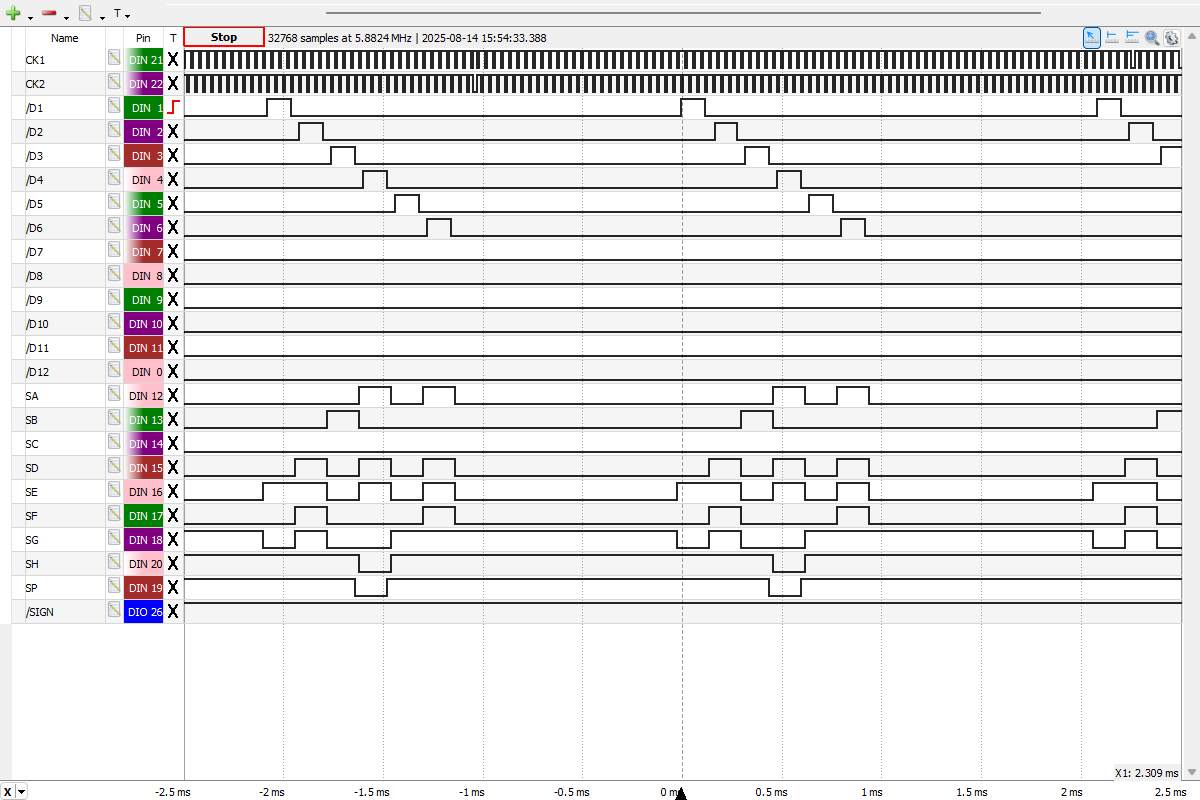

| Complete Display and Keyboard
Scanning Cycle of the MK5010 from a Rapid Data
Rapidman 800 manufactured in December 1972 displaying
"-104.679" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. MK5010 Clock Frequency at 25 kHz.  |

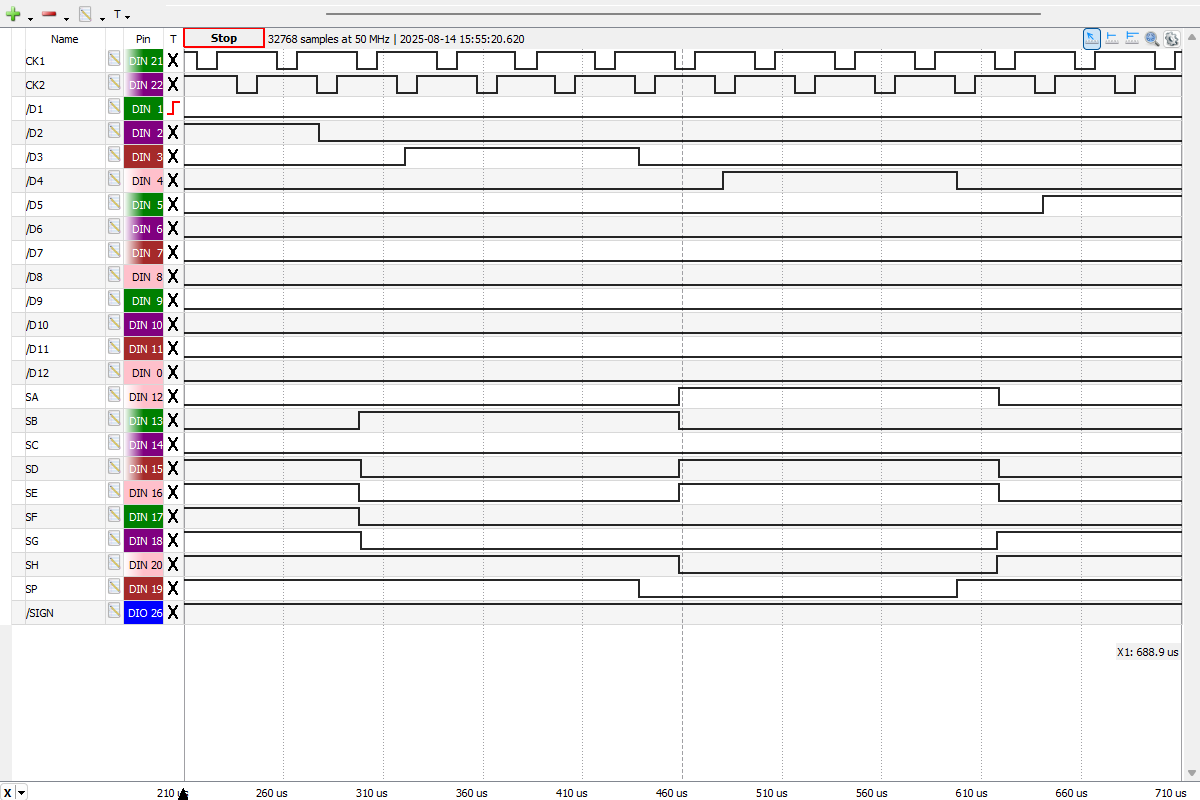

| Close-up view of the
transition between Digit D3 displaying "6" and Digit D4 displaying "4" of the
MK5010 showing the Leading and Trailing Digit
Blanking Times.
|
